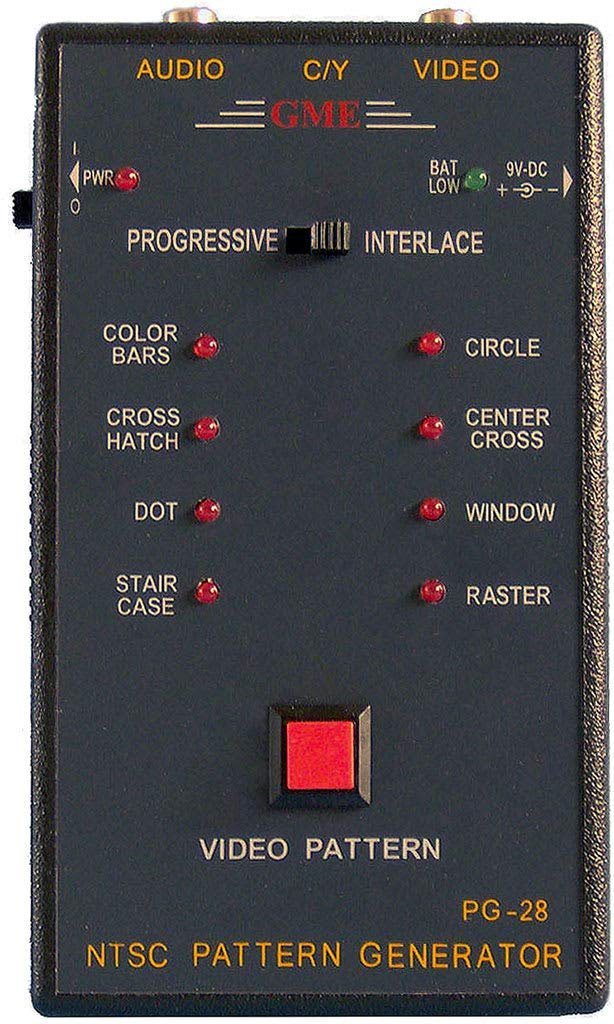

GME PG-28 Portable Video Test Pattern Generator for TV and NTSC Monitor, Designed and Engineered in The USA

Description

• TEST, CALIBRATE, SERVICE, TROUBLESHOOT TV AND NTSC MONITOR Handheld video test pattern generator that generates a wide variety of test patterns for comprehensive testing, calibration, and repair of TV, NTSC monitor, and other video equipment
• WIDE SELECTION OF TEST PATTERNS 8 commonly used video test patterns including COLOR BARS, CROSS HATCH, DOT, STAIRCASE, CIRCLE, CENTER CROSS, WINDOW, and RASTER (choose from White, Yellow, Cyan, Green, Magenta, Red, Blue, and Black)
• VERSATILE AND INTELLIGENT DESIGN Microprocessor generated and controlled accurate video outputs; single push button selectable patterns with hold down reverse
• EASY TO USE, LIGHTWEIGHT, PORTABLE, AND AFFORDABLE DESIGN Delivers the quality and functionality of an expensive high end NTSC pattern generator at fraction of the cost; AC adaptor operation or standard 9V battery operation; Ideal for on-the-bench and in-the-field testing
• DESIGNED AND ENGINEERED IN THE USADesigned in the USA; Peace of mind support and warranty in the USA

Model PG-28 is an easy-to-use handheld video pattern generator for comprehensive testing, calibration, and repair of television, NTSC monitor, and other video equipment. The PG-28 delivers the quality and functionality you would expect from an expensive high end NTSC pattern generator at a fraction of the price. With its easy to understand interface, the PG-28 is designed to meet the need of users from all levels ranging from novice to video professionals.

Features:
- 8 commonly used video test patterns including COLOR BARS, CROSS HATCH, DOT, STAIRCASE, CIRCLE, CENTER CROSS, WINDOW, and RASTER (choose from White, Yellow, Cyan, Green, Magenta, Red, Blue, and Black)
- Single push button selectable test patterns with hold down reverse
-Selectable progressive and interlace scanning system
- Two separate TV Testing connectors: composite video, s-video
- 1kHz audio test tone for audio troubleshooting
- AC adaptor power source or standard 9v battery operation with battery low indicator
- Ideal for on-the-bench and in-the-field testing
- Easy to use, lightweight, and portable

Technical Specifications:

- SCANNING SYSTEM: Interlace and Progressive
- COMPOSITE VIDEO: 1.0V p-p into 75 Ohms
- S-VIDEO:
Chrominance output: 0.6Vp-p into 75 ohms
Luminance plus Sync Output: 0.8Vp-p into 75 Ohms
- Sound: 1 KHz audio tone
- Power: External AC adapter or standard 9V battery
- Dimensions: 5.7(H) x 3.8(W) x 1.5(D)
- Weight: 0.8 lb

Package Contents:
- One (1) - PG-28 Video Test Pattern Generator
- One (1) - User Manual
