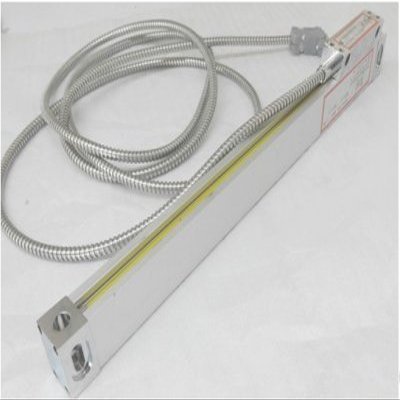

GOWE High accuracy drilling milling machine 14" / 350mm linear glass scale

GOWE

GOWE High accuracy drilling milling machine 14" / 350mm linear glass scale

£436.83 £728.05
  • Order within to get between
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support

Description

  • Travel length: 350mm; Overall length: 490mm; Resolution: 0.005mm; Voltage: 5V (If need 24V voltage input, please contact seller); Signal: TTL EIA-422 (If need other, please contact seller); Application: (X axis, Y axis, Z axis)Mill, Lathe, Grinder, Drill, CNC etc;
  • 1.High Precision Etched glass; 2.Resolution : 5um (0.005mm) 0.0002; 3.Signal : TTL square wave EIA-442; 4.Grating pitch: 0.02mm (50LP/min); 5.Accuracy: 0.005 mm or 0.0002" (at 20 deg C); 6.Reference marks at interval of 50mm; 7.Response Speed: 60m/min or 40ins/sec; 8.Cable length: 2.5 or 3 Meter (about 9 feet); Scale Length; 100,150,200,300,400,500 ,800,900,1000mm,etc.
  • In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 116mm longer than travel. One inch equuals to 25.4mm. For the details, please contact the seller. We believe that good communication can ensure a happy and smooth transaction
