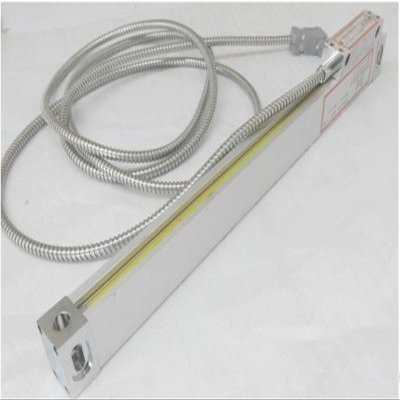

GOWE Wholesale lathe/drilling machine/milling machine working table 500mm measuring position sensor

Description

• Travel length: 500mm ; Overall length: 640mm ; Resolution: 0.005mm / 5um / 0.0002"; Voltage: 5V (If need 24V voltage input, please contact seller); Signal: TTL EIA-422 (If need other, please contact seller); Application: (X axis, Y axis, Z axis)Mill, Lathe, Grinder, Drill, CNC etc. 1.High Precision Etched glass; 2.Resolution : 5um (0.005mm) 0.0002; 3.Signal : TTL square wave EIA-442, (If need others, pls contact seller); 4.Grating pitch: 0.02mm (50LP/min)
• 5.Accuracy: 0.005 mm or 0.0002" (at 20 deg C); 6.Reference marks at interval of 50mm; 7.Response Speed: 60m/min or 40ins/sec; 8.Cable length: 2.5 or 3 Meter (about 9 feet); Scale Length; 100,150,200,300,400,500 ,800,900,1000mm,etc. In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 116mm longer than travel. One inch equuals to 25.4mm.
• For the details, please contact the seller. We believe that good communication can ensure a happy and smooth transaction; Our digital linear scale widely applied to milling machine, grinding machine, lathe, EDM and so on. According to customerneed, the company can supply products such as grating of special types and specifications, as well as magnescale, both assorted with other apparatus and special mechanical equipments.
• Lathe / drilling machine

GOWE Wholesale lathe / drilling machine / milling machine working table 500mm measuring position sensor
