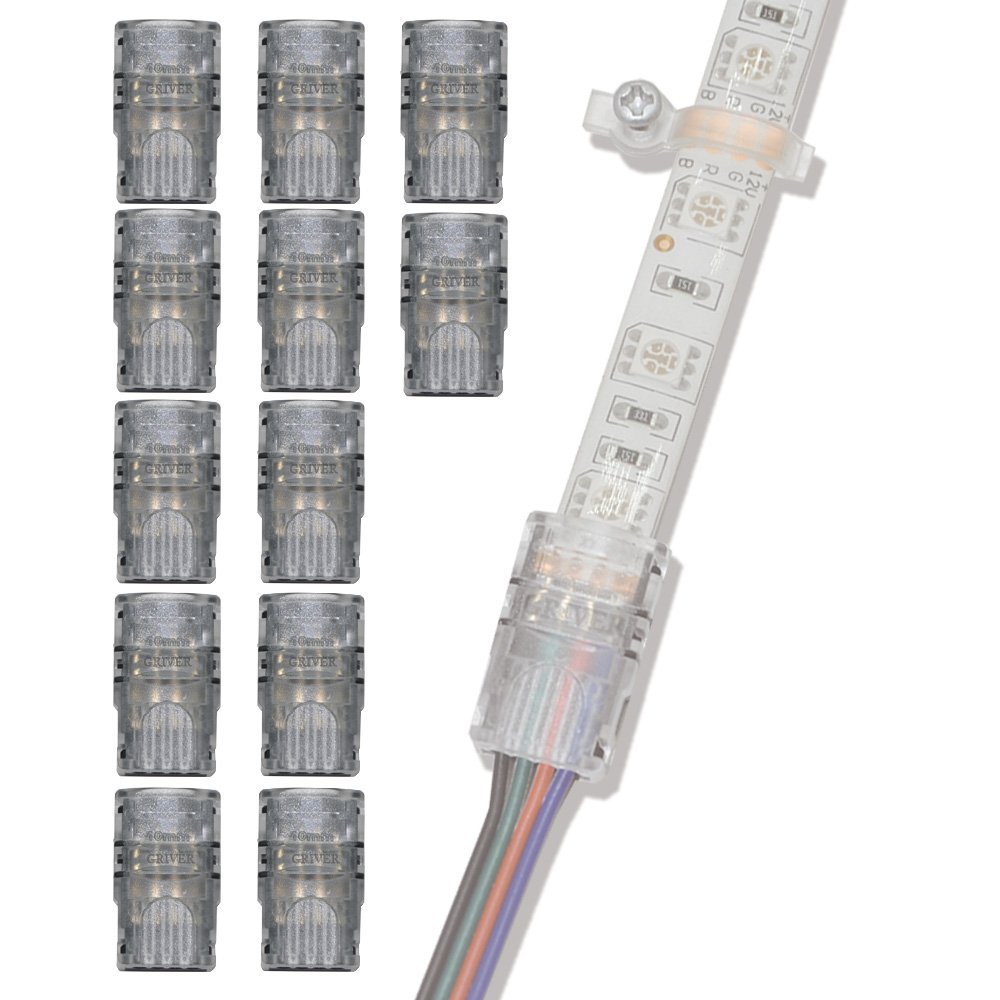

GRIVER 4 Pin LED Connector for Waterproof 5050 RGB LED Strip Light - Strip to Wire Quick Connection (12Pcs 4-Pin Strip to Wire Connectors)

Description

• FREE FROM THE LIMIT OF TERMINAL POSITION: Connect wire by yourself as need, free from the consideration of the length of terminal wire
• EASY TO USE: Solderless, No wire-stripping and No need to peel off Silicon cover. Quick and flexible work for different Waterproof 5050 LED Strip Light projects
• COMPATIBLE WITH: Waterproof 10mm Wide 5050 RGB Strip Light 30-120 LEDs/Meter. And 22-18 AWG Solid Wire / Strand Wire
• DURABLE MATERIAL: Fire-proof Nylon housing and High precision brass connector. Offer the excellent current loading of 6A/Pin
• COMPLETE PACKAGE: Includes 12 pieces of 4-Pin Strip to Wire Connectors designed specifically for 10mm Wide Waterproof 5050 RGB LED Strip Light applications
• TIME-SAVING INSTALLATION: Both solderless for strip lights and wire joint connections, saving up to two-thirds of the time on strips connection and wires installation compared to traditional methods

Advantages of GE017 Series:
-The NEWEST DESIGN of strip to wire connectors are worry-free solution for waterproof 5050 RGB LED light strip connection and wire extension.
-Both solderless for strip lights & wire joint.No need to peel off waterproof coating gel.And do not need wire-stripping for wire connection. Saves 2/3 time on strips connection and wires installation.

Installation Guides:
1.Ensure your section of LED light strip is WATERPROOF SMD 5050 LED Strip and has 4 contacts (+, B, R, G).All the contacts are clean.
2.Peel off 3M tape around the cutting line area on the back of LED strip,insert the LED light strip into clasp side. Set the 4 contacts of led strip sitting ON the 4 pins of clasp.(Note: No need to peel off the silicone on the surface of led strip around soldering line area.)
Close the clasp down with plier.
3.Fitting the right length of 22-18 AWG 4 line wire.Insert the wire and assemble it by plier. Press cap down and no more work needed. (Note: No need to strip at the end of 4 Line Wire.)
4.Vailidate installation is complete.

Reminder:
Fitting with 10mm wide waterproof RGB LED Strip Light AND Solid and Strand WIRE 22-18AWG(0.35-0.75 square mm).Please check dimension before use.
Tools Needed: one combination plier.

Package includes:
12x Strip to Wire Connectors for 10mm Wide Waterproof 5050 RGB LED Strip Light
