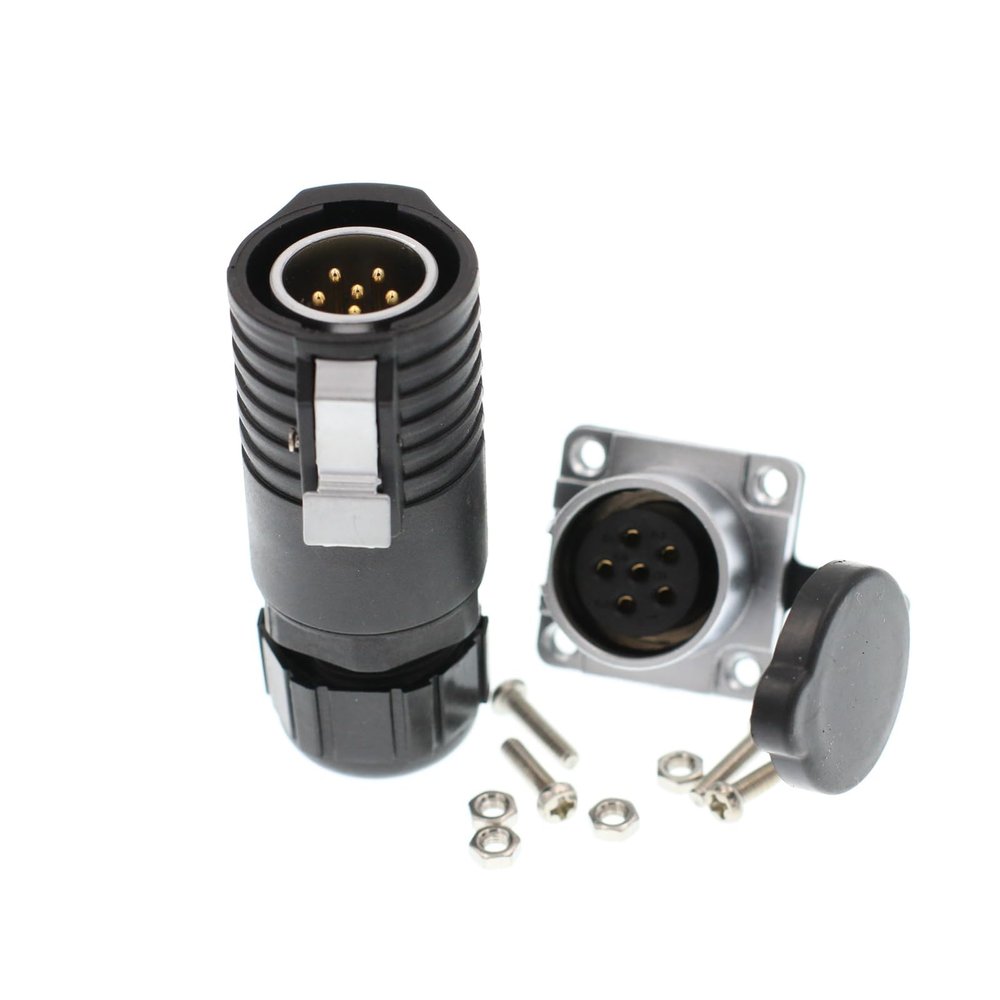

HangTon LP20 6 Pin Connector Plug Panel Socket Female Male Waterproof IP67 Electrical Quick Connect Bulkhead

Description

• Cable Range: 6-12mm, Wire Size: 0.785mm or 18AWG, Contact Diameter: 2
• Rated Voltage/Current: AC 500V/15A, Resistance: 2.5m
• For machines & automotive & LED & marine equipment, lighting system, indoor & outdoor electrical equipment
• Reliable, watertight, dust-proof, explosion-proof, deformation-proof
• Bayonet coupling, quick disconnect, solder cable plug & socket

Features:
In the harsh environment can provide a safe and reliable connection.
LP20(Bayonet) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine or automatic equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, for data and power distribution.

Specifications:
LP20:
Model: 6 Pin
Material: Plastic
IP Rating: IP67
Panel Cutout Diameter: 20mm
Cable Outer Diameter Range: 8pin ~ 12pin: 4-6mm, 2pin ~ 7pin: 6-12mm
Coupling Type: Bayonet Coupling
Shell: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PPS max temperature 260
Contact Material: Brass with Gold Plating
Termination: Solder
Mating Cycle: >500 times
Temperature Range: -25~+85

Package Includes:
1 x Cable Plug with Male Pins
1 x Chassis Socket with Female Pins
1 x Waterproof / Dustproof Cap
