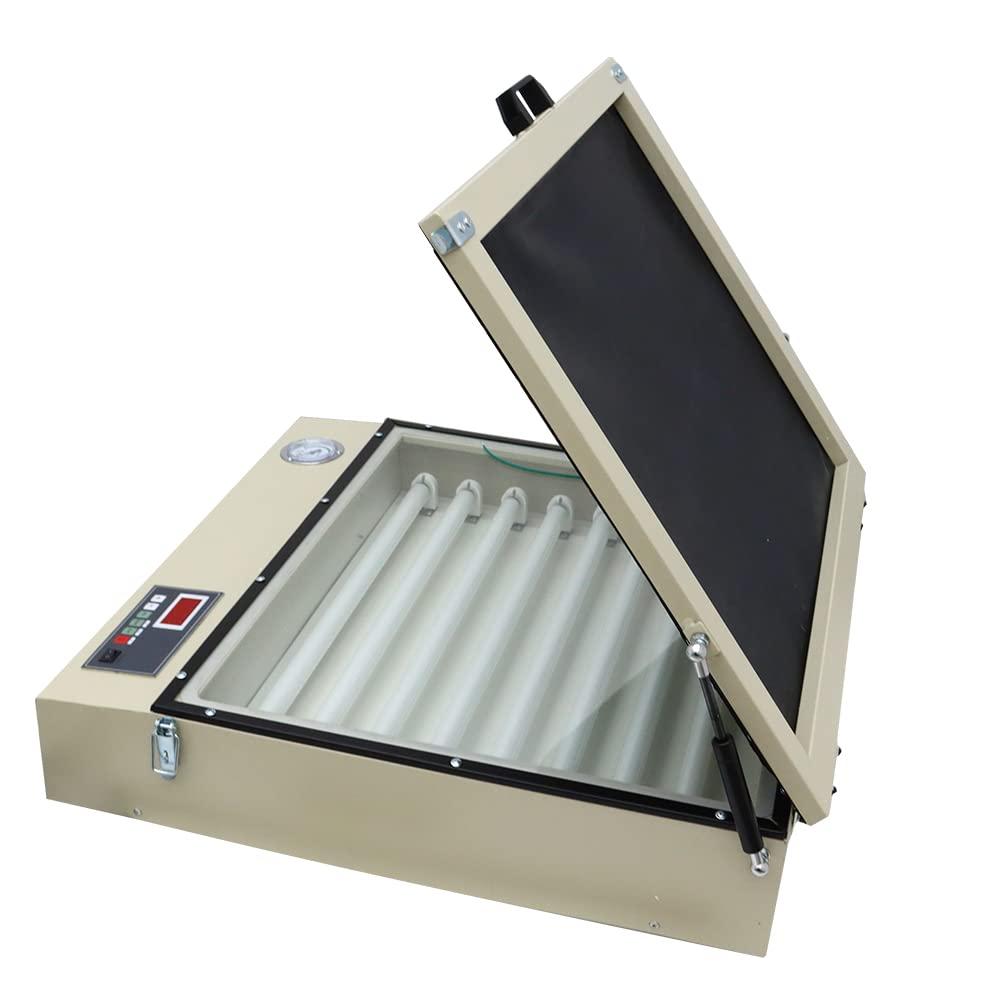

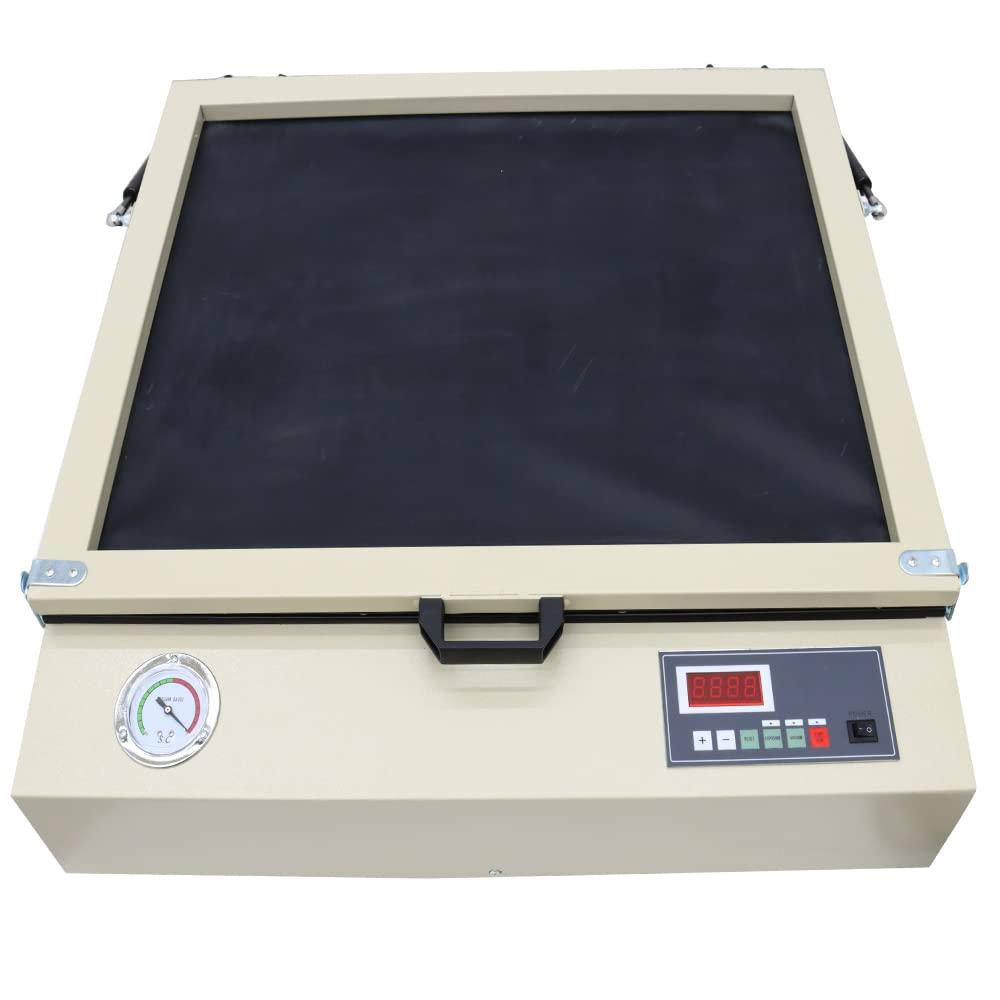

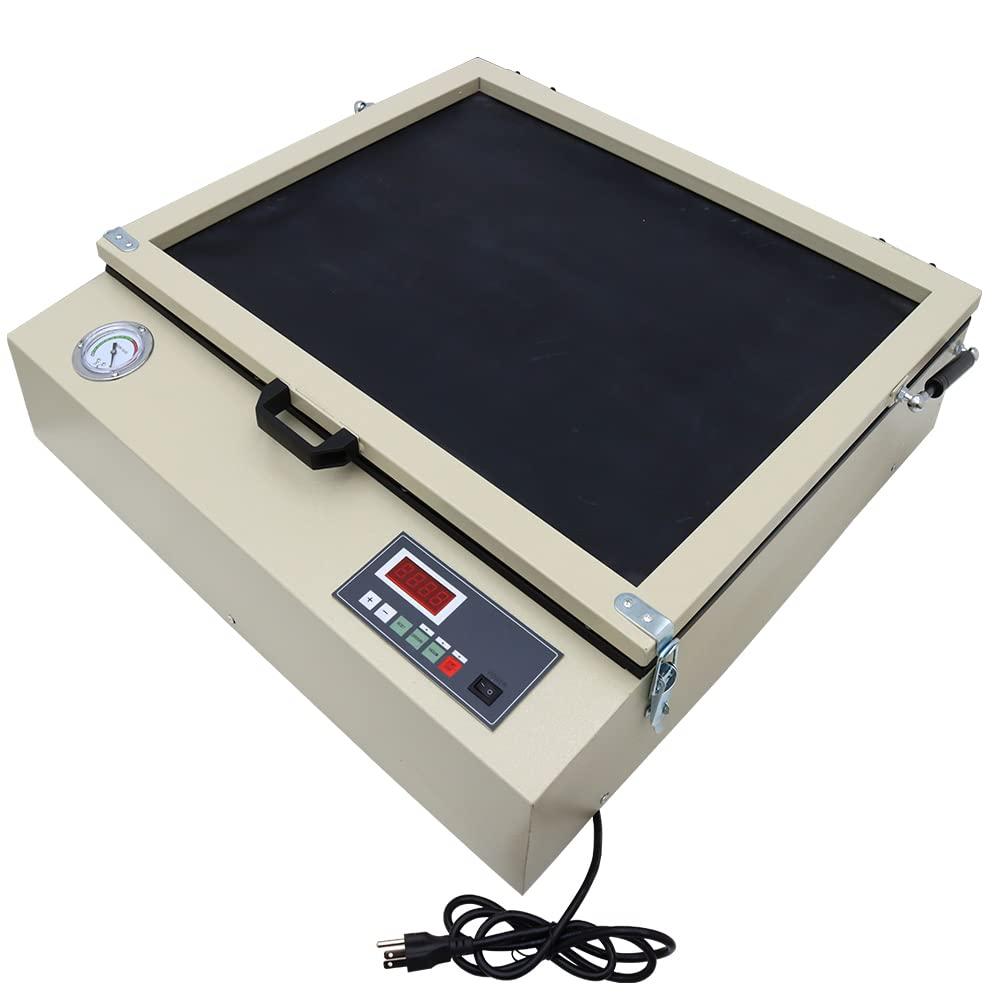

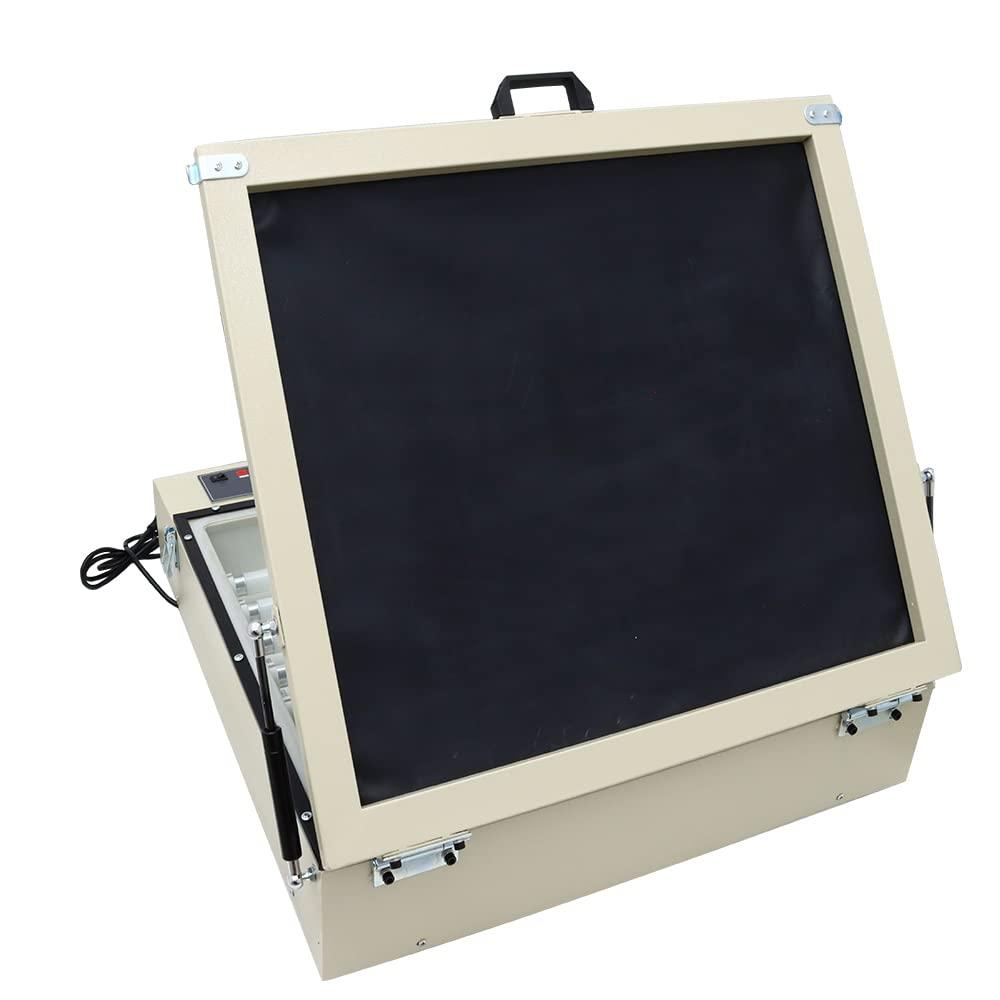

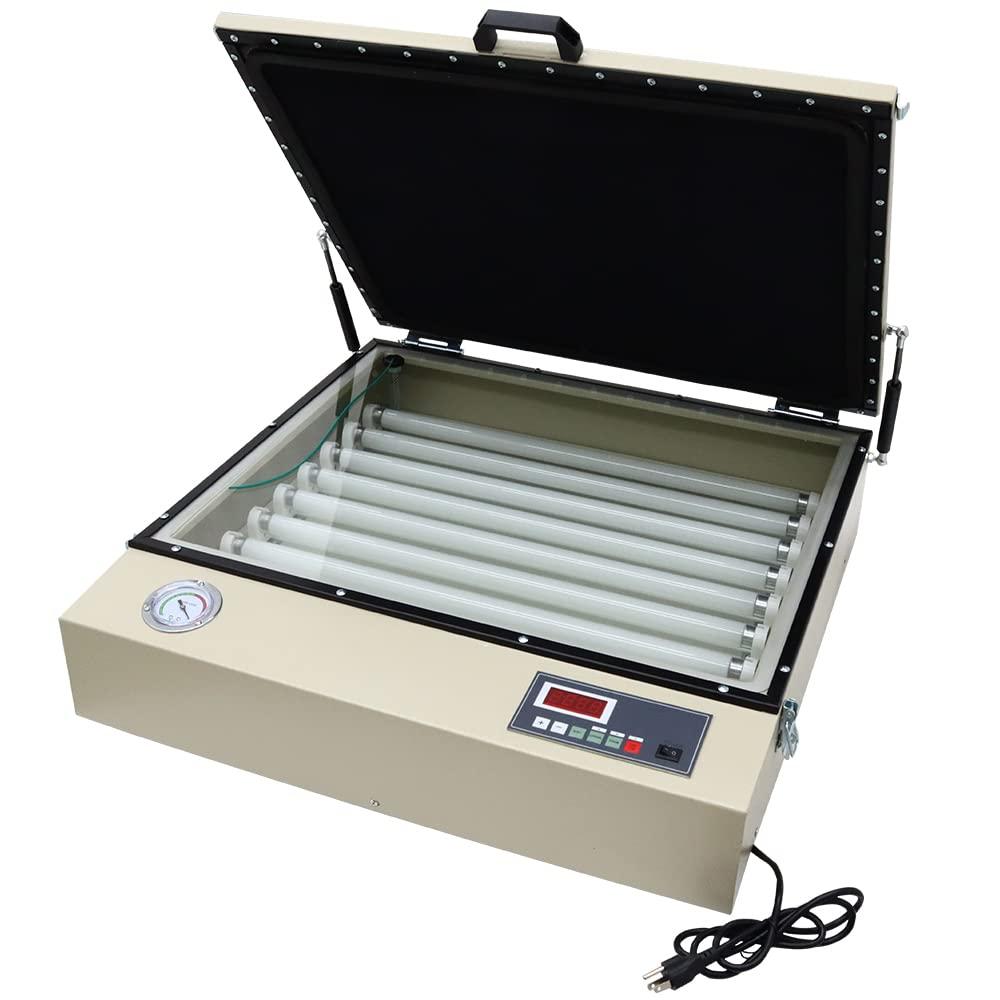

HayWHNKN Vacuum UV Exposure Unit LED 23.6 * 27.6inch Exposure Area for Screen Printing Exposure with Digital Timer

$ 1,932.55
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • Working PrincipleThe Vacuum UV Exposure Unit is equipped with special UV lamps and auxiliary vacuum suction device. When the set time is up, it will deflate automatically, and then the exposure is finished.

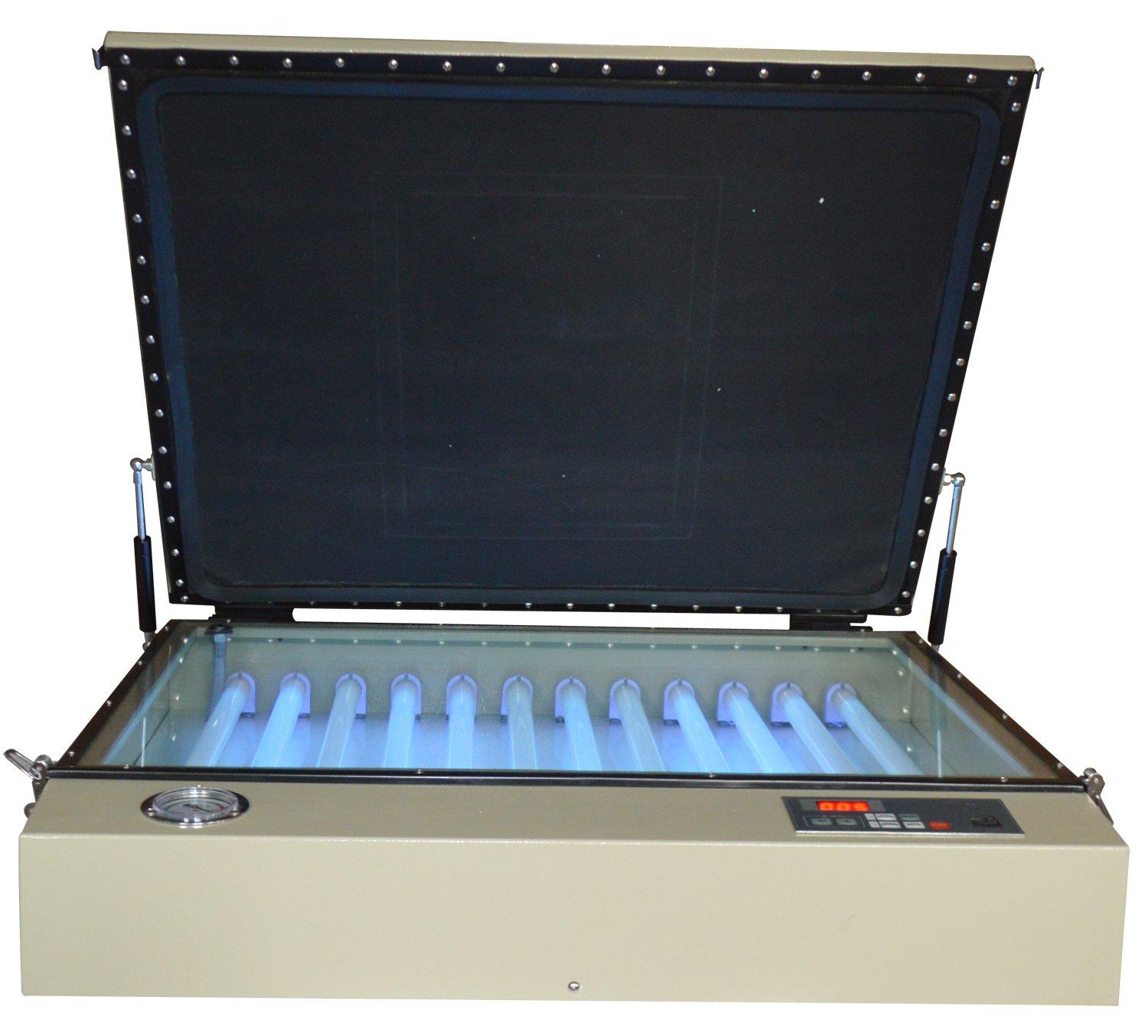

  • High EfficiencyThere are 12 20W UV burning LED Lamps (total power 240W). Normally can be used for about 10,000 hours. The vacuum exposing area(sizes of the rubber blanket) is 23.6"*27.6"(60*70cm), suitable for all kinds of screen frame within this size.

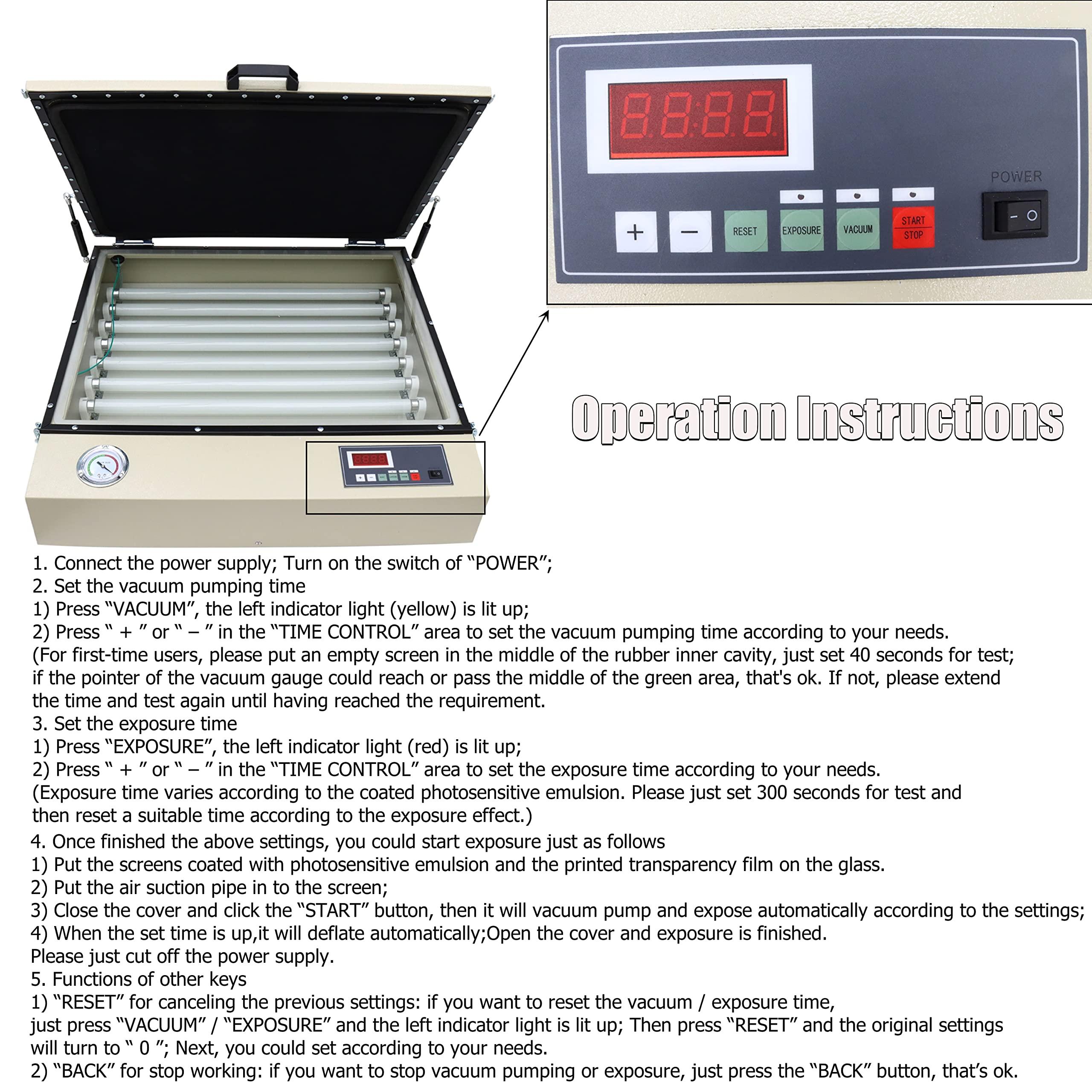

  • With Countdown TimerWhen the setting time run out, this machine will light off automatically.The timer has a function of automatic memory, once you set done it will keep the same time no matter how many times open and off.
  • Much SaferEquipped with 8mm tempered glass, resistant to friction. Once the glass is broken, the glass shards are not sharp, could make sure the safety of operator.

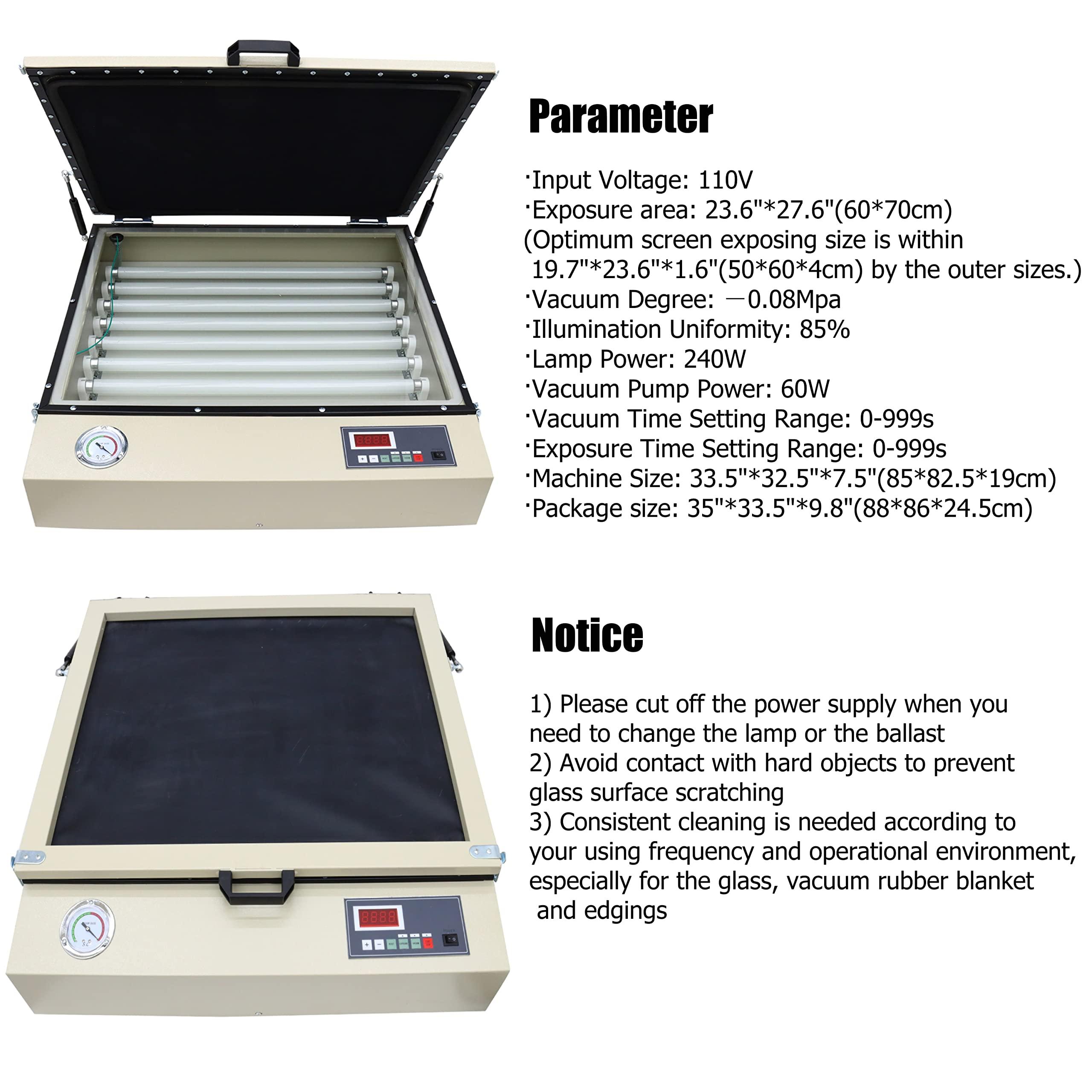

  • ParameterVacuum Degree:-0.08Mpa; Illumination Uniformity:85%;Lamp Power: 240W;Vacuum Pump Power:60W;Vacuum Time Setting Range: 0-999s;Exposure Time Setting Range: 0-999s;Machine;Size:33.5"*32.5"*7.5";Input Voltage:110V.


Notice
1) Please cut off the power supply when you need to change the lamp or the ballast
2) Avoid contact with hard objects to prevent glass surface scratching
3) Consistent cleaning is needed according to your using frequency and operational environment, especially for the glass, vacuum rubber blanket and edgings
