H/D Controller Driver Board for 11.6'' 13.3'' 14'' 15.6'' 1920x1080 30 Pin eDP (not for 1366x768) LCD Screen

Description

• Extensive Screen Model Compatibility This board is field-tested and fully compatible with these popular models: 15.6": B156HAN01.1, B156HAN01.2, LP156WF4-SP, NV156FHM-N31/N41; 14.0": B140HAN01.0/01.1/01.2; 13.3": N133HSE-EA1/EB1; 17.3": N173HCE-E31, N173HGE-E11. For models not listed, our technical support is ready to assist with compatibility verification.
• Precision 1080P Display Solution Specifically designed for high-definition 1920x1080 (no 1366x768) resolution LCD panels. This controller board ensures vibrant color reproduction and crisp image quality for your DIY monitor projects or screen repairs.
• Standard 30-Pin eDP Interface Features a universal 30-pin (no 40-pin) eDP connector, making it highly compatible with a wide range of modern laptop internal screens from 11.6" to 17.3". Please verify your screen's interface type for seamless integration.
• Stable 12V 2A Power Performance Designed for reliability, the board operates best with a 12V 2A (or higher) DC power adapter (5.5x2.1mm). This ensures the screen remains bright and prevents automatic restarting or flickering caused by insufficient current.
• Plug & Play Installation To ensure a smooth experience, the signal cable is pre-connected to the board before shipping. For the screen side, simply align the cable with "Pin 1" (marked by a red circle on the board). Use the provided signal cable instead of the original laptop cable for optimal data transmission.
• Expert Technical Guidance Black screen :maybe for wrong connecting or no signal enter into screen; White screen: caused by reverse cable connecting with screen port or wrong resolution;So pls double check the cable connecting ,resolution setting,and signal resource entering in ;Restarting again :For the current of power supply is too small ,So Pls try with larger current .

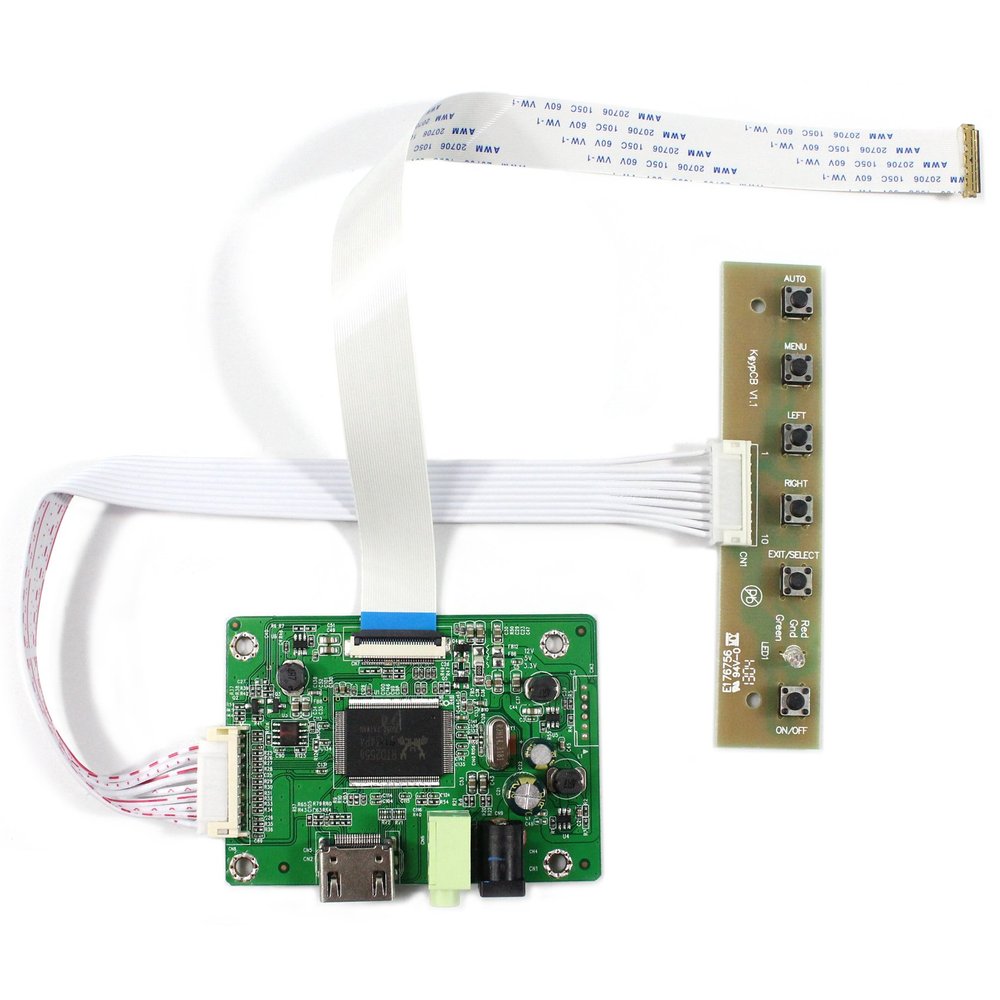

Professional H/D LCD Controller Board Kit VS-RTD2556H-V1 - Full HD 1920x1080 30-Pin eDP Solution
This high-quality DIY controller board kit is specifically engineered to repurpose 1080P laptop screens into portable monitors or custom displays. Featuring a compact design (77mm x 55mm x 16mm) and pre-installed firmware, it offers a reliable and efficient solution for your DIY display projects.
Technical Specifications and Power Requirements
Model: VS-RTD2556H-V1 Drive Board.
Input Support: H/D signal input for high-definition video and audio.
Output Resolution: Optimized for strictly 1920x1080 FHD panels via 30-Pin eDP interface.
Audio Output: Integrated 3.5mm Earphone Jack for convenient sound monitoring.
Voltage Requirement: 12V DC power input via 5.5mm x 2.1mm port (Current: 2A or greater recommended).
Energy Efficiency: Smart standby mode activates when no signal is detected, consuming less than 0.3W.
OSD Control: User-friendly menu for Brightness, Contrast, Volume+, Volume-, and Language settings (Default: English).
Professional Setup and Installation Guide
Pin 1 Alignment: To ensure a successful installation, align the signal cable with Pin 1, which is clearly marked with a red circle on the controller board. The cable is pre-connected to the board for your convenience.
Dedicated Hardware: Always use the specialized 30-pin signal cable included in this kit. It is designed to work perfectly with the VS-RTD2556H-V1 board for stable data transmission.
Operational Tip: Ensure your H/D source is active before powering on. If no signal is detected, the board will enter standby mode to protect the hardware and save energy.
Comprehensive Compatibility List (1920x1080 30-Pin eDP)
11.6 inch Panels: N116HSE-EA1, N116HSE-EA2, N116HSE-EJ1, N116HSE-EB1.
13.3 inch Panels: N133HSE-EA1, N133HSE-EA3, N133HSE-EB1, N133HSE-EB3.
14.0 inch Panels: B140HAN01.0, B140HAN01.1, B140HAN01.2, B140HAN01.3.
15.6 inch Panels: B156HAN01.1, B156HAN01.2, B156HTN03.0, LP156WF4-SP, N156HGE-EA1, NV156FHM-N31, NV156FHM-N41.
17.3 inch Panels: N173HCE-E31, N173HGE-E11, N173HGE-E21, B173HTN01.0, B173HTN01.1.
Common Troubleshooting Solutions
Exit Factory Mode: If the screen cycles through various solid colors during the first startup, simply press the ON/OFF key on the included keyboard once to exit the test mode and return to normal display.
White Screen Resolution: A white screen usually indicates the signal cable orientation needs adjustment. Please re-verify the Pin 1 alignment for a clear image.
Power Stability: If the display restarts frequently, ensure your power adapter provides a stable 12V output with at least 2A of current.
Packing List
1 x H/D LCD Controller Board (Model: VS-RTD2556H-V1)
1 x Specialized 30-Pin eDP Signal Cable
1 x Functional Keyboard with Connection Cable
Note: For the best experience, please verify your screen model matches our list. If your model is not listed, send us a photo of your screen's back label for a professional compatibility check.
