Description
- It is used to extract digital audio signals from HDMI signals.The output mode can adopt I2S/optical/coaxial connection decoder to improve the sound quality.
- I2S output can support up to 7.1 channels,which is also supported.
- HBR audio output(voice only supports decoder)also supports DSD 2-channel output,and at the same time supports connection with most devices that do not require an external power supply.For example,when the player is powered by an external power supply (DC 5V)is not enough.
Product Name:
HDMI Separation and Extraction of Audio 7.1 Channel I2S/DSD/HBR/Fiber/Coaxial(HDMI to I2S/IIS)
Note that there are two kinds of boards,the price is different,contact before the price change:

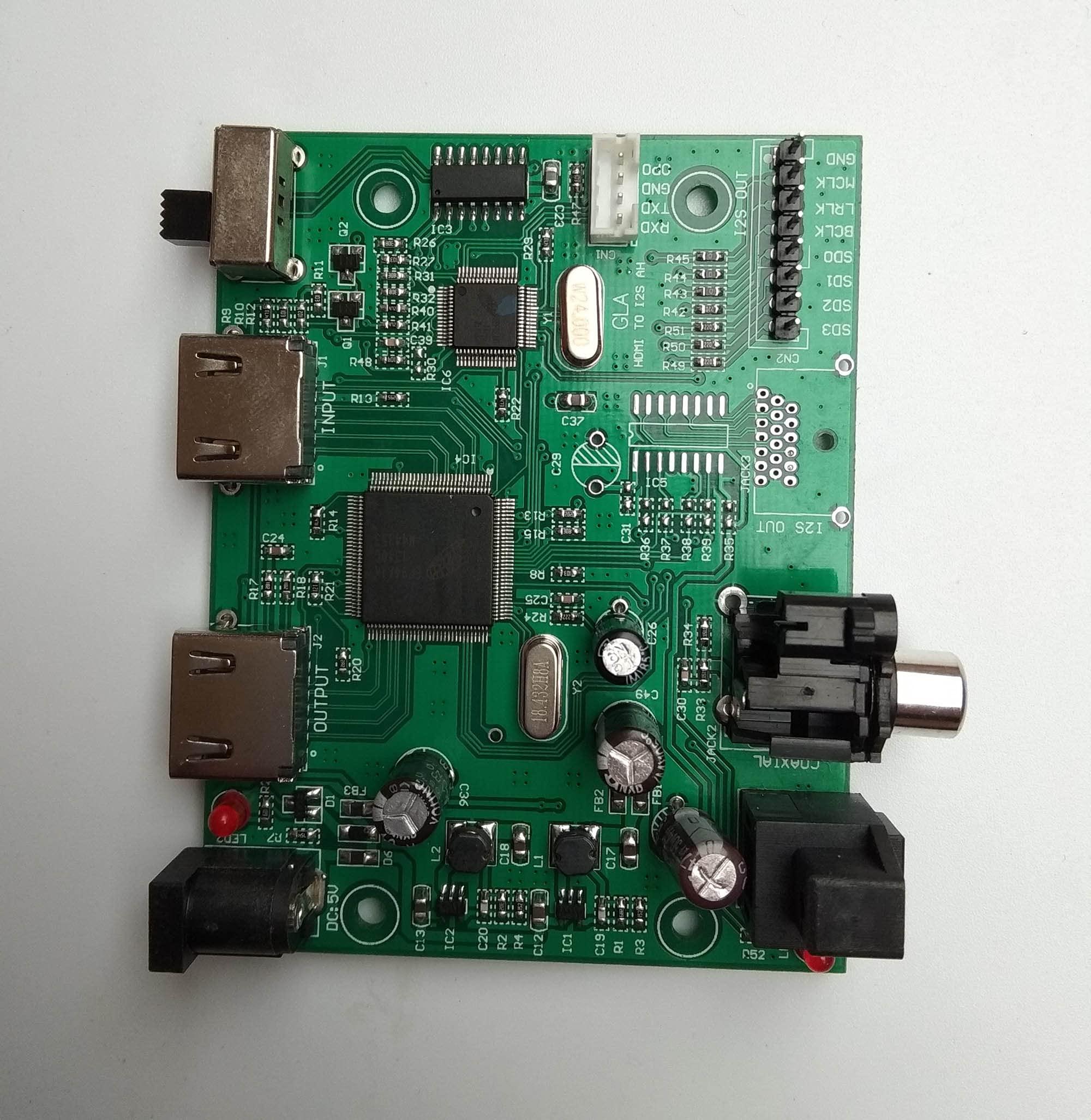

A board:Standard Edition.HDMI Input,HDMI Output,Coaxial Output,Optical Fiber Output,I2S Output.
B board:plus HDMI OVER I2S.HDMI input,HDMI output,coaxial output,optical fiber output,I2S output.HDMI OVER I2S output.
