High-Precision AD/DA Expansion Board Compatible with Raspberry Pi Standard RPi 40PIN GPIO Extension Header Supports Pi 4B/3B+/3B/2B/Zero and Jetson Nano

• Onboard ADS1256, 8-ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate.

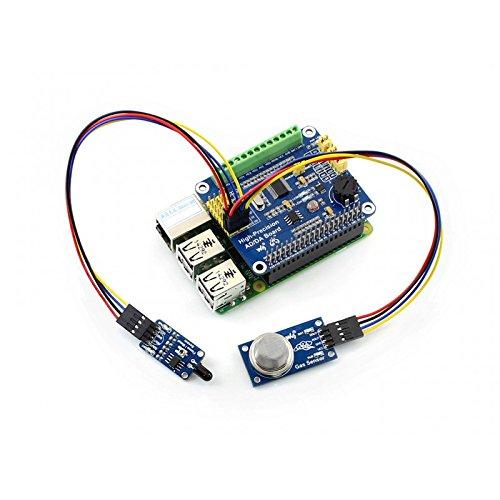

• The pinout is compatible with the Waveshare sensor interface standard, easy to connect various analog sensor modules.
• Onboard terminal block encapsulates the input and output interface, which can be connected to analog signals and digital signals, which is convenient for use on various occasions.
• Features AD/DA detect circuit, easy for signal demonstration.Onboard DAC8552, 2-ch 16bit high-precision DAC.
• Provides sample demo of RPi A+ ,RPi2B,and Jetson Nano.

Features
Onboard ADS1256, 8-ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate.
Onboard DAC8552, 2-ch 16bit high-precision DAC.
The pinout is compatible with the Waveshare sensor interface standard, easy to connect various analog sensor modules.
On-board terminal block encapsulates the input and output interface, which can be connected to analog signals and digital signals, which is convenient for use on various occasions.
Features AD/DA detect circuit, easy for signal demonstration.
Provides sample demo of RPi and Jetson Nano.

Package Content
High-Precision AD/DA Board x 1
RPi screws pack (2pcs) x 1
