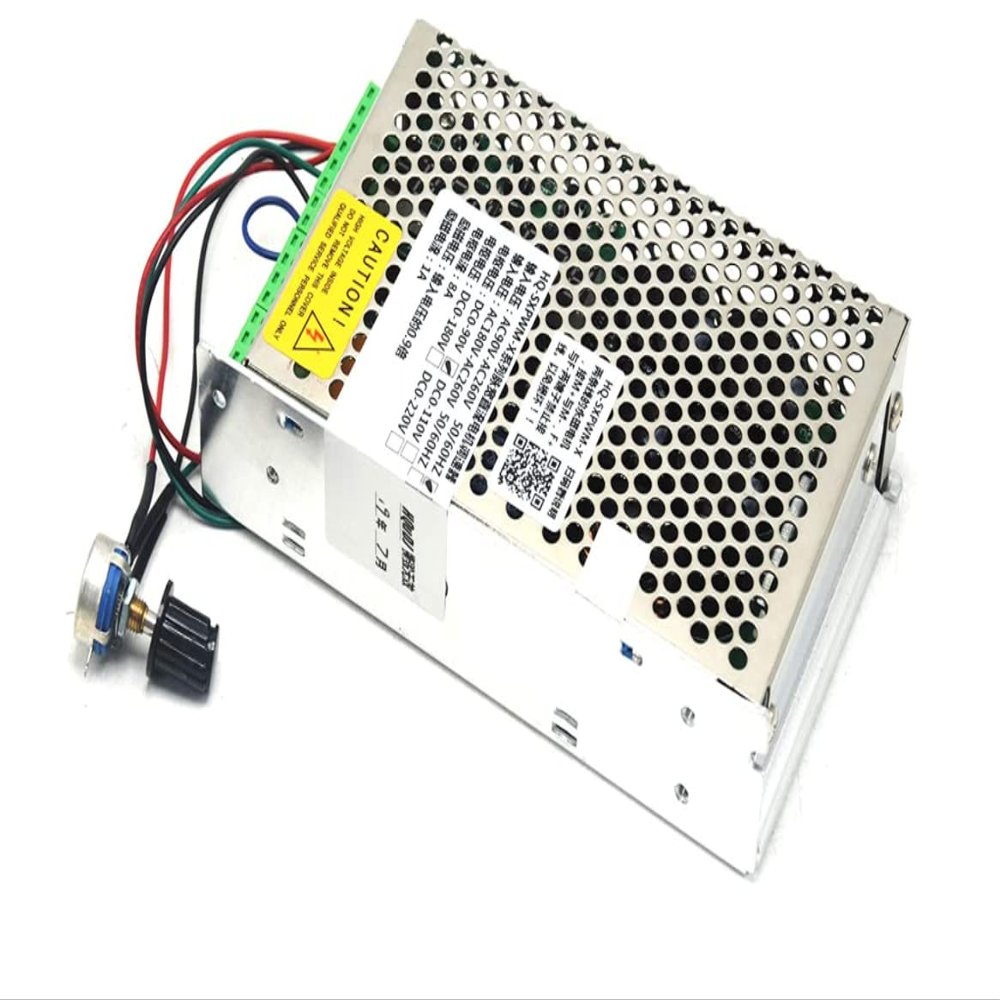

HQ-SXPWM-X Output AC90V-AC260V Input high-Power DC Motor Governor 8A90V

Description

• the input power (VAC): AC90-260V 50/60 Hz (Wide voltage range)
• the output armature voltage range (VDC): 0-90V
• the given signal mode (V / mA): the default potentiometer, 0-5V, 0-10V, 4-20mA, PWM, button type
• IR torque compensation range: 0-100% (default 0)

Parameters :
1, the input power (VAC): AC90-260V 50/60 Hz (Wide voltage range)
2, the output armature voltage range (VDC): 0-90V
3, the output armature current range (A): 8A (0.1A-10A can be arbitrarily set) If the current is too large need to increase the heat
4, the output excitation voltage range (VDC): 100V/200V (default full bridge rectifier, which is 0.9 times the input voltage)
5, the output excitation current range (A): 1A
6, the operating frequency: 16 KHz
7, the given signal mode (V / mA): the default potentiometer, 0-5V, 0-10V, 4-20mA, PWM, button type
8, enable control mode (EN): switch
9, soft start (acceleration time adjustment range) (S): 0-10S (default3 seconds)
10, soft stop (deceleration time adjustment range) (S): 0-10S (default 3 seconds)
11, double closed-loop PI regulation, (voltage, current) control more reliable
12, IR torque compensation range: 0-100% (default 0)
13, over-current protection range
