Description
- Compatible with: All HELIX Series except non-CHIRP DI models, Matrix 10, 12, 15, 17, 20, 27, 67, 77, 87, 97, All 100 and 300 Series except DI, All 500 Series except DI, All 600 Series except DI, All 700 Series except DI, All 800 Series except DI, All 900 Series except DI, 3D models, All 1100 Series except DI, and HDR650 to the maximum capability of the transducer.
- Cable Length: 20 Feet
- 1-Year Limited Warranty
- New design is more secure, less prone to kick up, with improved running angle
- Includes 20-foot cable, necessary mounting hardware, and built-in temperature sensor
- 20- and 60-degree cone angles operating on 200 kHz and 83 kHz frequencies
- Compatible with many Pmax, Matrix and numbered series Humminbird sonar systems
- Backed by manufacturer's one-year limited warranty
Amazon.com

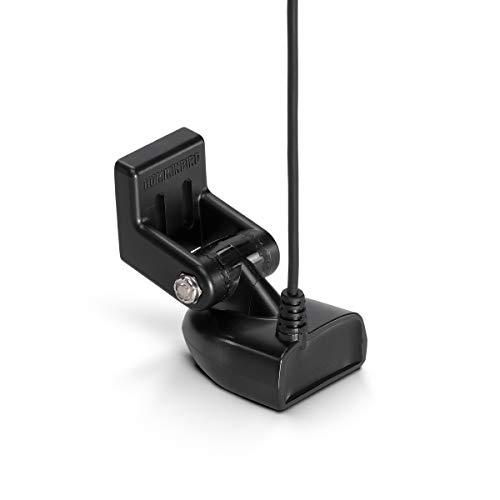

The Humminbird XNT 9 20 T Transom Mount Transducer is a high-speed transducer designed to mount on the transom, or back, of the boat, in contact with the surface of the water, and operate in conjunction with a compatible Humminbird sonar or fish finder system. This unit is a single and DualBeam transducer that features 20- and 60-degree cone angles operating on 200 kHz and 83 kHx frequencies respectively.
The XNT 9 20 T includes a built-in temperature sensor, a 20-foot cable, and all the necessary high-speed hardware to get up and running right away. Although this unit has the same hole pattern as some older-version transducers, it utilizes a new design that is more secure and less prone to kick up at the high force of waves, as well as having an improved running angle, and an optional lock-down screw to override the kick up. The Humminbird XNT 9 20 T transducer is specifically designed for use with Humminbird's; Matrix 10, 12, 15, 17, 20, 27, 67, 77c, 87c, 97, 717, 727, 737, 767, 777, 787, 323, 343, 363, 383, 141, 161, PMax10, PMax15, PMax20, PMax210, PMax215, PMax220, 917c, 931c, 937c, 957c, 997c, 515, 525, 535, 565,580, 585c, 595c, Piranha 2, Piranha 4, XP2000, and XP4000 sonar devices and fish finders. This transducer is backed by Humminbird's one-year limited warranty.
Product Description
Transom Mount, Single/DualBeam, 20/60 Degree, 200/83 kHz, with built-in temperature.
