Description
- Full-featured fish finder and 16-channel WAAS GPS receiver with chartplotting and sonar all in one
- 5-inch, high-resolution, 256-color TFT LCD display with 640 x 480 pixels of resolution
- Built-in 4 nautical mile resolution UniMap of USA inland lakes, rivers and coastal areas
- 60-degree, and 20-degree beam for both fish location better bottom definition
- Measures 6.9 x 7.7 x 4.5 inches (W x H x D), and reliable to 1500 feet of depth
Amazon.com Product Description

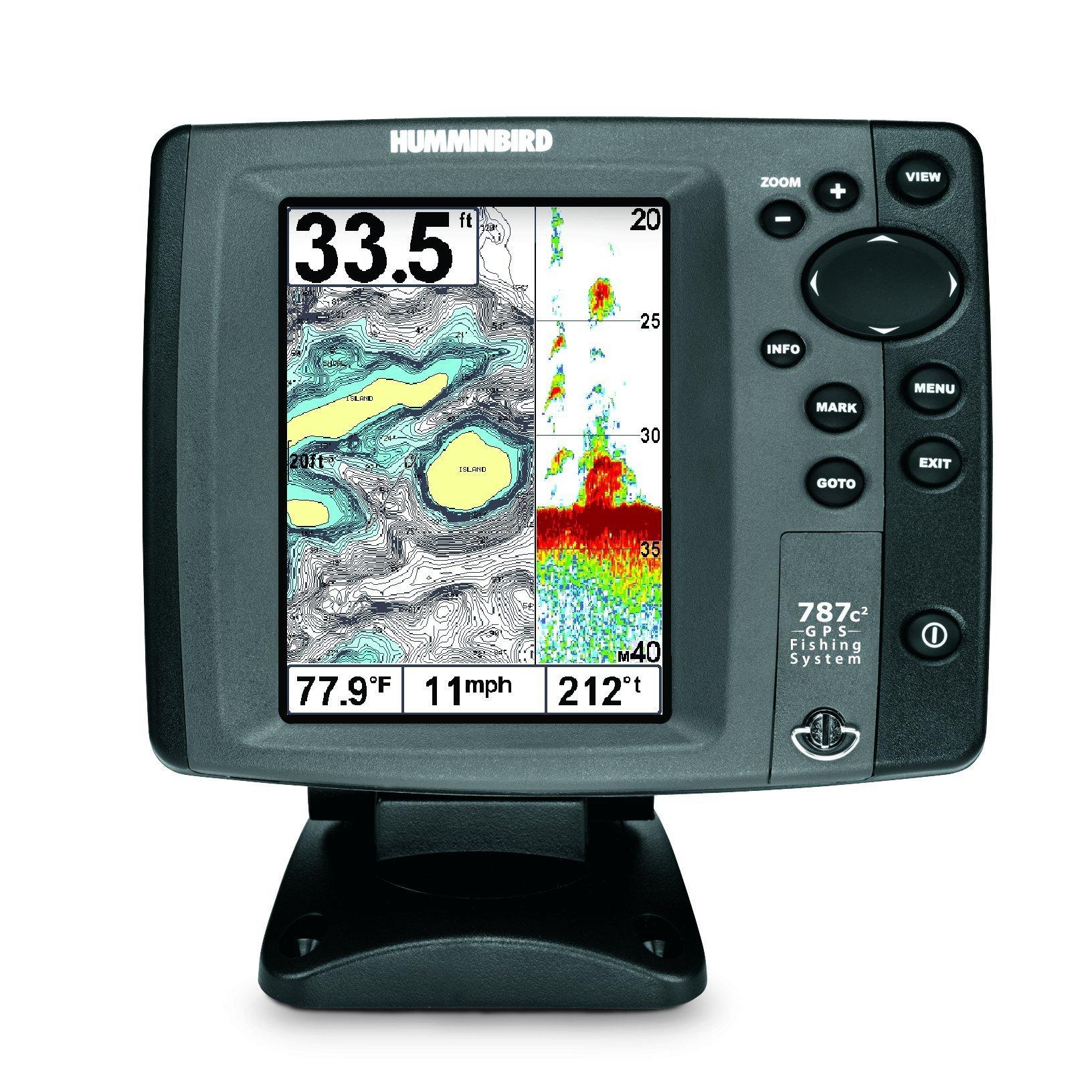

The Humminbird 787c2 Sonar and GPS Combo is an all-in-one fishfinder for the recreational angler that offers incredible ease of use, as well as GPS chartplotting with built-in UniMap, all displayed with crystal clarity on a large screen with three selectable background colors and three sonar colors palette. This little helper may be small, but has huge built-in capabilities, plus the ability to add powerful, advanced accessories, making it the perfect companion for your fishing outings.
The full-featured 787c2 Combo has an internal, 16-channel WAAS GPS receiver with omni-directional antenna for higher performance, and a built-in, four-nautical-mile-resolution UniMap of USA inland lakes, rivers and coastal areas that puts you on top of the hot spots. This unit utilizes DualBeam PLUS sonar that is selectable between 20- or 60-degree beams, or simultaneous operation to deliver wide coverage and better bottom definition that reaches a depth of up to 1,500 feet. While ideal for small spaces, the 787c2 Combo is big in performance, with real-time sonar that instantly captures the action under your boat at up to 40 times per second, and Sonar Echo Enhancement so sensitive it reveals the smallest details -- even your jig! All the information you need is displayed on an ultra high-contrast, five-inch LCD screen with 640x480 lines and in 256-color TFT that is both sunlight viewable, and has hemispherical viewing that provides a paper-like viewing experience regardless of your angle. This fishfinder has a high-speed, micro-dynamic transducer for optimum performance that is reliable up to 70 mph, and even includes water temperature and GPS speed. The 787c2 Combo also has full GPS trackplotting capability to show position, mark hotspots and easily find your way home, as well as PC-connection capability to save and manage waypoints and upgrade internal software. The GPS capability has a full-screen trackplotter and a 3D track and split-screen sonar track with an adjustable split. Easy to use, this fishfinder includes advanced upgrades that are plug-and-play compatible, from the GPS receiver, to the SmartCast wireless sonar link and PC connection accessories. It even includes a memory-card expansion slot for Digital Screen Snap Shot or optional cartography.
The 787c2 Combo features real-time flasher performance, Bottom Lock to enhance resolution and separate fish from structure, one-touch zoom with 2x, 4x, 6x and 8x zoom levels, and X-Press Menus so you can access the most important controls with fewer button presses. This fishfinder has both fresh and saltwater set-up options for optimal performance in any environment, and lets you choose between TruArch for actual fish returns or selective Fish ID+ with target depth. This system also features a selectable large, easy-to-read digital readout with an adjustable backlight for night fishing, and Freeze Frame to instantly pause the sonar display, allowing more time to see the details. As an added convenience, this finder is compact in size, with an easy-on, easy-off mounting system that allows it to go almost anywhere. The 787c2 Combo is built tough with fully gasketed and waterproof construction so it even floats, and is assembled in the USA with a manufacturer's one-year warranty.
The 787c2 Combo runs on 10-20 volts of DC power, providing 500 watts RMS output and 4,000 watts of peak-to-peak output. This unit operates between the 200kHz (20-degrees at -10db) and 83kHz (60-degrees at -10db) frequencies, and has a target separation of 2.5 inches to reveal close-hanging fish. Fully GPS-ready, this unit includes 2,000 waypoints, 50 routes, and 25 tracks with 20,000 points each. The 787c2 Combo comes as a Transom Mount with a tilt-and-swivel quick-disconnect mount system, for either Gimbal or in-dash mounting, and measures 6.9 x 7.7 x 4.5 inches (WxHxD) as a gimbal mount, or 6.9 x 5.4 x 1.25 (WxHxD) when in-dash mounted with three inches of behind-dash clearance. For upgrades, this system is compatible with optional 90-degree QuadraBeam and WideSide Bank Scanning Transducers, as well as Navionics Gold and HotMaps cartography.
Product Description
The 787c2 Combo fishing system has it all. You'll view your charts with the detail and appearance of paper charts, while getting improved clarity to identify fish holding in structure, see important bottom hardness changes, and spot subtle weed beds. This unit comes without a transducer so you can purchase the optional QuadraBeam PLUS. Once you've found the hot spots, mark the location on the built-in, detailed four nautical mile UniMap of U.S. inland lakes, rivers and coastline. Or, try optional Navionics Gold, HotMaps, and HotMaps Premium charts for the most detail including depth contours, spot soundings, markers, buoys, lights and more. Mount in-dash, or use the convenient space saving Tilt & Swivel Disconnect Mounting System. While the 787c2 has nearly everything you could want in a fishing system, t
