Description
- Powered by intel 4 cores 8 threads i7 10510u 10610u 10710u 10810u processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs
- Windows 11 Pro 64 bit installed, set up is effortless and it's ready to run straight out of the box
- Fanless passive cooling design, silent solution thats ultra energy-efficient. the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence

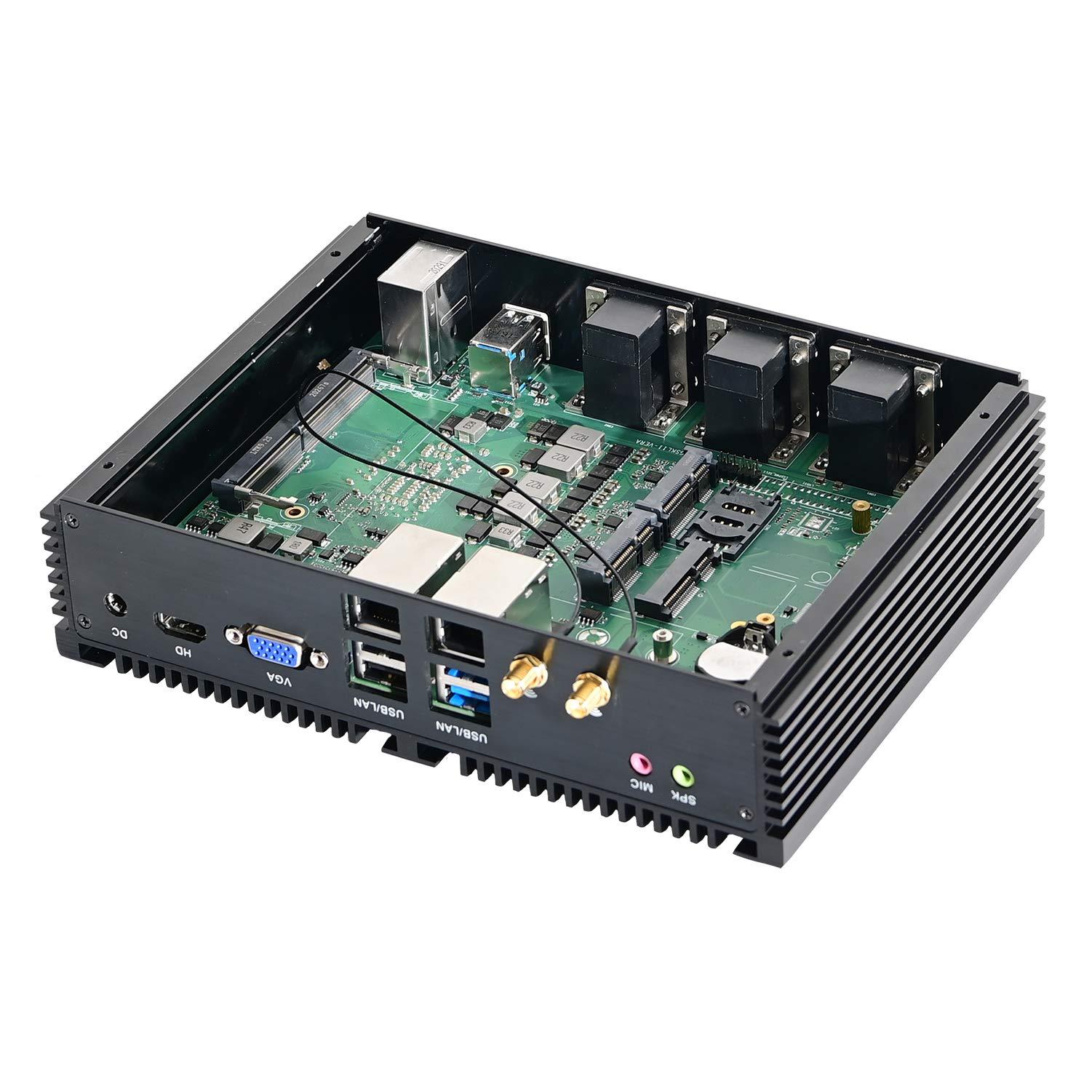

- HUNSN IM07 designed with 4 x usb3.0, 4 x usb2.0, 2 x lan, vga, hdmi, 6 x com, dc, sw, ps/2, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, IPC type with mounting ears
- Size at 210 x 155 x 50mm, 2.5kgs, 19v 5a power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, very powerful fanless industrial pc
Model Number: HUNSN IM07
Material: Aluminum
Type: IPC type with mounting ears
CPU: Intel I7 10510U 10610U 10710U 10810U Processor, ship one of them
Memory: 1 x SO-DIMM DDR4-2666, max. 32GB
Storage: 1 x mSATA SSD, 1 x M.2 2280 SATA/NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Audio: ALC662
Network: 2 x Intel 1GbE I210 /I211 or 2.5GbE 225-V B3 / I226-V, ship one of them
WiFi: 802.11AC 2.4 and 5Ghz, with SIM slot, 4G module can be customized
Bluetooth: 4.0/4.2
I/0 Port: 4 x USB3.0, 4 x USB2.0, 2 x LAN, VGA, HDMI, 6 x COM, DC, SW, PS/2
Power: DC100-240V AC/50-60Hz, DC 19V5A
Operating Temperature: -10C~60C
Storage Temperature: -20C~80C
Relative Humidity: 10%~90% non-condensing
Weight: 1.25kgs
Measurement: 210 x 155 x 50mm
Consumption: 15W
Cooling system: Fanless
Function: 1.7 x 24 hours
2.6 x COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS
3.8-bit GPIO for industrial equipment needs
4.Watchdog for 256-level
5.Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume by alarm, PXE lan boot functions
Packing List: HUNSN IM07 industrial pc, power supply, power cord, WiFi antennas, warranty card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
