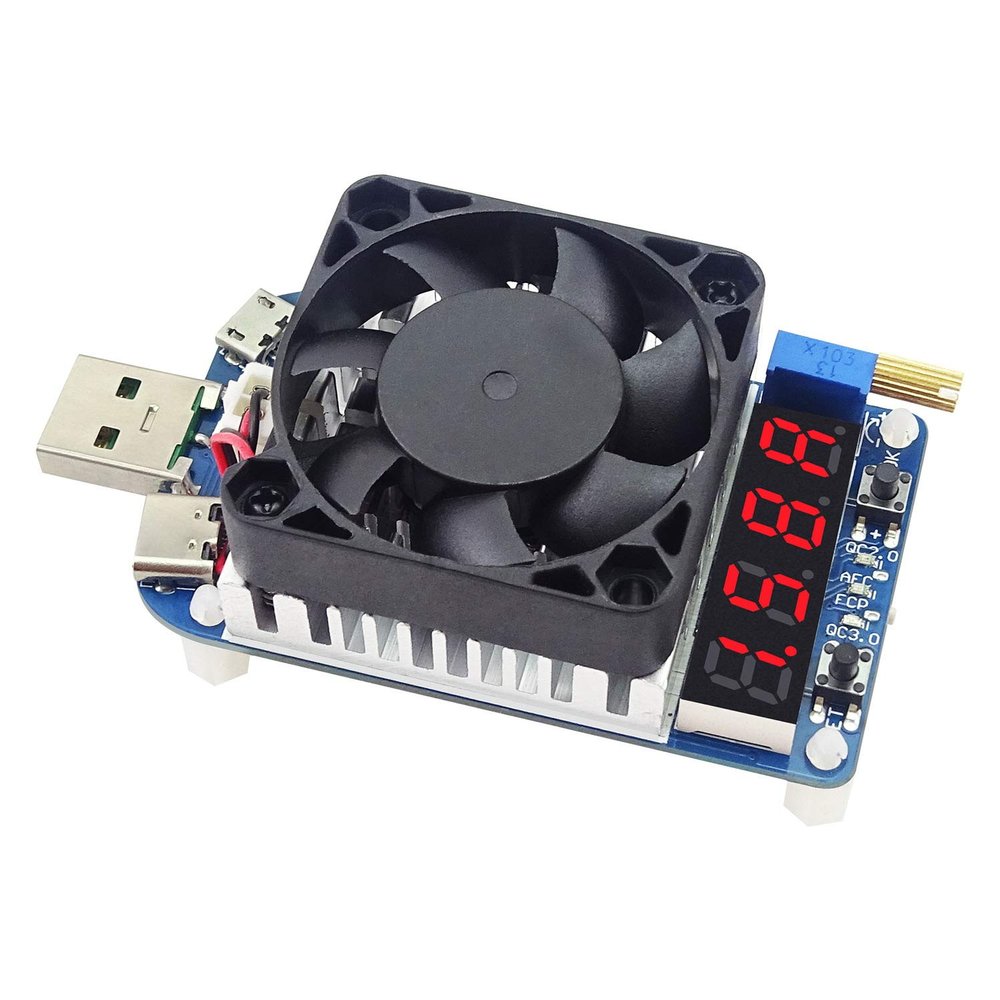

HWMATE HD35 USB Intelligent Electronic Load Resistor Module Trigger Interface Discharge Adjustable Constant Current Temperature Control with Cooling Fan

Description

• Protection function: OVP (over-voltage protection), OTP(over-temperature protection), OPP(over-power protection).
• Set output recovery mode after load entering protection status, manual or automatic.
• View the voltage value, current value and power value of the load.
• Intelligent temperature control fan. When the power is over 10W or the temperature is over 104, the fan will start.
• Precision multiloop adjustable potentiometer: you can adjust the current precisely, up to 0.01A. So you will not adjust a high current mistakenly to damage the power supply.

Features:
You can set default boot status freely, open or close.
Application: Assist to measure Micro USB cable, Type-C cable and output current capacity of charger good or not. Suitable for large batch ageing test at the charger factory.
Trigger functions:Intelligent deception trigger function: support QC2.0, QC3.0, FCP9V, AFC9V protocol;Automatic detection function: Automatically detect the supported fast charge protocol by using AUTO mode;Fast charge function: fast charge protocol for power-on automatic trigger setting, suitable for batch test of charger. NOTE:This product has no reverse connection protection, the input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repaired.
Specifications:
Rated operational voltage: DC4-25.0V
Max discharging power: 35W
Rated operational current: 0.25-5.00A (when fan don't work, the minimum constant current is 0.05A )
Fan Speed: Hydraulic bearing intelligent temperature control fan, speed 800010%RPM Constant current resolution: 2+3 digits
Heat dispatch method: Intelligent temperature control fan + All aluminum fan Working temperature: 14-104
Adjustable potentiometer: Precision multiloop adjustable potentiometer
Display mode: 4 bit LED tube
Expansion port: Micro USB port, Type-C port
Product weight: About 1.83oz
Product size: 3-5/16 x 1-39/64 x 1-7/64
Packing List:
1 x USB Intelligent Electronic Load
