Description
- Input types: +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA ,0~20mA, 4~20mA (jumper selectable)
- Resolution: 16-bit (Normal Mode) / 12-bit (Fast Mode)
- Sampling rate: 10 samples/ second (Normal Mode) / 60 samples/ second (Fast Mode) total
- Accuracy: +/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better
- Power input: +10 to +30 VDC

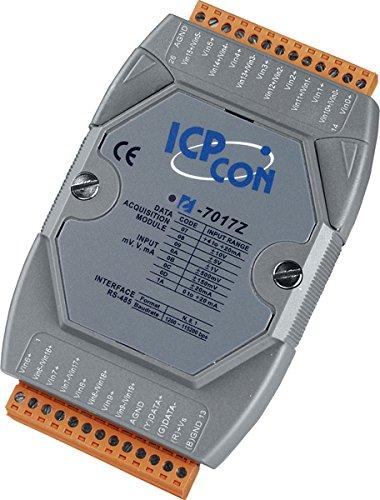

I-7017Z has software configurable channels-- from 10 differential channels into 20 single ended channels. 10 channel mode allows every channel to have 10 different input types. 20 channel mode has all same type communicable over RS-485. Supports operating temperatures between -25 to 75C. Both voltage and current are accepted: 150mV, 500mV, 1V, 5V, 10V, 20mA , 0~20mA, and 4~20mA. No external resistor needed for measuring the current, all you have to do is to open the shell first and finish the setting by jumper. Measuring the current is as simple as you think! The I-7017Z also passes 240Vrms over voltage protection for differential inputs and 150Vrms over voltage protection for singleended inputs, 3000VDC intra-module isolation, +/-4KV contact ESD protection, +/-4KV EFT protection for power, and +/-1KV EFT protection for RS-485. The sampling rate of I-7017Z is changeable. There are fast mode and normal mode for your consideration. Fast Mode is 60Hz with 12 bit resolution. Normal Mode is 10Hz with 16 bit Resolution.
