Description

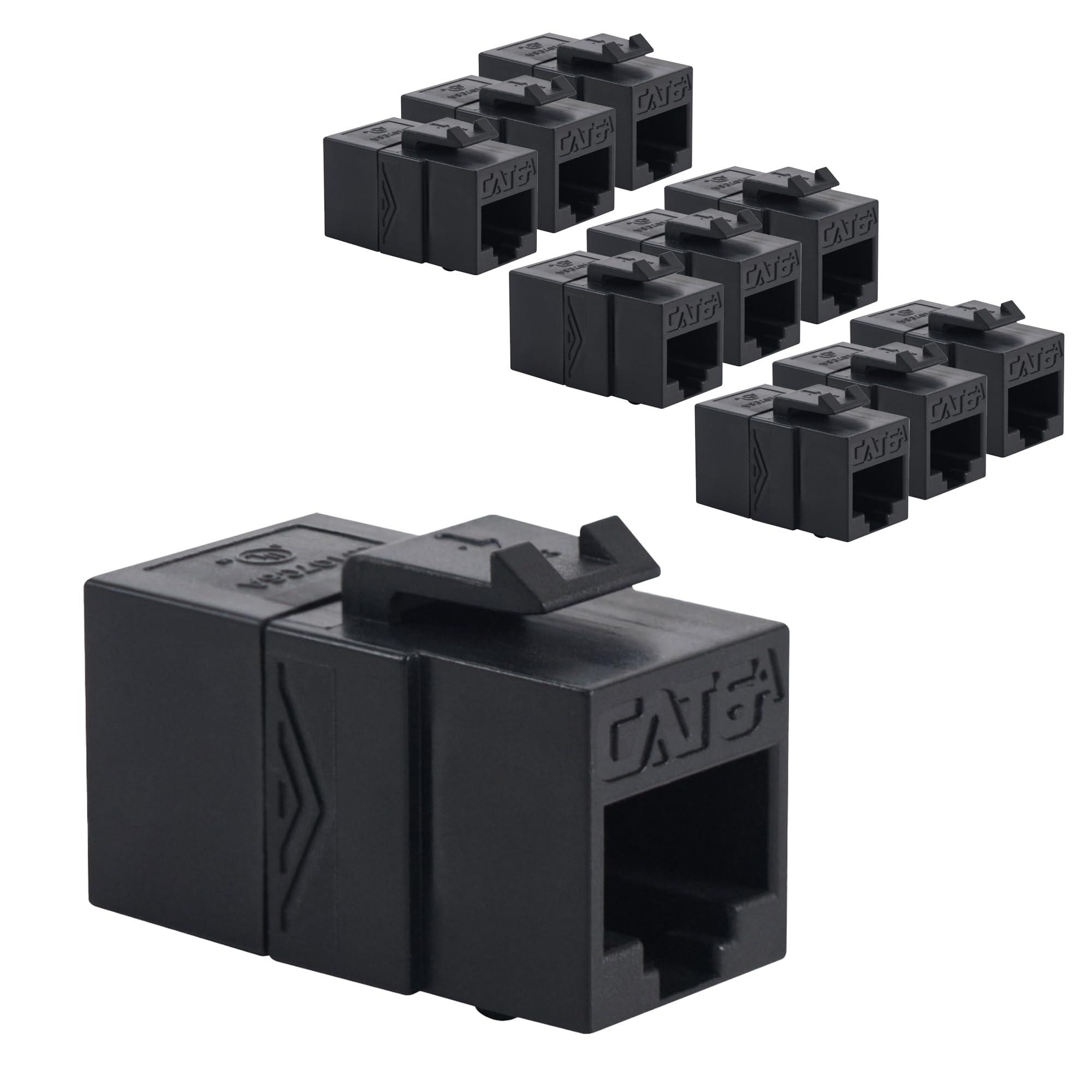

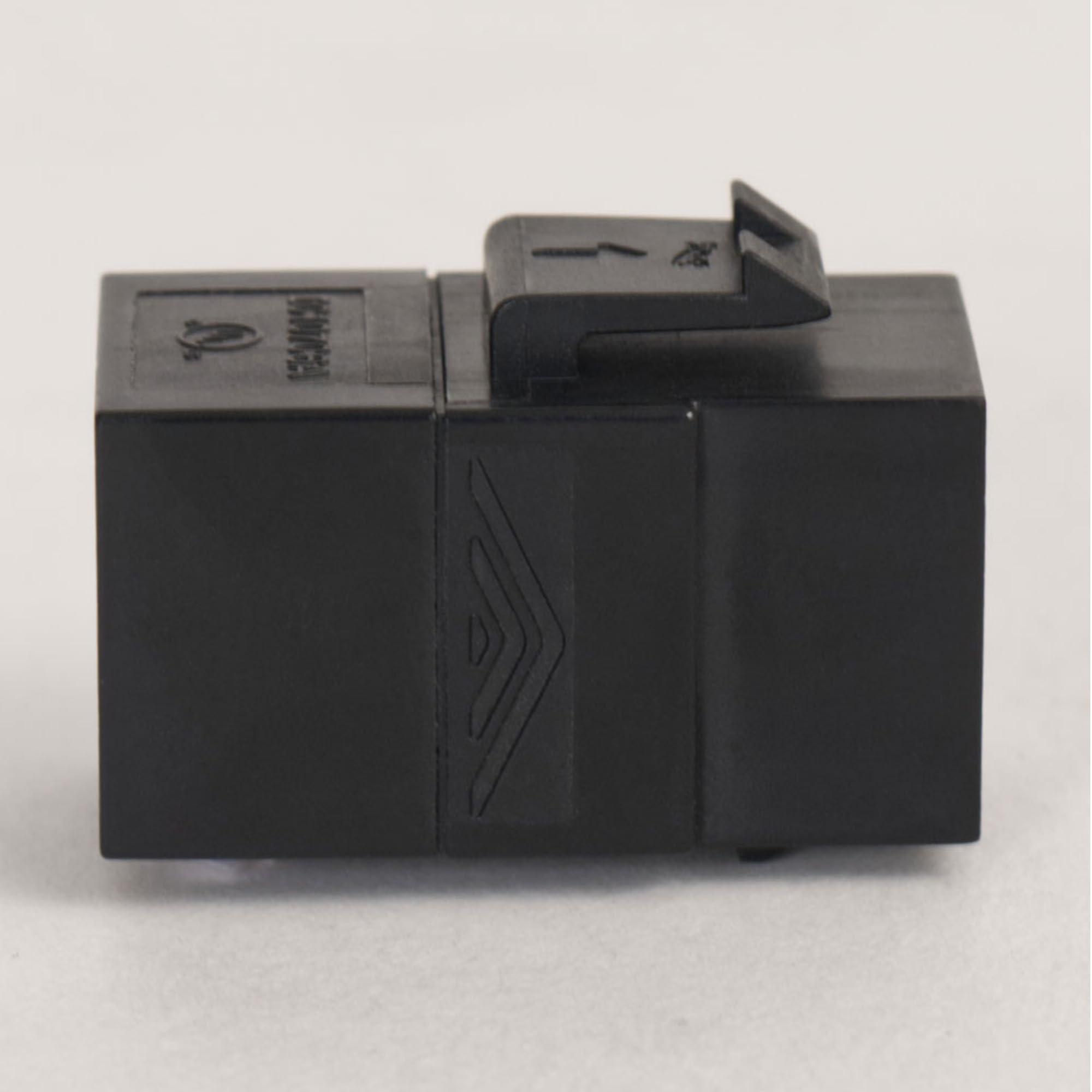

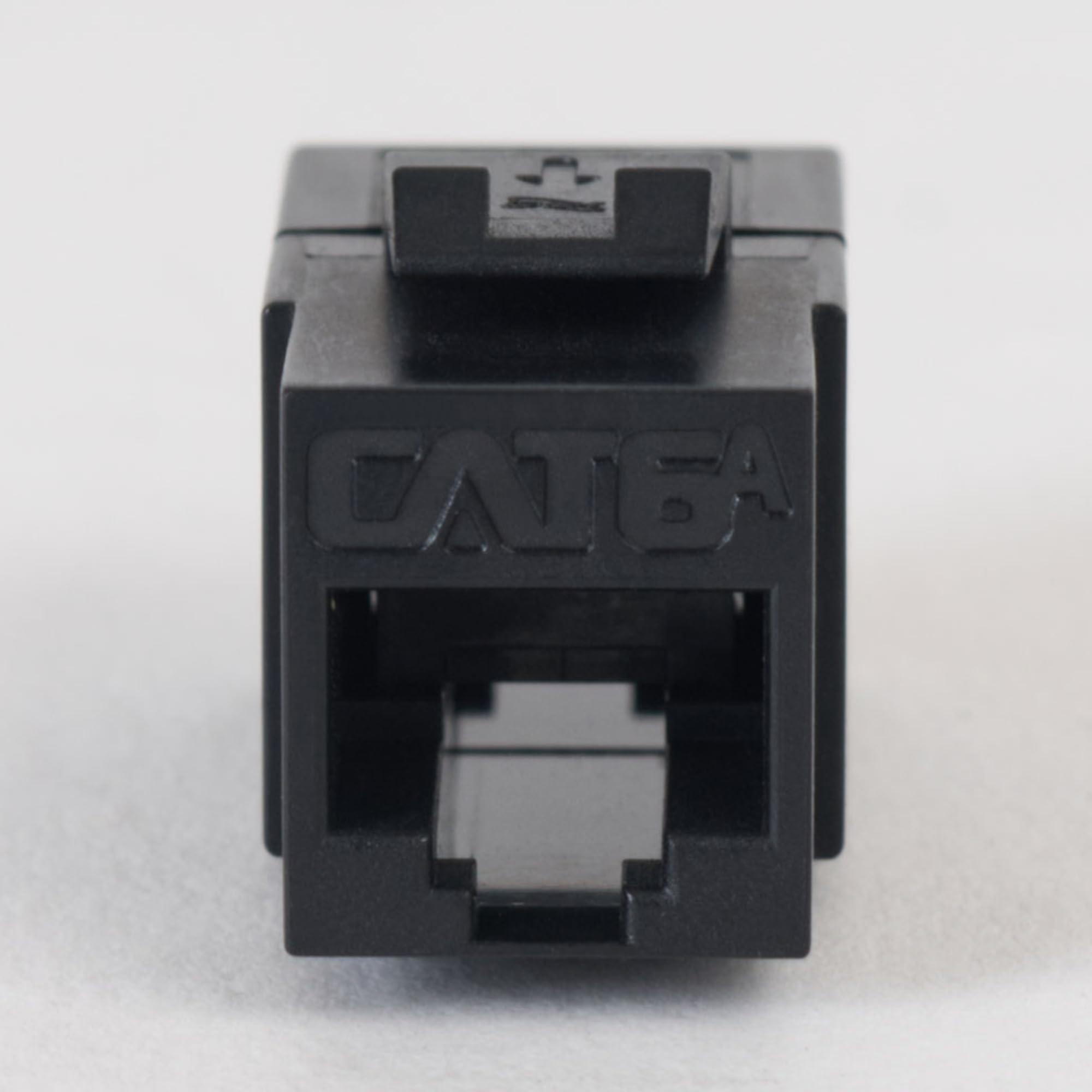

Category 6A RJ-45/RJ-45 UTP coupler module has been tested to ensure that it surpasses ANSI/TIA-568-C.2 Category 6A specifications without degradation in performance. High-density (HD) style designed to be compatible with all ICC faceplates, surface mount boxes, and blank patch panels. Features: Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts. Provides pin 1-1 RJ-45 CAT6A coupling. High-density footprint allows for greater connectivity in tight spaces. Works with all Work Area Outlets faceplates, inserts, surface mount boxes. Backwards compatible with lower category-rated systems (CAT6 & CAT5e) Specifications: Transmission Performance: Meet all requirements specified in channel requirement of ISO/IEC 11801, class E, ANSI/TIA-568-C.2, CAT6 Electrical: Electrical Insulation Transmission: 500 min at 100v D.C Dielectric Withstanding Voltage: 1000v D.C. or A.C. peak contact to contact at 60hz for 1 min Mechanical: Insertion/Extraction Life : 750 cycles minimum Physical: Housing High Impact, flame retardant plastic, UL 94V-0 Spring Wire: Phosphor Bronze Alloy Plated with 50 Micro-Inch of Gold Color: Color XX: BK-Black, WH-White
