Description
- IDC TERMINATION: Uses insulation displacement connectors (IDC) to terminate 25 pairs of wires onto 25 polarized pins, ensuring secure and stable mechanical connections.
- SECURE CONNECTIONS: Features two 50-pin IDC telco connectors (RJ21) with high-strength copper alloy contacts, plated with 30 micro-inches of gold over nickel for reliable signal transmission.

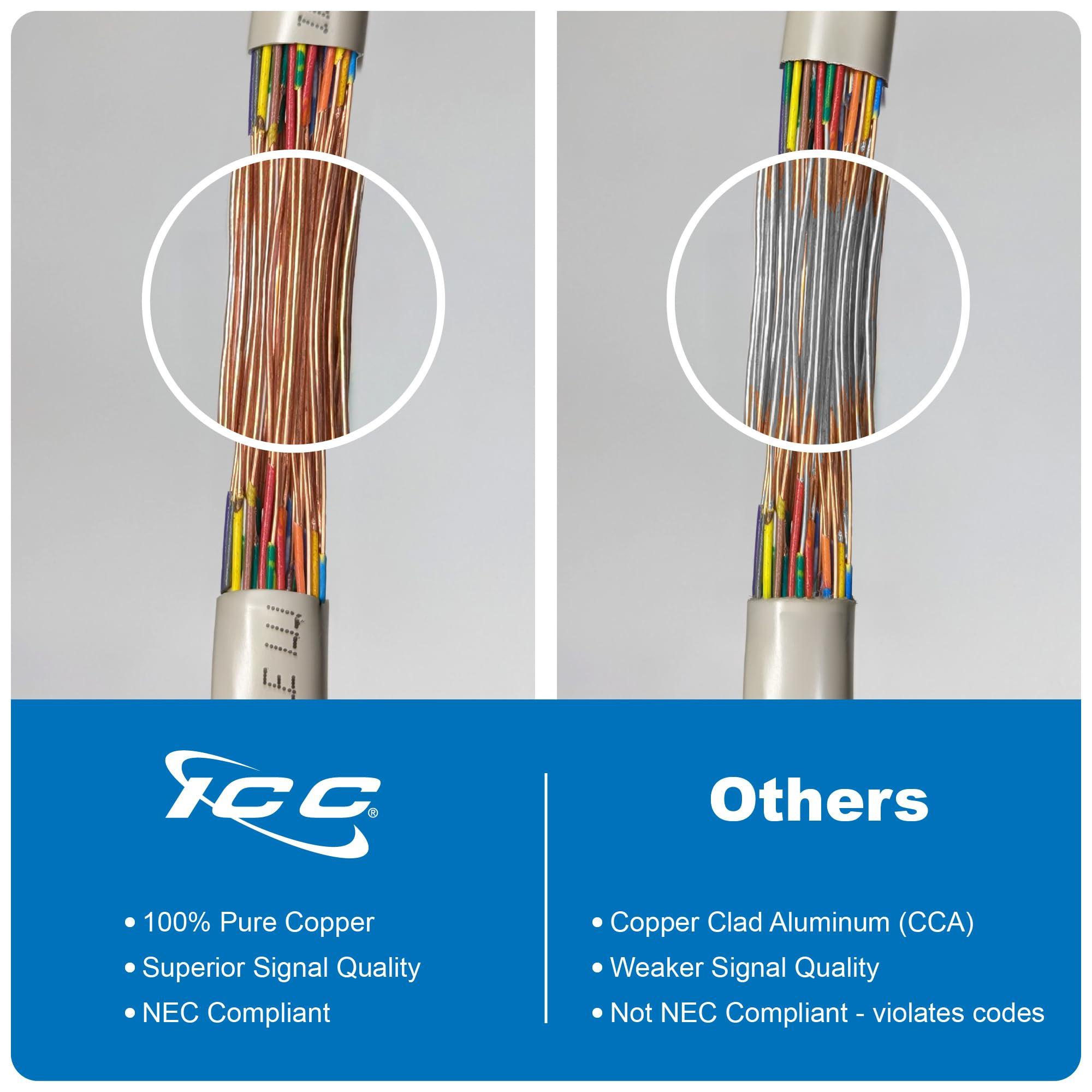

- NATIONAL ELECTRICAL CODE (NEC) COMPLIANT: Built with 100% annealed solid bare copper conductors, meeting NEC Section 800.179, which mandates that "Conductors in communications cables, other than coaxial, shall be copper." Rated for 75C and 300V, ICC cables ensure stable network communications while reducing fire hazards.
- 90-DEGREE CONNECTORS: Equipped with 90-degree 50-pin male and female telco connectors (RJ21) in a standard CN50 form factor, featuring protective hoods for secure connections in compact spaces.
- UL LISTED: Certified under UL listing E125268 and CMR riser-rated for flame resistance, allowing installation in vertical cable runs between floors.
The ICC Cat3 Female-to-Male Telco Cable Assembly is designed for reliable voice and low-data applications, including PBX, telephone, and IP phone systems. This assembly features a 25-pair 24 AWG unshielded twisted pair (UTP) Category 3 cable with 100% annealed solid bare copper conductors, making it NEC Section 800.179 compliant, which mandates that "Conductors in communications cables, other than coaxial, shall be copper." Rated for 75C and 300V, it ensures stable network communications while reducing fire hazards. The cable is terminated with one 50-pin female and one 50-pin male IDC telco connector (RJ21) featuring high-strength copper alloy contacts, plated with 30 micro-inches of gold over nickel for durability and conductivity. The connectors are configured as 90-degree Amphenol-type Centronics 50 (CN50) female and male connectors with protective hoods, making them ideal for compact installations. The cable is UL listed (E125268) and CMR riser-rated for flame resistance, allowing for safe vertical cable runs through risers. Compatible with ICC pre-wired 66 blocks and telco patch panels, this cable provides a secure and professional-grade connection for voice and low-data networks.
