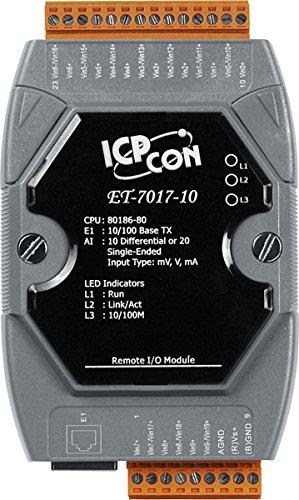

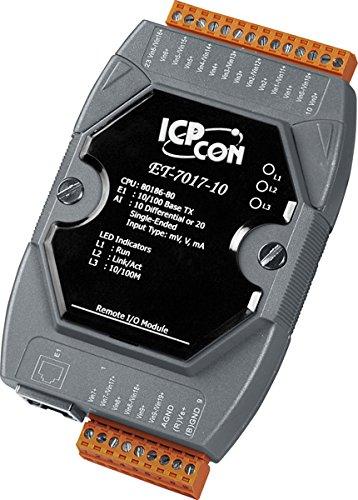

ICP DAS ET-7017-10: 10/20 Channel Voltage & Current Analog Input Data Acquisition Module with High Voltage Protection and 4 Digital outputs

$ 1,056.09
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • ETHERNET I/O WITH ANALOG INPUT: Web-based Ethernet I/O data acquisition module with 10/20 Channel Voltage & Current Analog Input with 2-way Isolation. Support input types: +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA, 0~20mA and 4~20mA
  • EASY USE AND CONFIGURATION: Built-in web server allows configuration, I/O monitoring and control via a web browser. No programming skills are required. Simple user-interface. Easy access anytime anywhere.

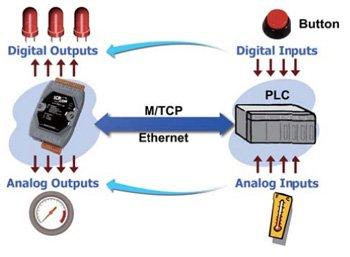

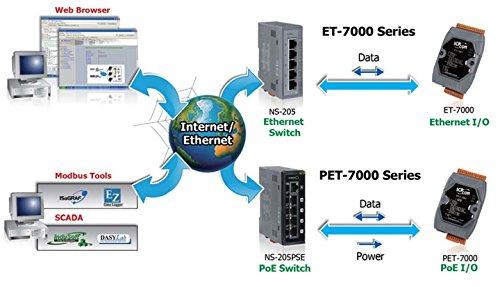

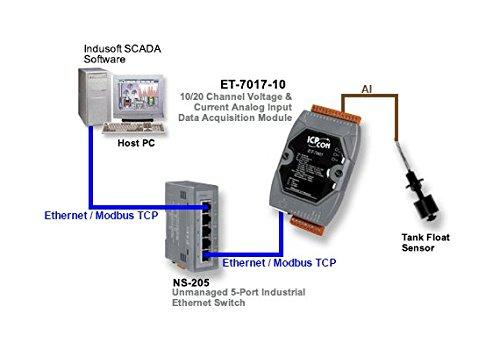

  • FLEXIBLE CONNECTION: Communicable over Ethernet and Modbus TCP Protocol. Seamlessly integrate with existing SCADA and HMI systems.
  • FREE SOFTWARE: Comes with free utility for configuration and free EZ Data Logger software for data logging, control and monitoring applications
  • RICH LIBRARY AND SUPPORT: Comes with tutorials, training videos, and white papers for easy use. Free technical support and one-year warranty provided. 100% customer satisfaction guaranteed.

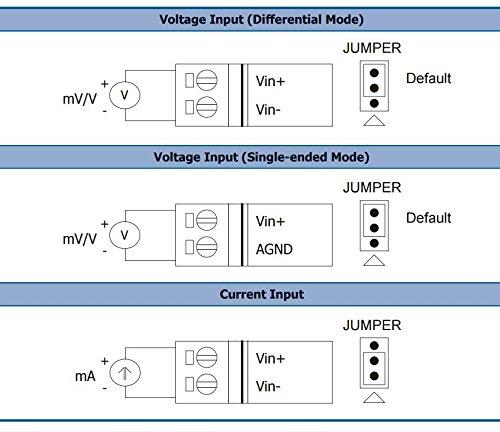

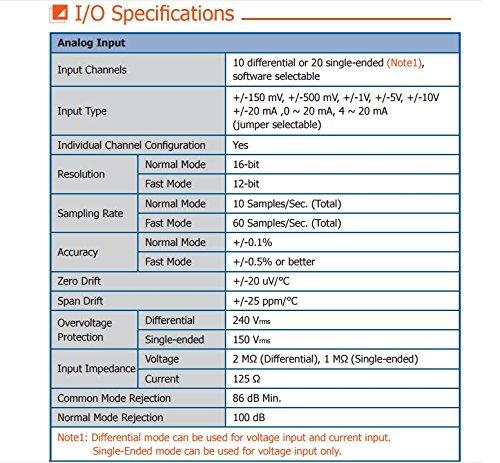

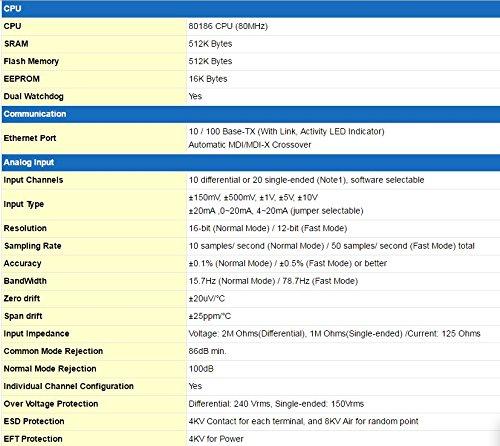

The ET-7017-10, a web-based Ethernet I/O module, is a 10/20 Channel Voltage & Current Analog Input Data Acquisition Module with High Voltage Protection and 4 digital outputs, communicable over Ethernet and Modbus TCP Protocol. Supports operating temperatures between -25 to 75C. It features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7017-10 offers easy and safe access for users from anytime and anywhere! In addition, ET-7017-10 also supports Modbus/TCP protocol that makes seamless integration to SCADA software. The ET-7017-10 is a 16-bit, 10-channel differential or 20-channel single-ended analog inputs module that provides programmable input range on all analog channels(+/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V, +/-20mA, 0~20mA and 4~20mA). Each analog channel is allowed to configure an individual range and has 240Vrms high over voltage protection. Jumper selectable for voltage or current input. More info: http://www.icpdas-usa.com/et_7017_10.html?r=amazon
