waveshare Binocular Camera Module Dual IMX219 8 Megapixels Stereo Vision Depth Vision Supports Jetson Nano Developer Kit B01and Fits Raspberry Pi CM3/CM3+ Expansion Boards for AI Vision Applications

$ 100.33
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description

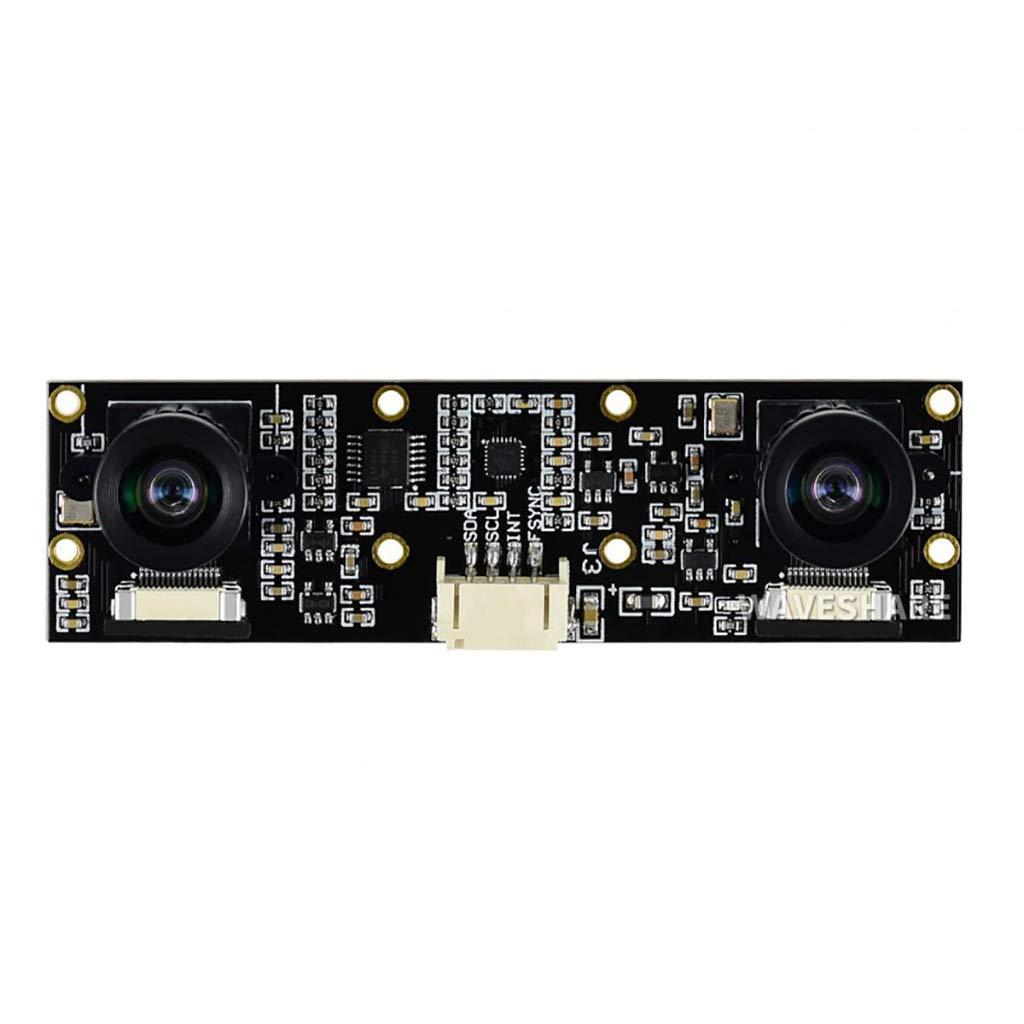

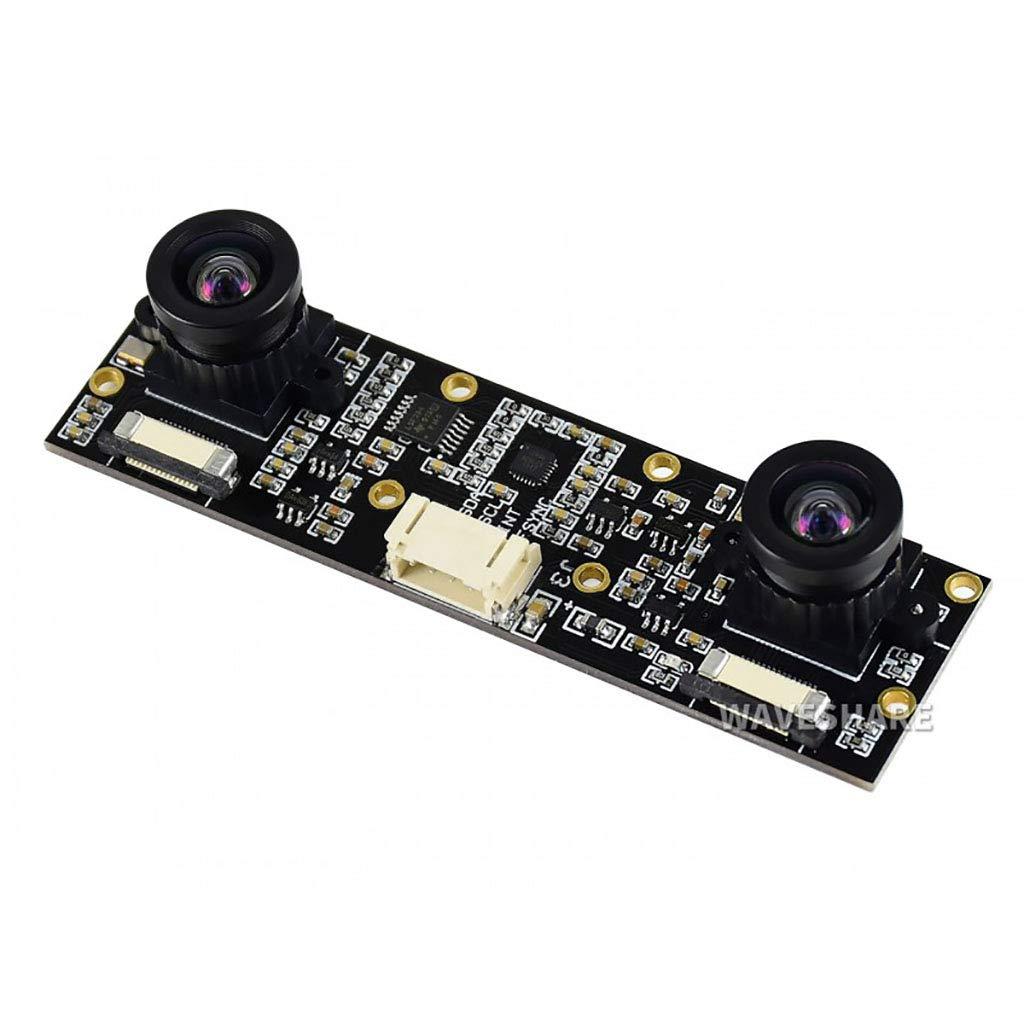

  • This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera.
  • It is suitable for AI vision applications like depth vision and stereo vision.

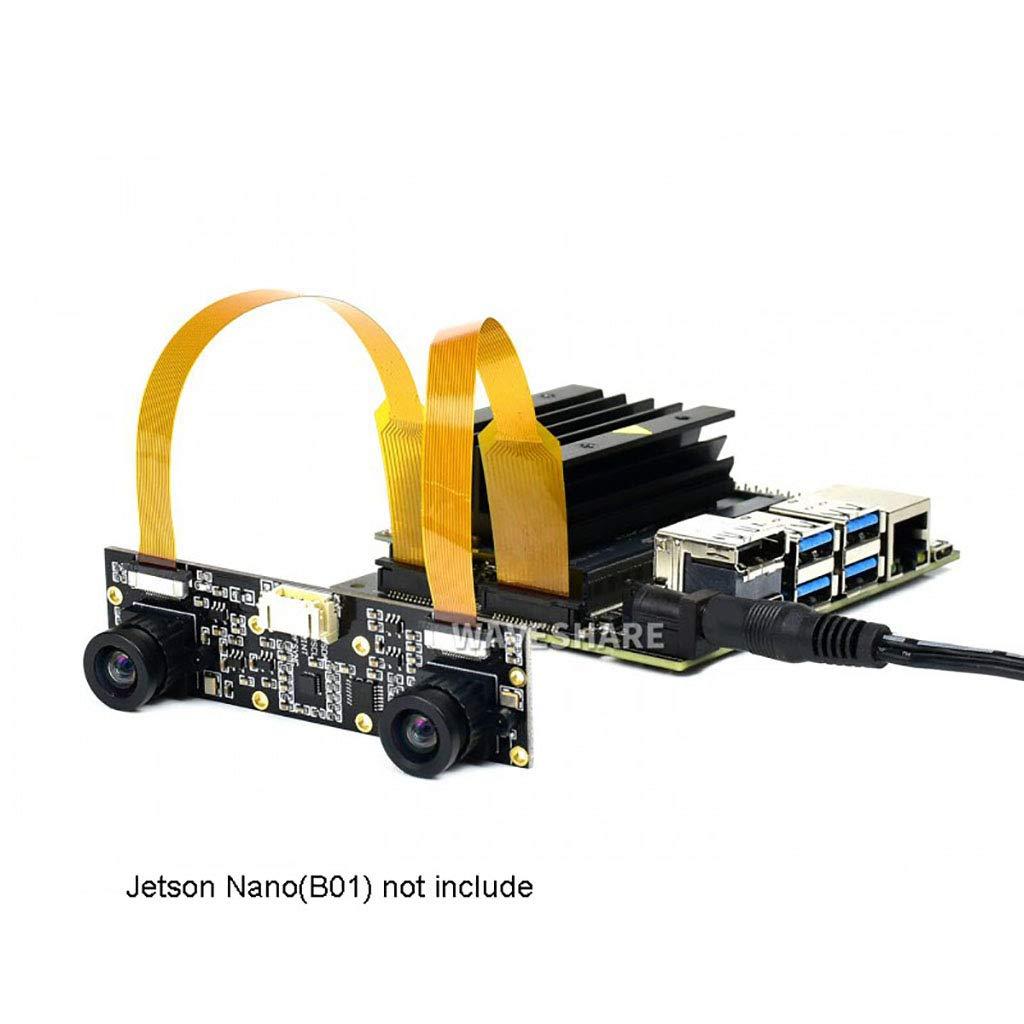

  • The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.


Specifications

8 Megapixels Sensor: Sony IMX219 Resolution: 3280 2464 (per camera) Lens specifications: --CMOS size: 1/4inch
--Focal Length: 2.6mm
--Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
--Distortion: <1%
--Baseline Length: 60mm
ICM20948: --Accelerometer:
---Resolution: 16-bit
---Measuring Range (configurable): 2, 4, 8, 16g
---Operating Current: 68.9uA
--Gyroscope:
---Resolution: 16-bit
---Measuring Range (configurable): 250, 500, 1000, 2000/sec
---Operating Current: 1.23mA
--Magnetometer:
---Resolution: 16-bit
---Measuring Range: 4900T
---Operating Current: 90uA
Dimension: 24mm 85mm

Applications

AI vision applications like depth vision and stereo vision.

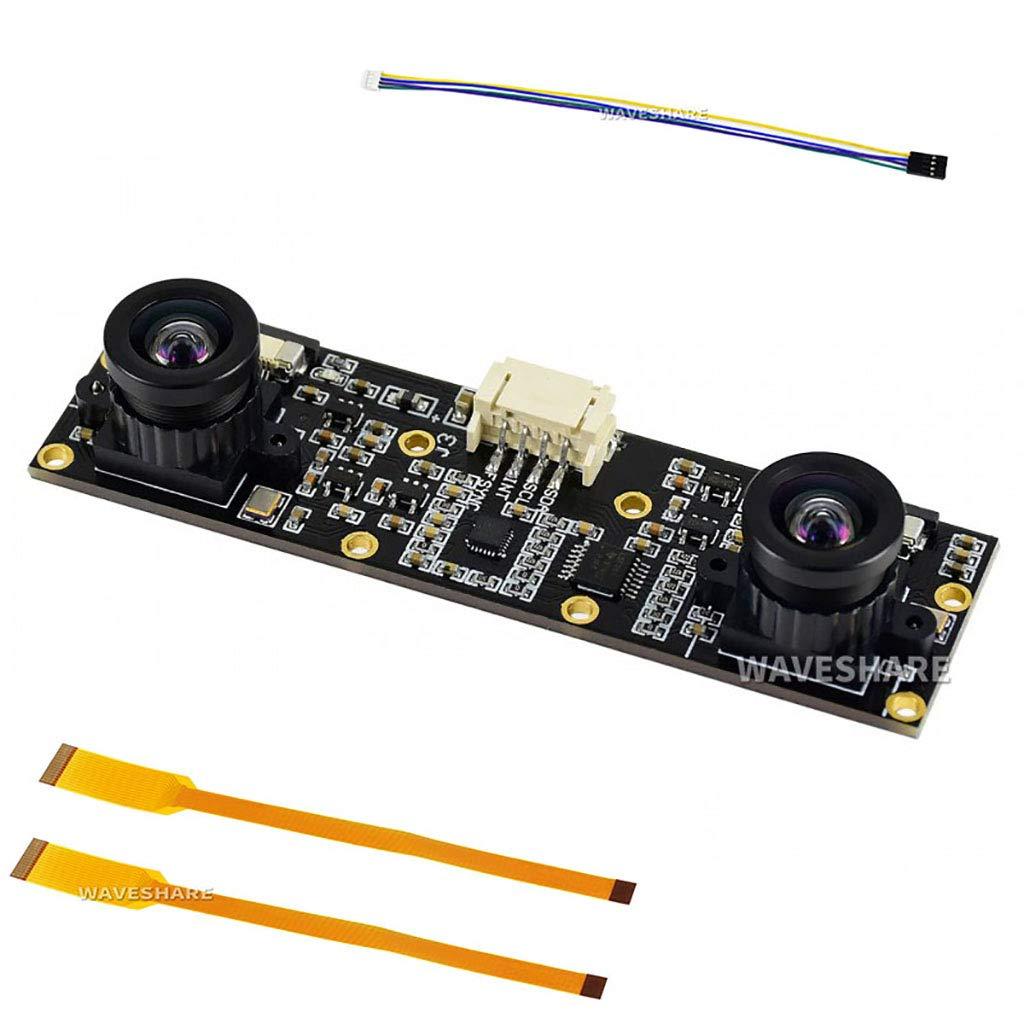

PACKAGE CONTENT

1. IMX219-83 Stereo Camera x1

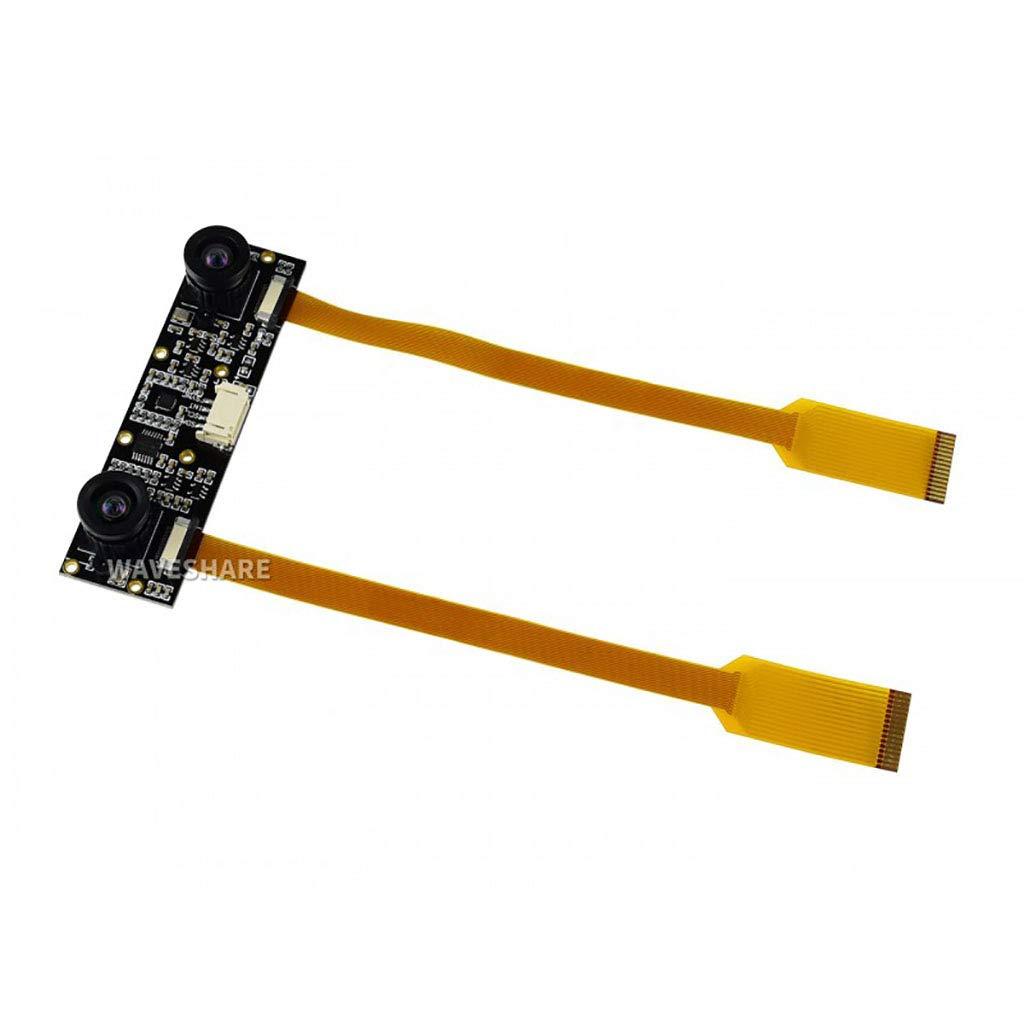

2. FFC (2PCS) x1
3. PH2.0 4PIN wire x1
