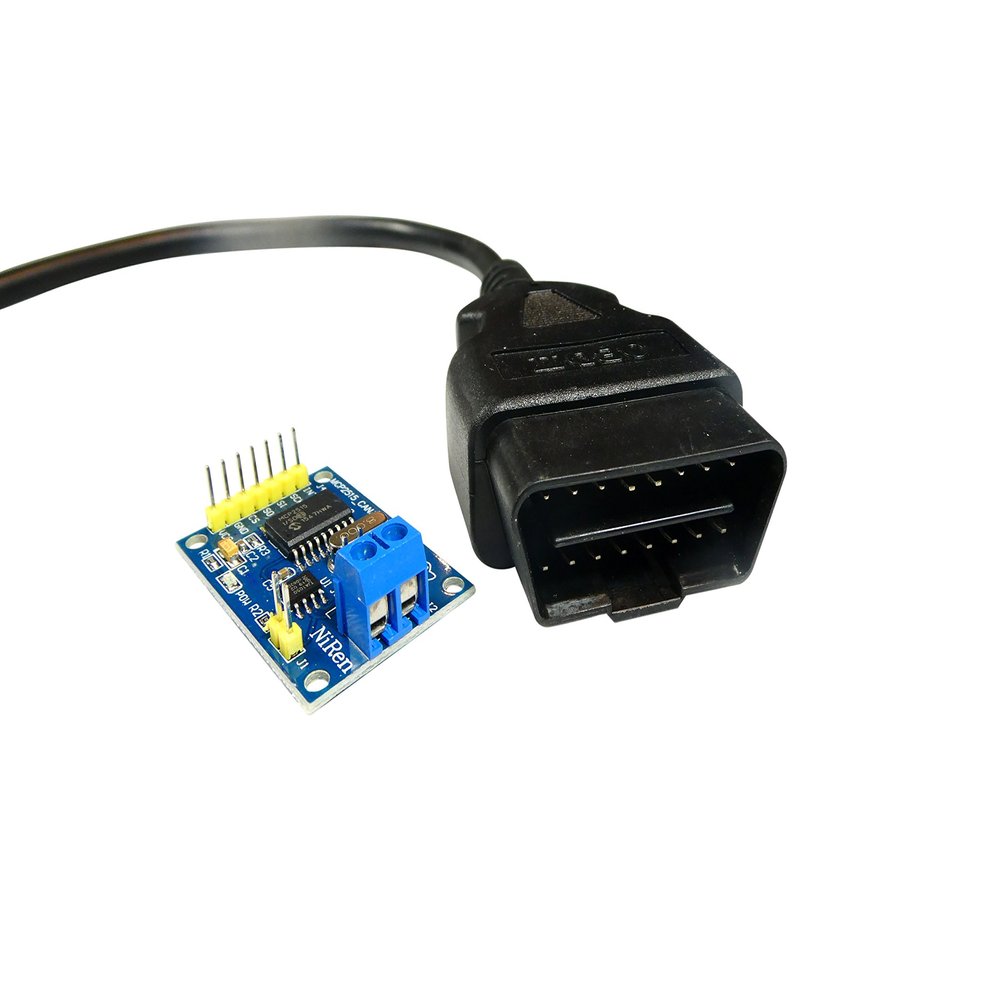

[initeq] 30cm 16 Pin OBDII OBD2 Diagnostic Connector Cable Pigtail, Male (typical car adapter) with MCP2515 CAN Bus Transceiver (Male)

Description

• 30cm Length (Approximately 11in-1ft)
• Includes MCP2515 CAN bus transceiver module
• Male and Female variants available
• Great for Arduino/Raspberry Pi Vehicle Diagnostics Interface

16-Pin OBDII connector pigtail
Used to connect your device to an OBD2-compatible vehicle diagnostic port

Includes MCP2515 CAN bus transceiver module

Pinout:
PIN 1 (GRAY) - Manufacturers discretion PIN 2 (BRN/WHT) - SAE J1850 Line (Bus +) * PIN 3 (LT GRN) - Manufacturers discretion PIN 4 (LT BLU) - Chassis Ground PIN 5 (YELLOW) - Signal Ground PIN 6 (PURPLE) - SAE J2284 (CAN High) * PIN 7 (BLK/WHT) - K Line of ISO 9141-2 & ISO/DIS 4230-4* PIN 8 (RED/WHT) - Manufacturers discretion PIN 9 (PINK) - Manufacturers discretion PIN 10 (BRN) - SAE J1850 Line (Bus -) * PIN 11 (GREEN) - Manufacturers discretion PIN 12 (DRK BLU)- Manufacturers discretion PIN 13 (ORANGE) - Manufacturers discretion PIN 14 (WHITE) - SAE J2284 (CAN Low) * PIN 15 (BLACK) - L Line of ISO 9141-2 & ISO/DIS 4230-4* PIN 16 (RED) - Unswitched Vehicle Battery Positive

Male version is required for direct connection to most vehicles.
