Description
- 10/100/1000 auto-sensing Auto MDI-X ports automatically detect optimal network speeds
- High performance, half and full duplex, with zero packet loss
- Full flow control support provides optimum performance
- * Auto-learning of network configuration. * Supports up to 8192 MAC address entries. * 128 kBytes buffer memory
- * Supports jumbo frames up to 9 kBytes. * Store and forward switching architecture. * Non-blocking wire-speed forwarding and filtering
Specifications
Standards
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control and Backpressure)
General
ANSI/IEEE 802.3 NWay
auto-negotiation
Non-blocking, store and forward switching architecture
Backpressure flow control for half duplex mode on 10/100 Mbps ports

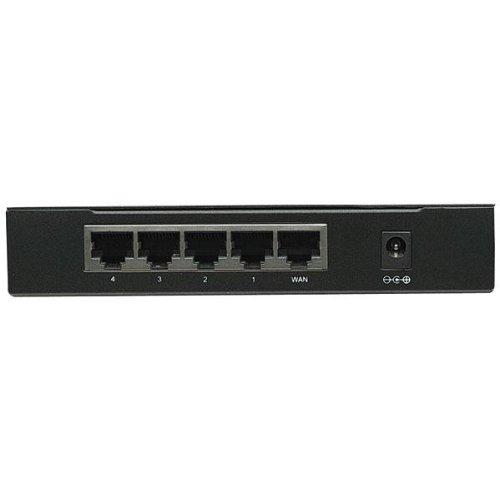

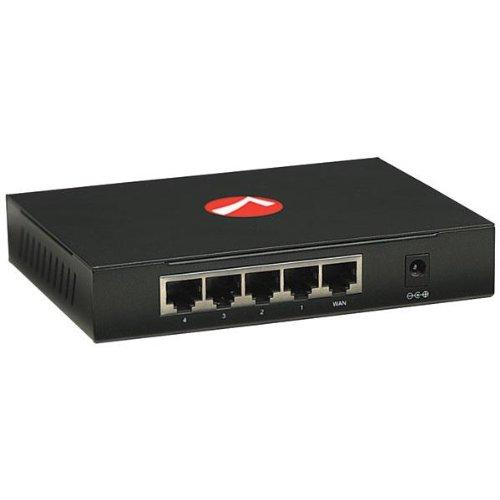

Connectors: 5 10/100/1000 Mbps RJ45 ports
Switch architecture: store and forward switch technology
Network cables:
- 10Base-T: Cat3, 4, 5 UTP/STP
- 100Base-TX: Cat5 UTP/STP
- 1000Base-T: Cat5e UTP/STP
Certifications: FCC Class B, CE, RoHS
Performance
Filter/forward rate
- 10Base-T: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,488,000 pps (packets per second)
Package Contents
5-Port Gigabit Ethernet Switch
External power adapter
User Manual
