ION-R100S Single Monitor HD Secure Display Station, Single HD Monitor Output (HDMI), Output Resolution Up to 4K, Display Up to 16 Video Tiles, Supports Up to 32 IP Cameras/Encoder Sources

Description

• Single HD monitor output (HDMI)
• Camera discovery & RTSP source support
• Supports up to 32 IP cameras/encoder sources
• High performance hardware video decoding
• Create up to 5 views / layouts and 4 sequences

ION-R100S Single Monitor HD Secure Display Station, Single HD Monitor Output (HDMI), Output Resolution Up to 4K, Display Up to 16 Video Tiles, Supports Up to 32 IP Cameras/Encoder Sources

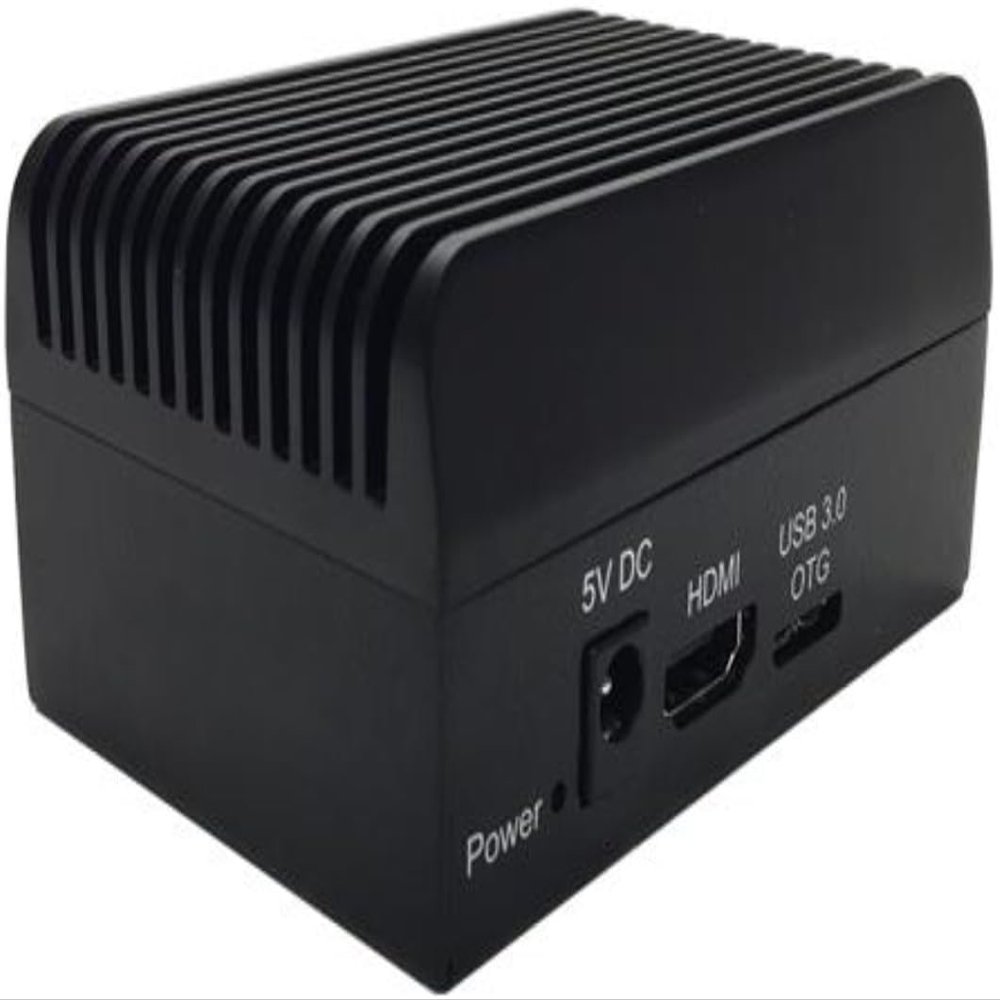

The ION-R100S is a dedicated fanless & compact video decoder designed specifically for use with any H.265/H.264/MJPEG video source such as IP cameras and encoders. The ION-R100S is capable of decoding H.265/H.264 streams at resolutions up to 4K for display on an HD monitor (HDMI). The device is capable of simultaneous decoding and display of up to 16 IP video streams.

KEY FEATURES
- Ultra compact & fanless design
- Single HD monitor output (HDMI)
- Output resolution up to 4K
- Display up to 16 video tiles
- Camera discovery & RTSP source support
- Low Power Consumption
- Supports up to 32 IP cameras/encoder sources
- High performance hardware video decoding
- Create up to 5 views/layouts and 4 sequences
- Decode IP video streams up to 54 Mbps
- Supports up to 5 user configurable static views
- Supports up to 4 user configurable view sequences
- Supports web tiles for embedding external content
- VESA mount and power supply included

SPECIFICATIONS
- Resolution: Decode IP streams up to 4K resolution
- Codec: H.265 (HEVC)/H.264 (MPEG-4 AVC) Motion JPEG
- Data Rates: Up to 42 Mbps (total for all channels
- Latency: <200ms
- Layouts: 1x1, 2x2, 3x3, 4x4, 1+2, 2+3, 1+5, 5+1 and more
- Web Tiles: Supported; max. 1 recommended
- Network: 1x 10/100/1000 Base-T Ethernet port(s) RJ45
- USB: 1x USB 3.0 (Future expansion), 4x USB 2.0 (Mouse, Keyboard)
- Video Output: 1x Full Size HDMI 1.4
- Boot Drive: Solid State Boot Drive (SSD)
- PTZ Keyboard: Support for Panasonic WV-CU980 Network Keyboard
- Power Consumption: 6W on average / TDP
- Operating Temp.: 0C to 50C
- Dimensions 3.74"W x 2.58"D x 1.77"H
