Description
- Includes JBL CLUB-A6001A High performance mono subwoofer car amplifier, JBL Stage1220BAM Stage Series Dual 12 Inch Ported Loaded enclosure - 500 Watt, 2-Ohm, and wiring kit
- JBLSTAGE1220BAM - Power handling: 500 watts RMS/1000 watts peak
- JBLSTAGE1220BAM - Power handling: 500 watts RMS/1000 watts peak
- Club-A6001A - The JBL Club A6001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
- Club-A6001A - Speaker-level and low-level inputs allow the Club A6001A to integrate with both aftermarket and factory car stereo systems.

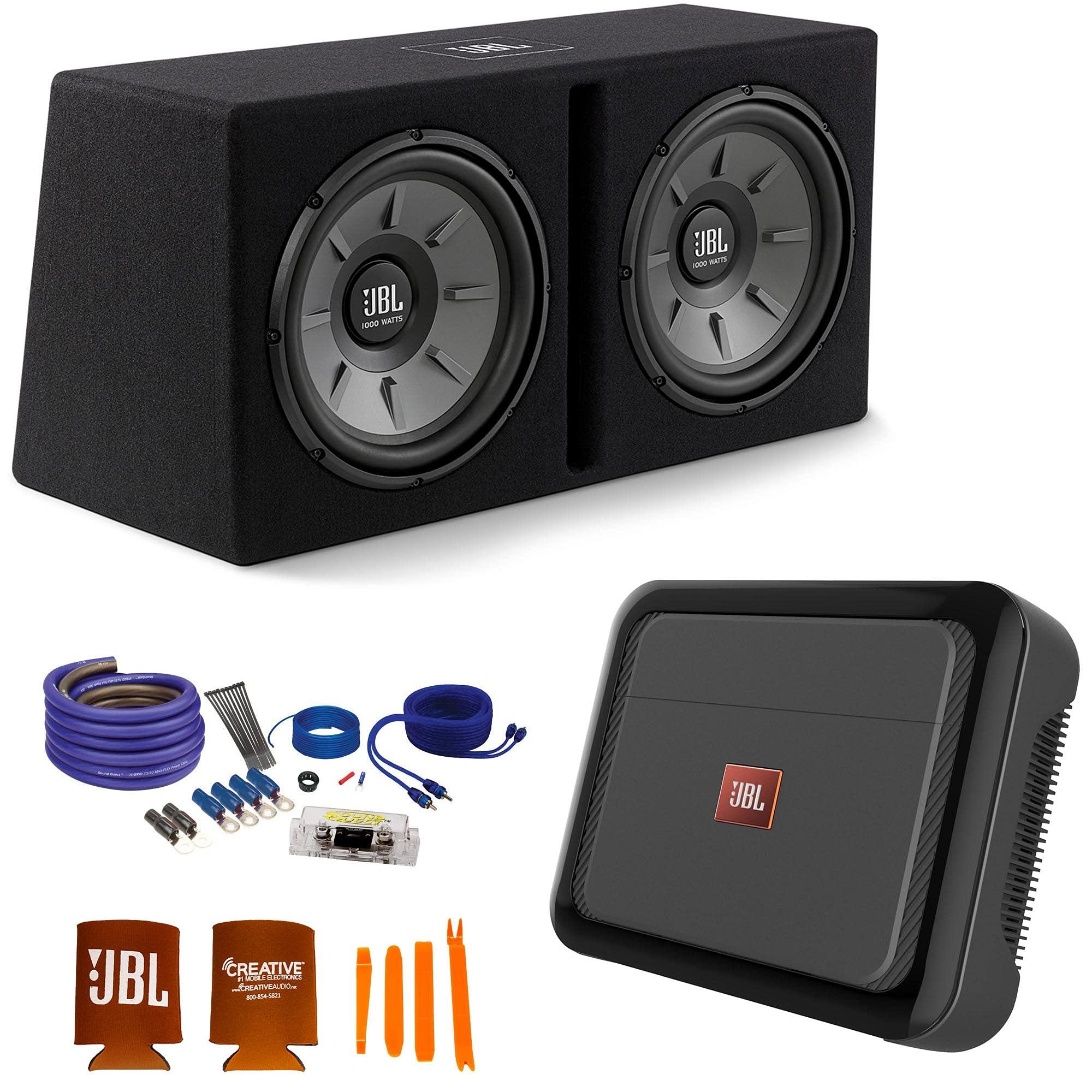

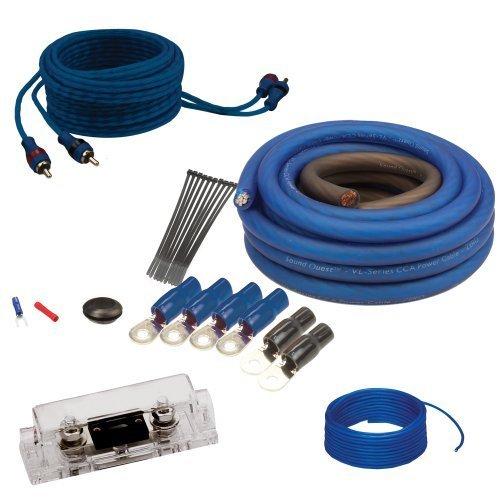

JBL JBLSTAGE1220BAM 2-12" Loaded Subwoofer Enclosure with JBL Club-A6001A 600 Watt Mono Amplifier and Wiring Kit- This bundle includes JBL CLUB-A6001A High performance mono subwoofer car amplifier, JBL Stage1220BAM Stage Series Dual 12 Inch Ported Loaded enclosure - 500 Watt, 2-Ohm, a wiring kit, a pry kit, and a JBL coozy.

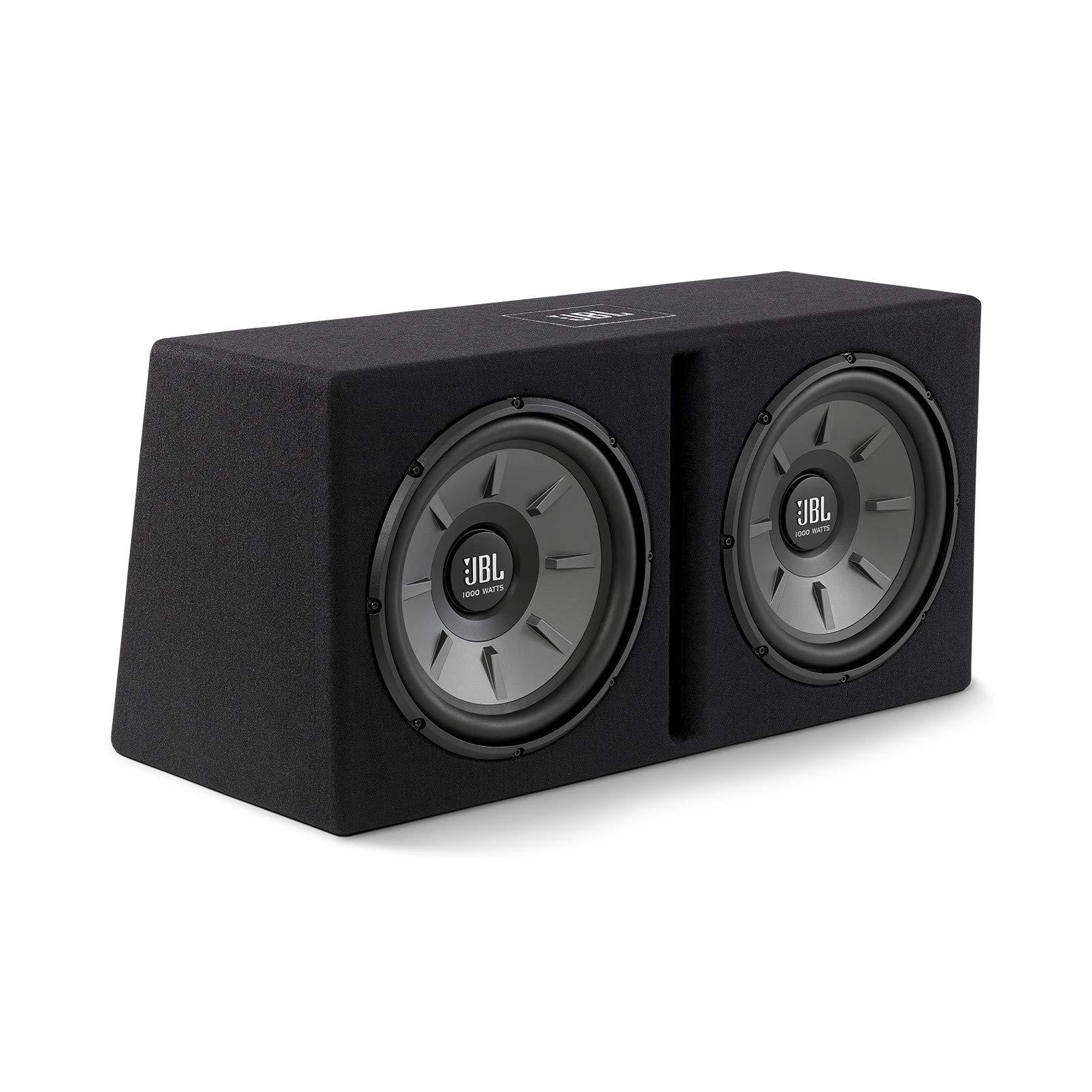

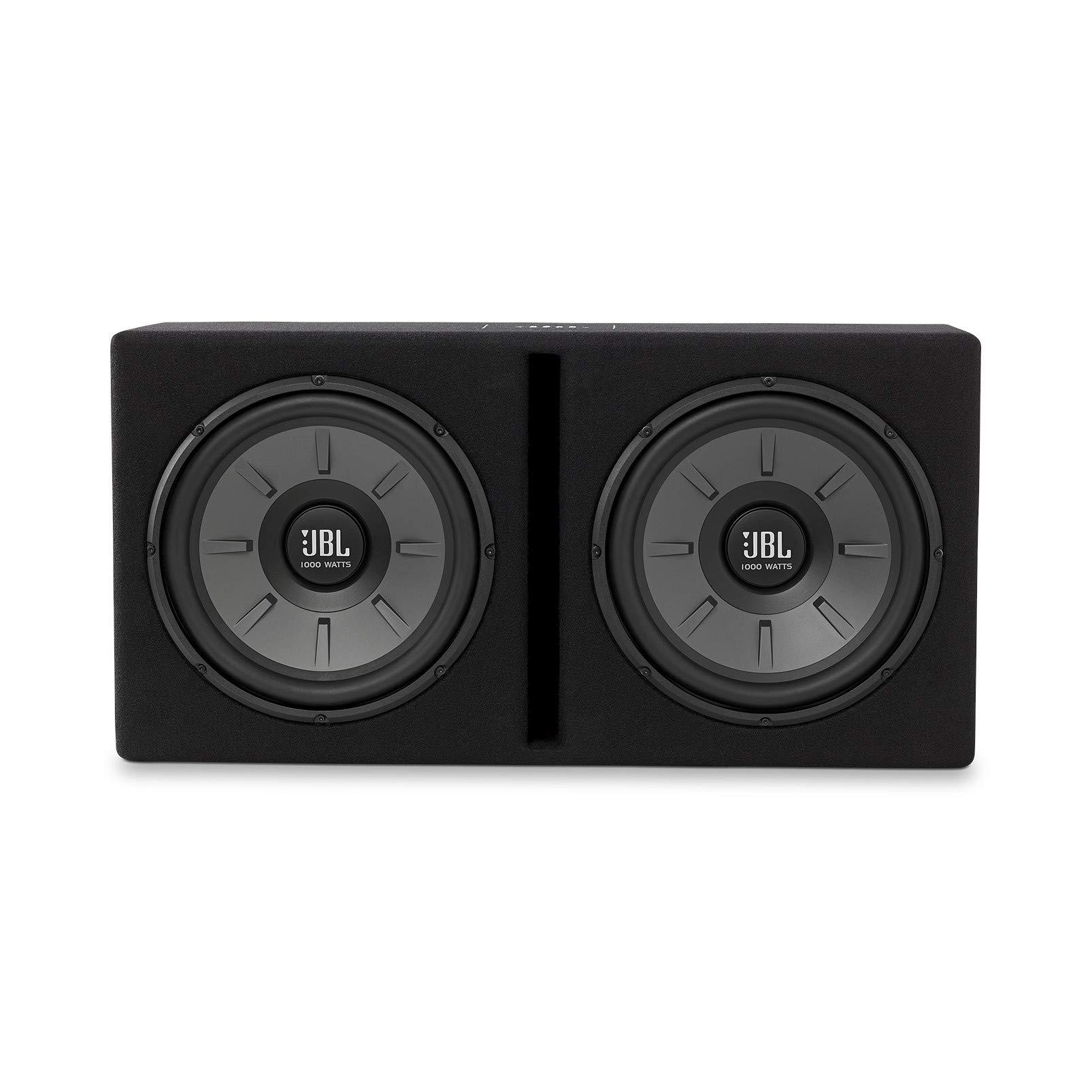

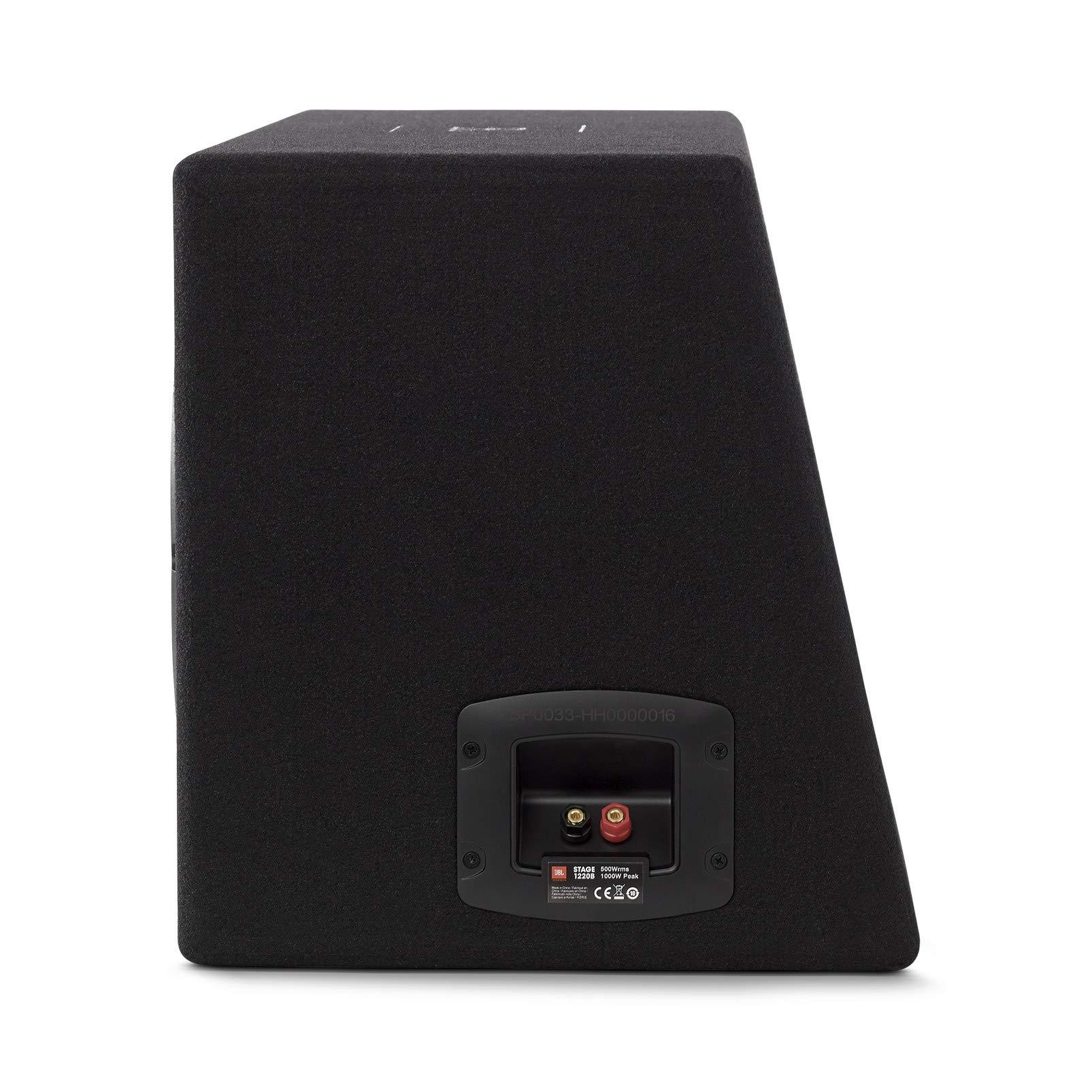

JBL Stage1220BAM Stage Series Dual 12 Inch Ported Loaded enclosure - 500 Watt, 2-Ohm
General Specifications
Power handling500 watts RMS/1000 watts peak
Sensitivity94 dB
Frequency response34Hz - 200 Hz
Nominal impedance2 ohms
Voice coil diameter (each)2" (50.8mm)

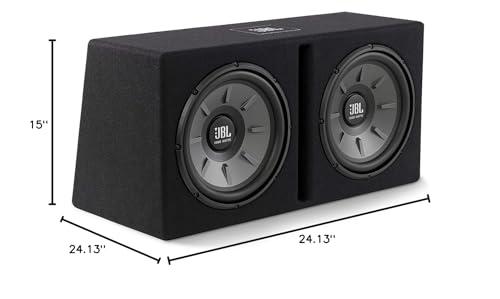

Enclosure dimensions30-1/8"W x 15"H x 13-11/16"D1 x 10-1/2"D2
Enclosure materials5/8" MDF with black carpet covering

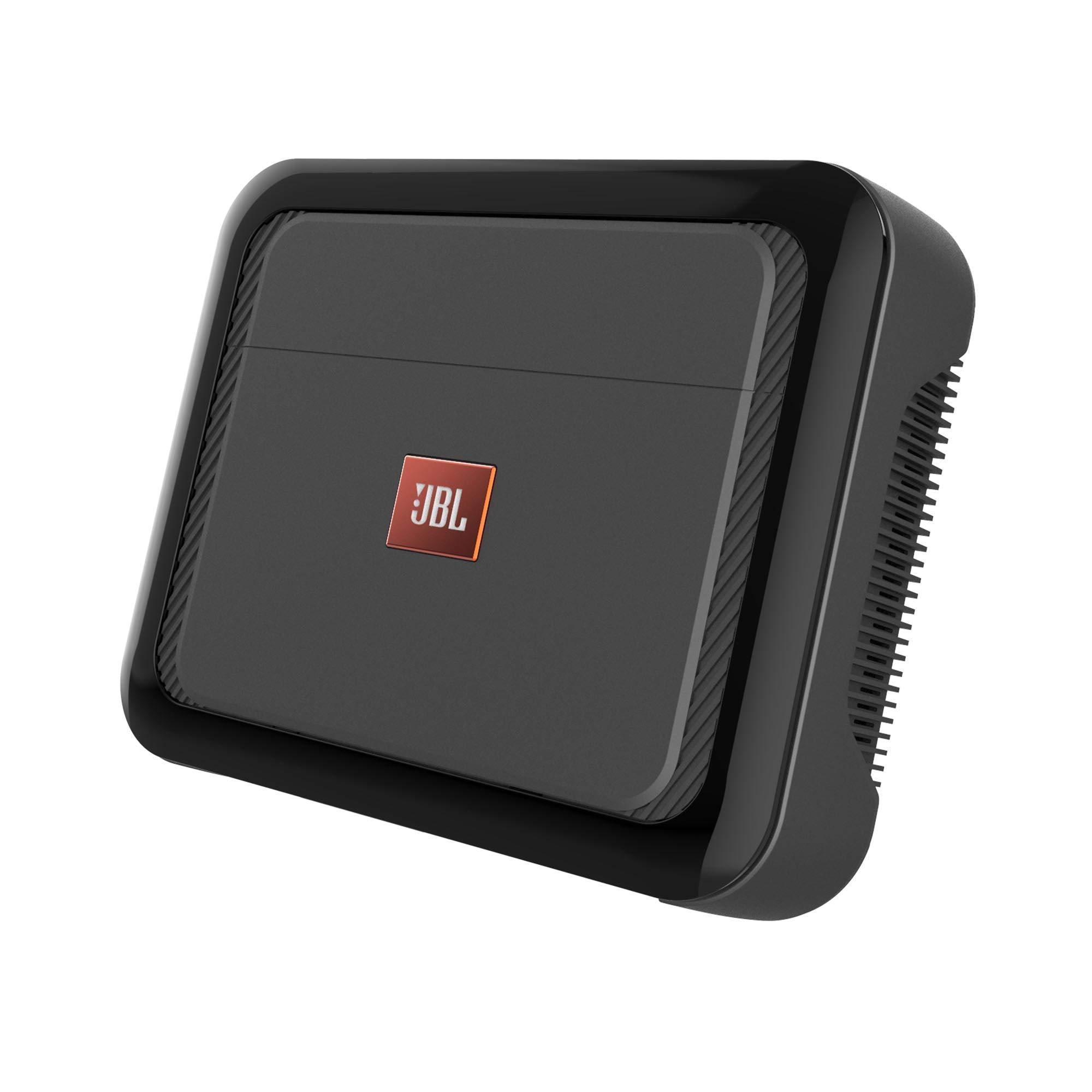

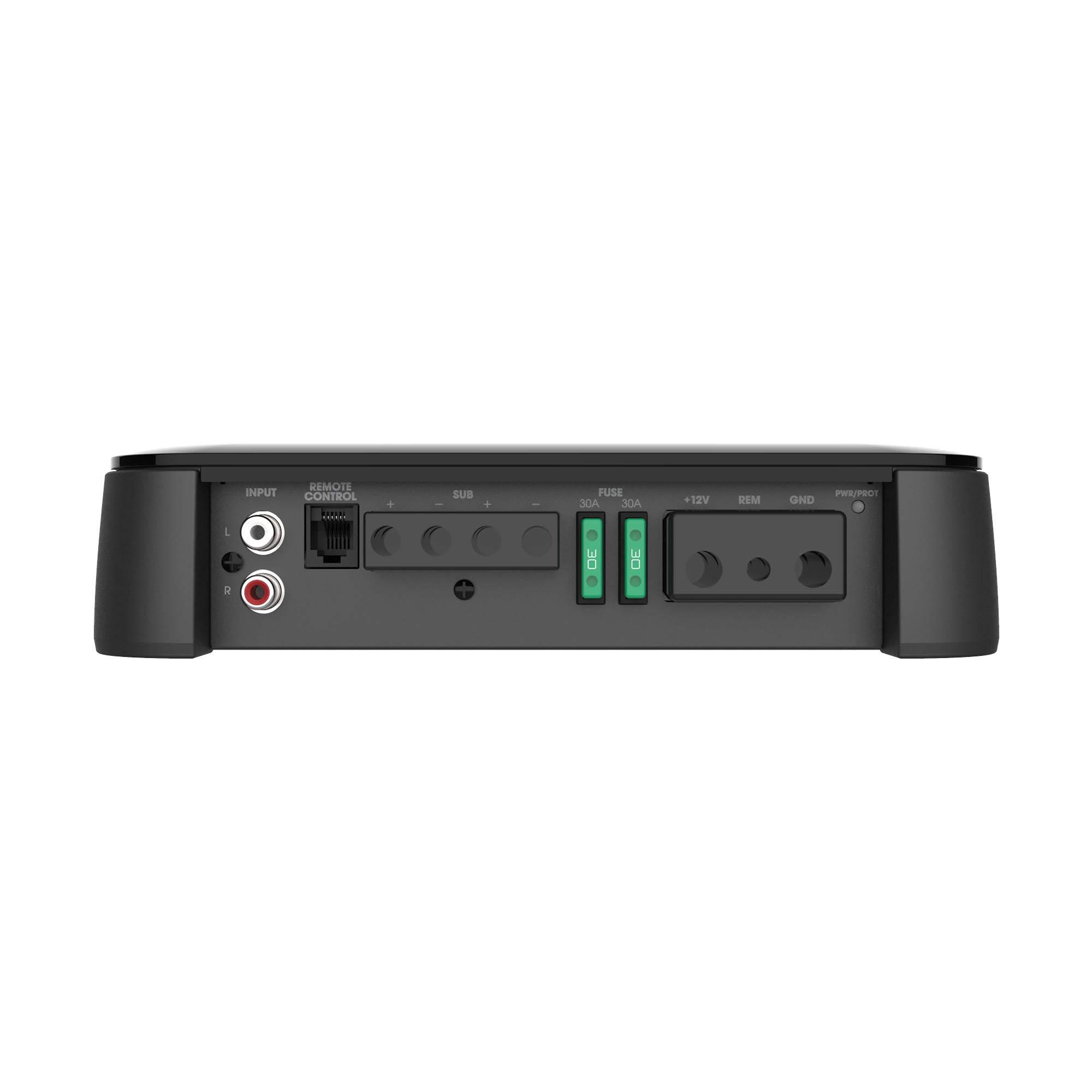

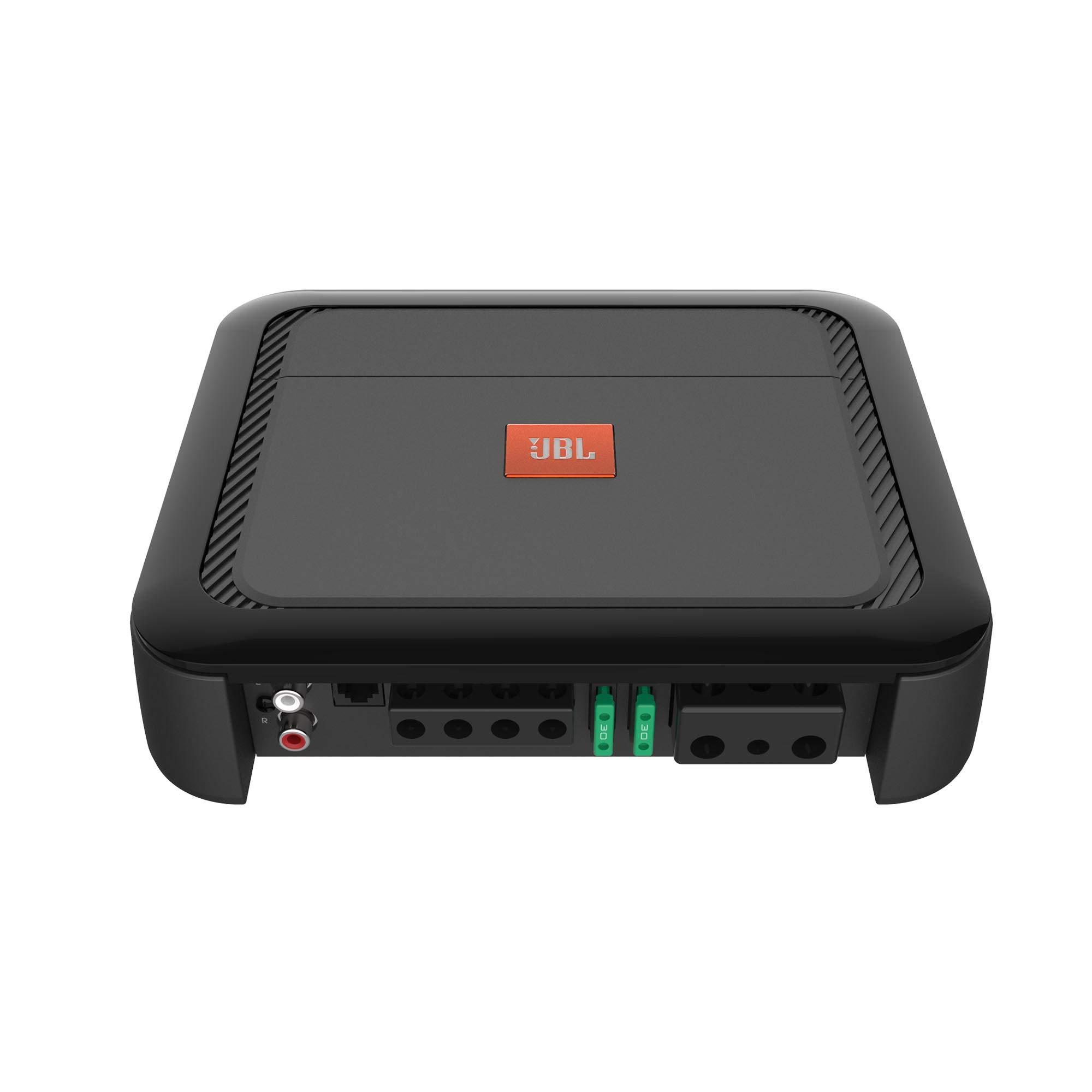

JBL CLUB-A6001A High performance mono subwoofer car amplifier
The JBL Club A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your cars factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
Technical specifications:
Mono subwoofer car amplifier
350 watts RMS x 1 at 4 ohms
(600 watts RMS x 1 at 2 ohms)
Class D amp technology
Variable low-pass filter (32320 Hz, 12 dB/octave)
Variable bass boost (0-12dB at 45Hz)
Phase switch (0, 180 degrees)
Preamp and speaker-level inputs
Fuse rating: 30A x 2
8-gauge power and ground leads recommended wiring and hardware not included with amplifier
W x H x D = 220mm x 51.3mm x 180mm
W x H x D = 8-11/16" x 2-1/16" x 7-1/8"
