Description
- 15 inch Low Frequency Woofer, 90 x 90 Waveguide with a 1 inch exit 1.5" voice-coil diaphragm compression driver. Dual Neutrik NL4 connectors plus screw terminals.
- System Power Rating: 350W (1400W peak), 2 hrs (AES rated). 250W/500W/1000W (Continuous/Program/Peak) (IEC rated). Nominal Impedance: 8 ohms. Maximum SPL (1m): 122 dB (128 dB peak).

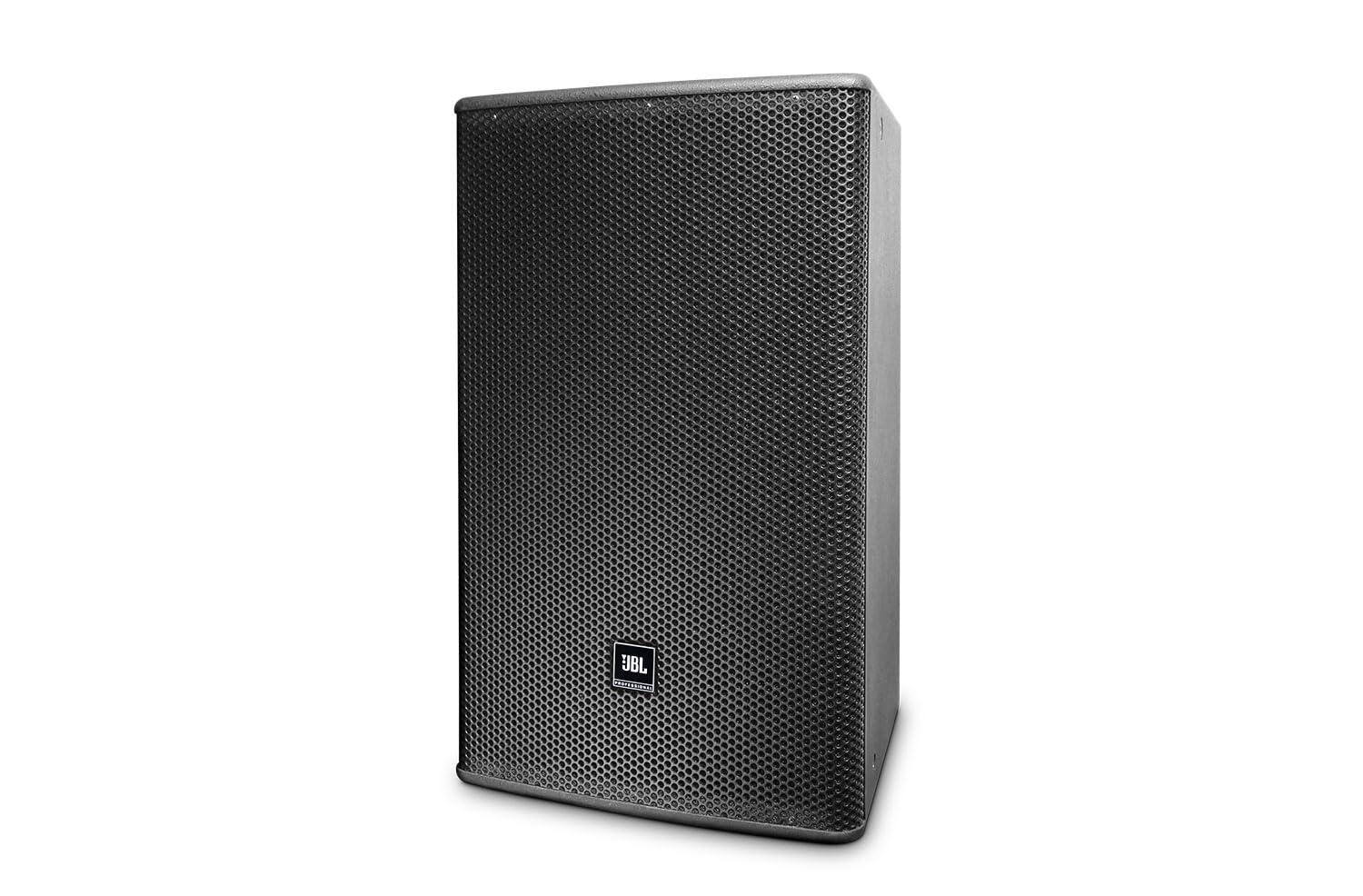

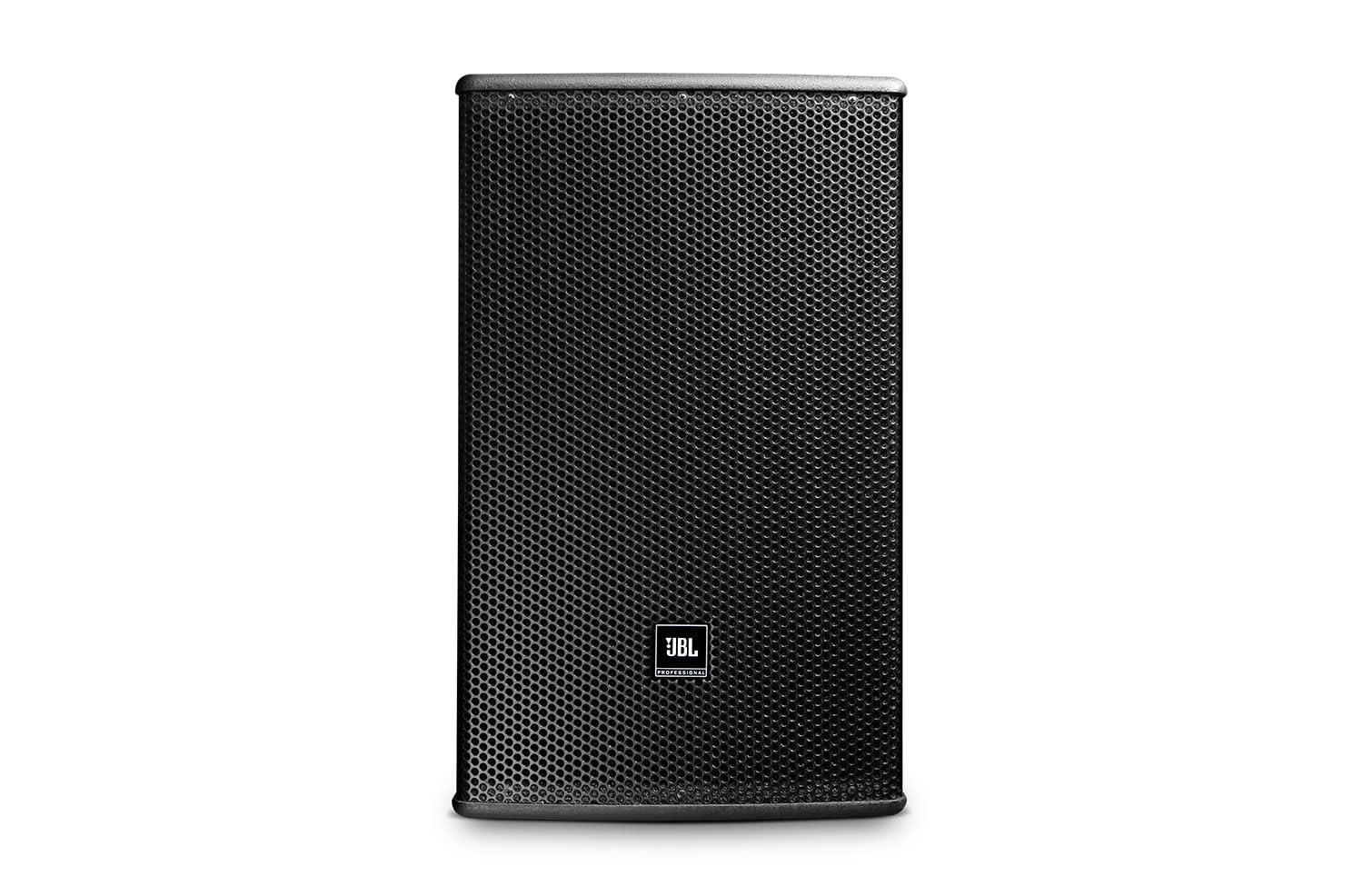

- Robust Enclosure: 15 mm multi-ply hardwood plywood. Finish: Textured black paint finish. Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing.
- Multiple attachment points for ultimate flexibility. Suspension Attachment - 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket.
- Applications: Performing Spaces, Clubs & Bars, Houses of Worship, Multi Media Spaces, Retail & Hospitality Spaces, Presentation Suites, Educational Facilities

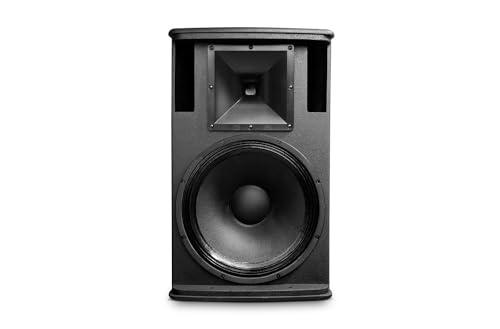

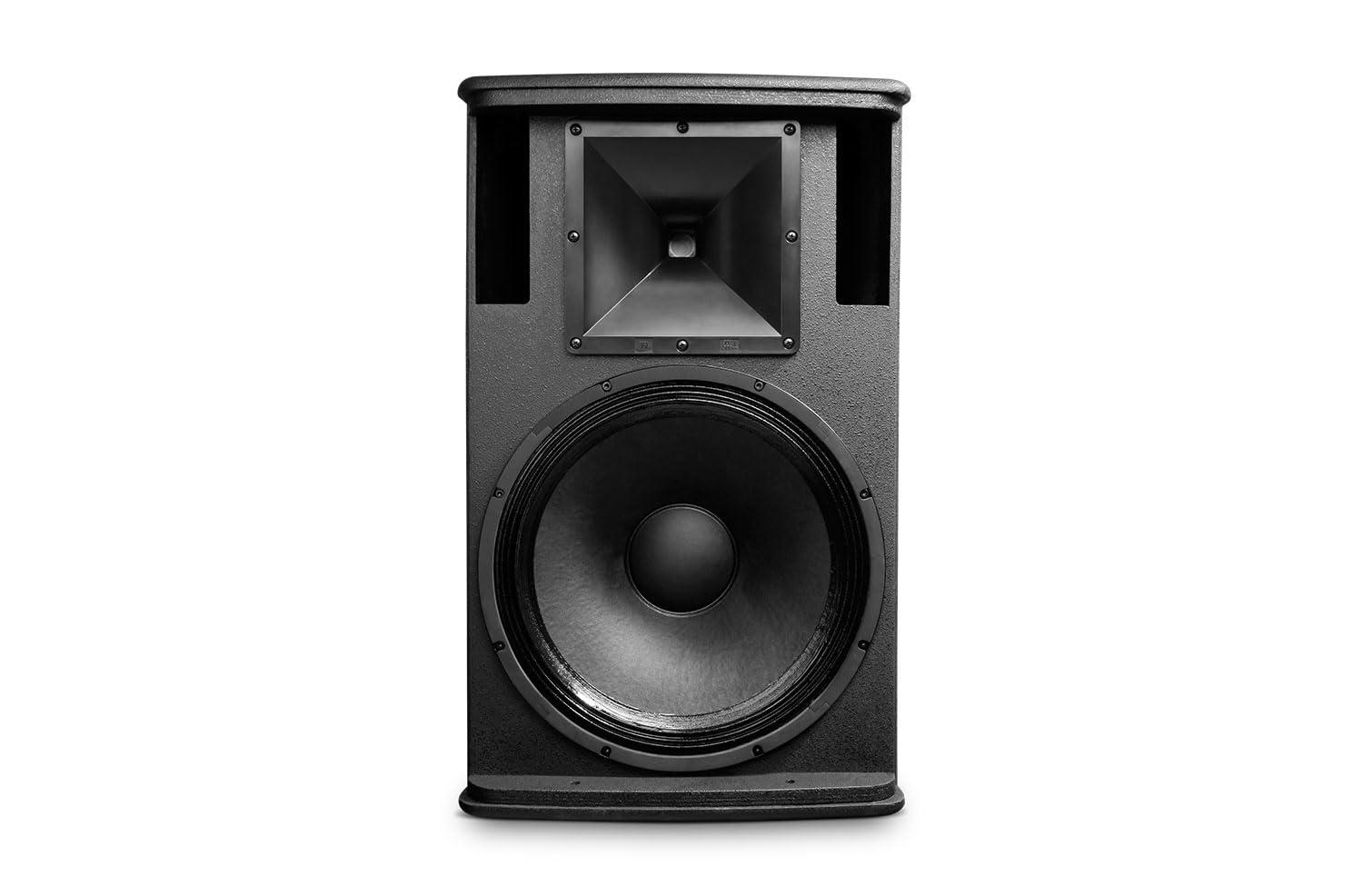

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90 by 90 coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
