Description
- Micro Inlaid MirrorStereo microscope is a continuous variable magnification solid microscope for binocular observation. The lens adopts density high-definition technology. It is specially designed for users who require long working distance, long working time and large observation field.
- Spring bracketwith a spring bracket to provide a humanized operating system, a flexible telescopic mechanical focusing mechanism, and a unique headrest frame to make the operation more convenient and humanized, so that the operator can avoid fatigue and improve work efficiency.
- Objective lens and eyepieceContinuous zoom: 7X-45X; Eyepiece: WF10X; Objective lens: 0.5X; Field of view: 5.1mm~33mm; Binocular interpupillary distance: 55mm~75mm.
- Flexible adjustment Microscope geming diamonds machine: Multyangle telescopic spring support can turn 360 ; The body can be retracted freely; The focal distance can be adjusted up and down.
- Scope of application can be used for observation and analysis in jewelry processing industries, jewelry training schools, and jewelry research departments, and are also suitable for inspection, assembly, and repair of fine parts in the electronics industry and instrumentation industry.

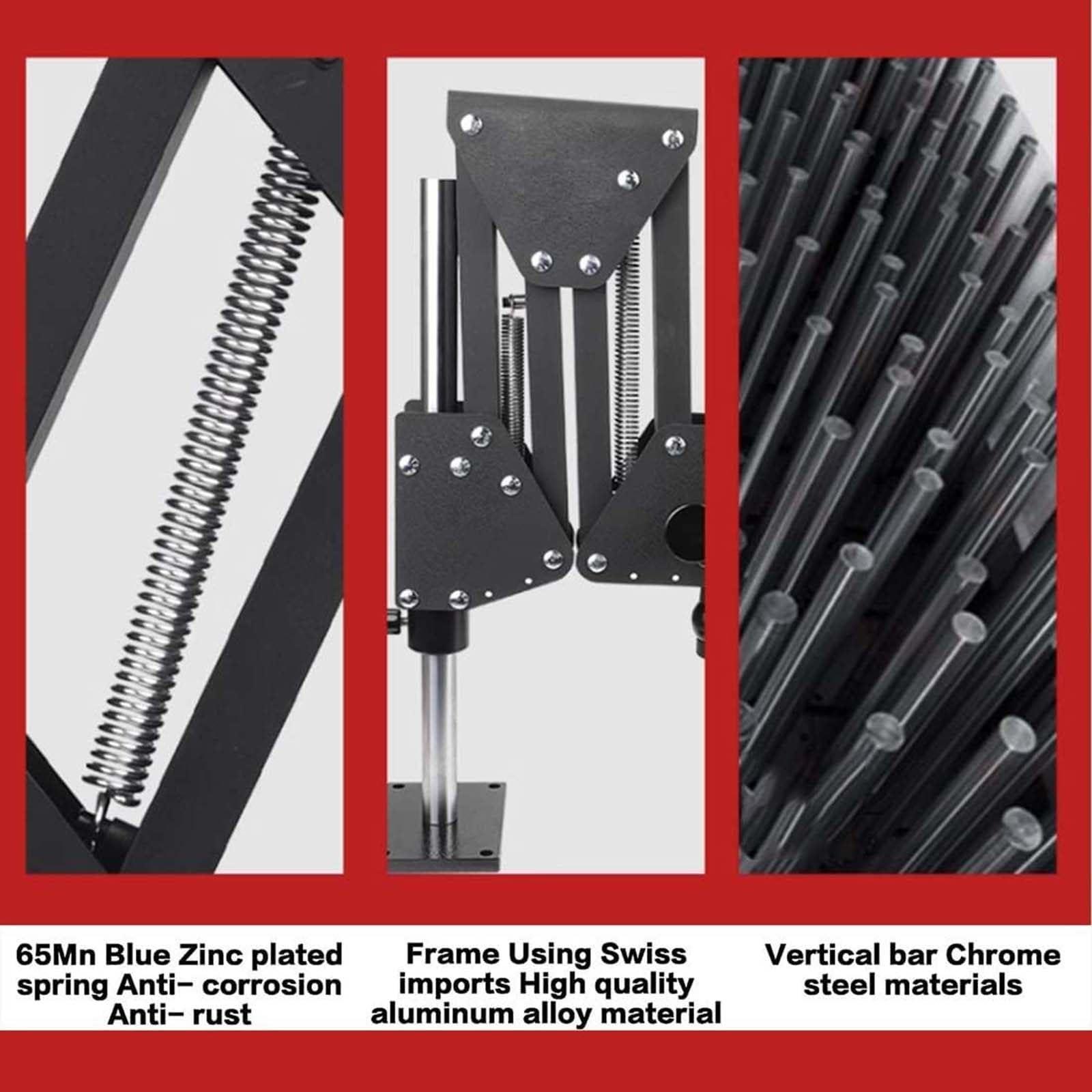

spring bracket
Vertical rod: H500*28mm
Extended length: medium 900mm
Floor size: 150X100mm
Base plate thickness: 12mm
Parameters of 85mm
Optical system: oblique optical path zoom system, stereo viewing angle 13, 45 oblique observation
Total magnification: 7X~45X
Eyepiece: WF10X
Objective lens: 0.5X
Working distance: 170mm
Field of view: 5.1mm~33mm
Binocular interpupillary distance: 55mm~75mm
Lens ring size: 85mm
Package weight: 8.5kg
Packing size: 505*505*235mm
Parameters of 75mm
Optical system: oblique optical path zoom system, stereo viewing angle 13, 45 oblique observation
Total magnification: 7X~45X
Eyepiece: WF10X/20
Objective lens: 0.5X
Working distance: 165mm
Field of view: 5.1mm~33mm
Binocular interpupillary distance: 55mm~75mm
Lens ring size: 75mm
Package weight: 9kg
Packing size: 505*505*235mm
