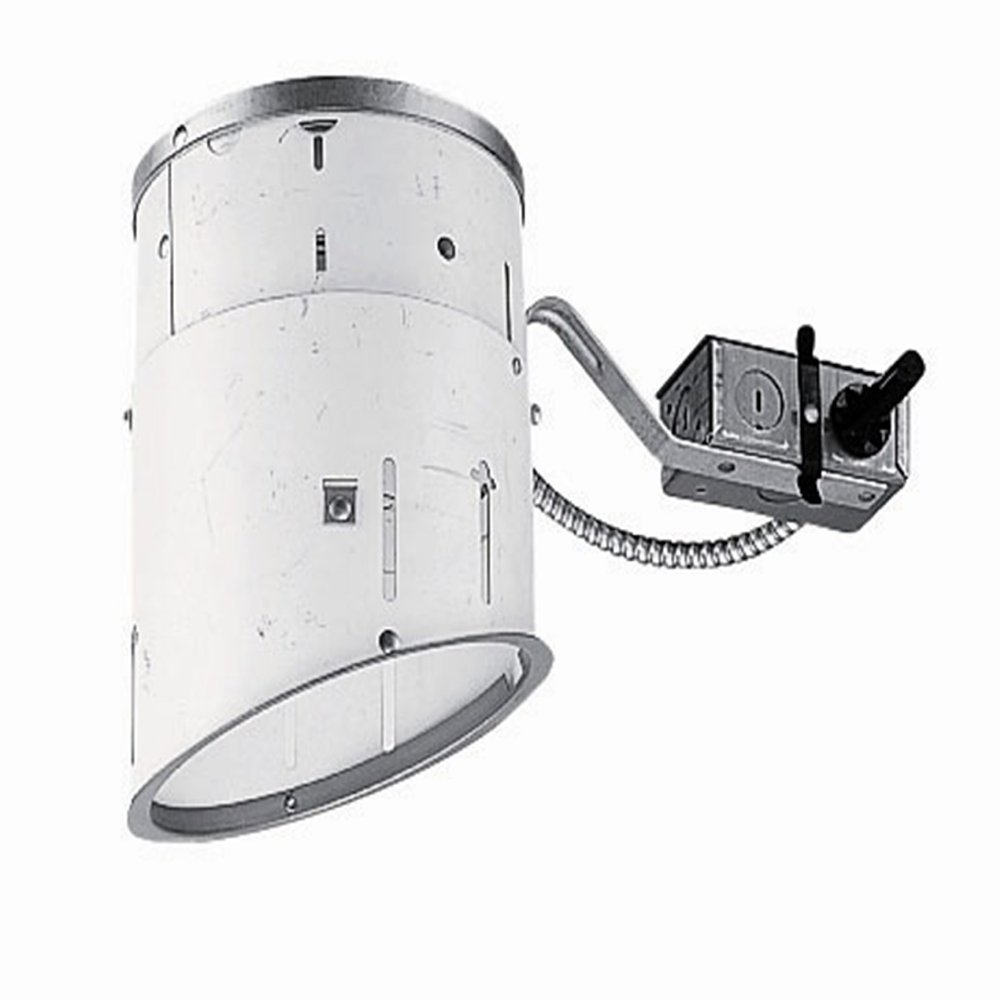

Juno Lighting Group TC926R Housing, Aluminum

Description

• Designed to be installed in non-insulated areas or where insulation is spaced at least 3-Inch from housing
• Housing is vertically adjustable to accommodate up to a 1-Inch ceiling thickness and is thermally protected against the improper use of bulbs
• For applications where the back side of the ceiling is not accessible
• Shadow-free, knife-edge trim design blends smoothly in to the ceiling and allows architectural continuity with a wide variety of trims
• UL Listed, C-UL/CSA certified for damp and wet locations

Product Description

Standard Slope Remodel Can Remodel housing for standard sloped ceilings. Requires 3-inch spacing from insulation around all sides. Fits 2x8 or 2x10 construction. Ceiling opening is 6-1/2-inches by 6-7/8-inches oval. Vertically adjusts to accommodate up to a 1-inch ceiling thickness. Height of housing adjustable from 7-3/4-inches to 9-inches.A thermal protector ensures automatic shutdown if improper bulb wattage is used. Meets Washington State IECC and MEC codes and conforms with City of Chicago IP requirements. UL listed. 7.5 in x 7.75 in x 13.75 in. Juno Lighting Group Standard Slope Remodel Can - Steel Ceiling Light Fixture - 7.5 in X 7.75 in X 13.75 In.

From the Manufacturer

The TC926R 6-Inch Standard Slope Incandescent Remodel Housing is a Non-IC rated housing for use in 2/12 to 6/12 pitch slopes (9-degrees to 27-degrees). Juno's patented Slope Ceiling Down-Lites direct light straight down, providing proper lighting from a sloped surface. The housing is secured in place with factory supplied remodel clips and holds a medium base porcelain socket with nickel-plated copper screw shell that accepts an incandescent light bulb. The adjustable socket plate permits the bulb to remain perpendicular to the floor through entire pitch range. Bulb wattage ratings and apertures are based on trim selection. Installation is made easy with the Real Nail 3 telescoping system featuring bugle-headed nails for easy repositioning of housing in joist construction and integral T-bar clip to secure housing in suspended ceiling grid. Patented breakaway bars for tight joist spacing and curved foot facilitates alignment with joist bottom. Quick-Loc slot and oversized set screw lock fixture in position. Bar hangers may be re-positioned 90 degrees. Telescoping height for use in 2x8 or 2x10 construction. The TC926R includes a pre-wired junction box with (4) 1/2-Inch with pryout slots, (4) non-metallic sheathed cable connectors, and ground wire. Oblique angle housing design holds trim flush with the ceiling while angle-cut baffles ensure grooves remain parallel to the floor to provide proper optics. UL Listed, C-UL/CSA certified for through-branch wiring, with a maximum of (4) 12-AWG branch circuit conductors. Wet location listed when using a 610 trim. All trims are sold separately and come in a wide variety of styles and finishes to customize to your needs, including the 612, 614, 616, 617 and 619 trims. Conforms to City of Chicago IP requirements. Juno Lighting Group's warranty period for general lighting products is one year from date of purchase.
