Description
- Size: 10"
- Impedance: 2 Ohms DVC
- Power Watts: 800W Peak / 400W RMS
- Sensitivity: 84.6 dB
- Mounting Depth: 5-1/4"

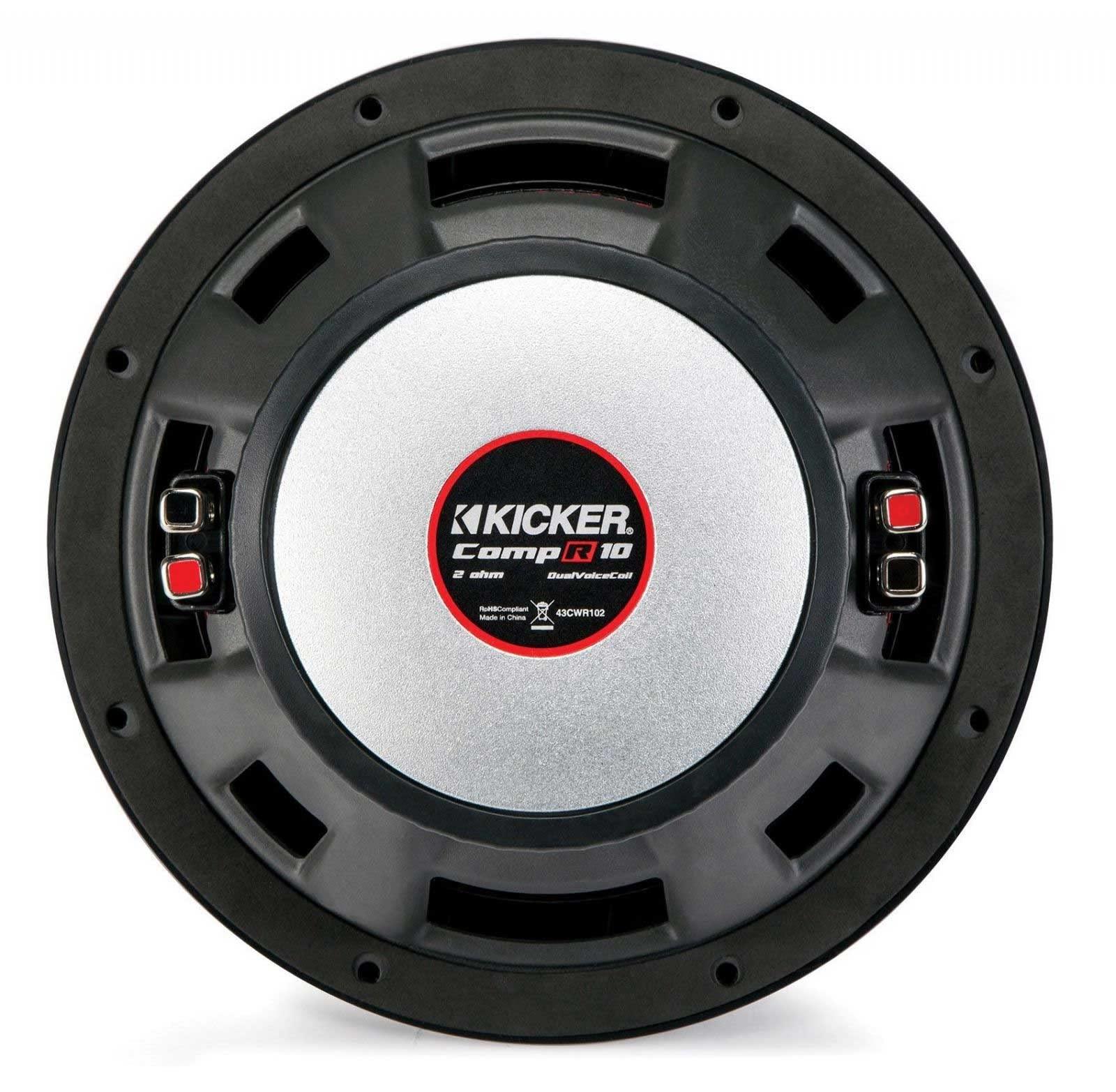

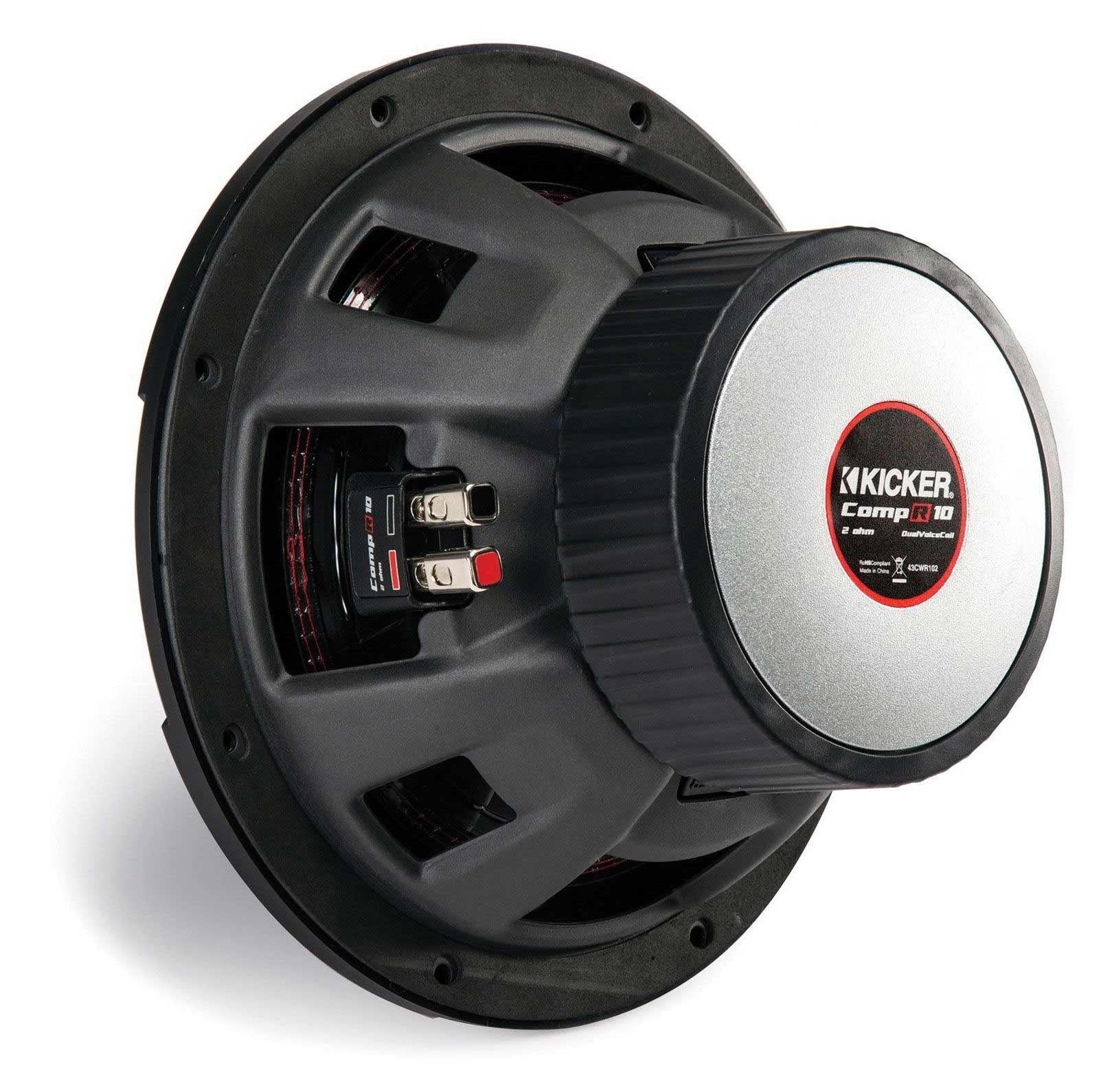

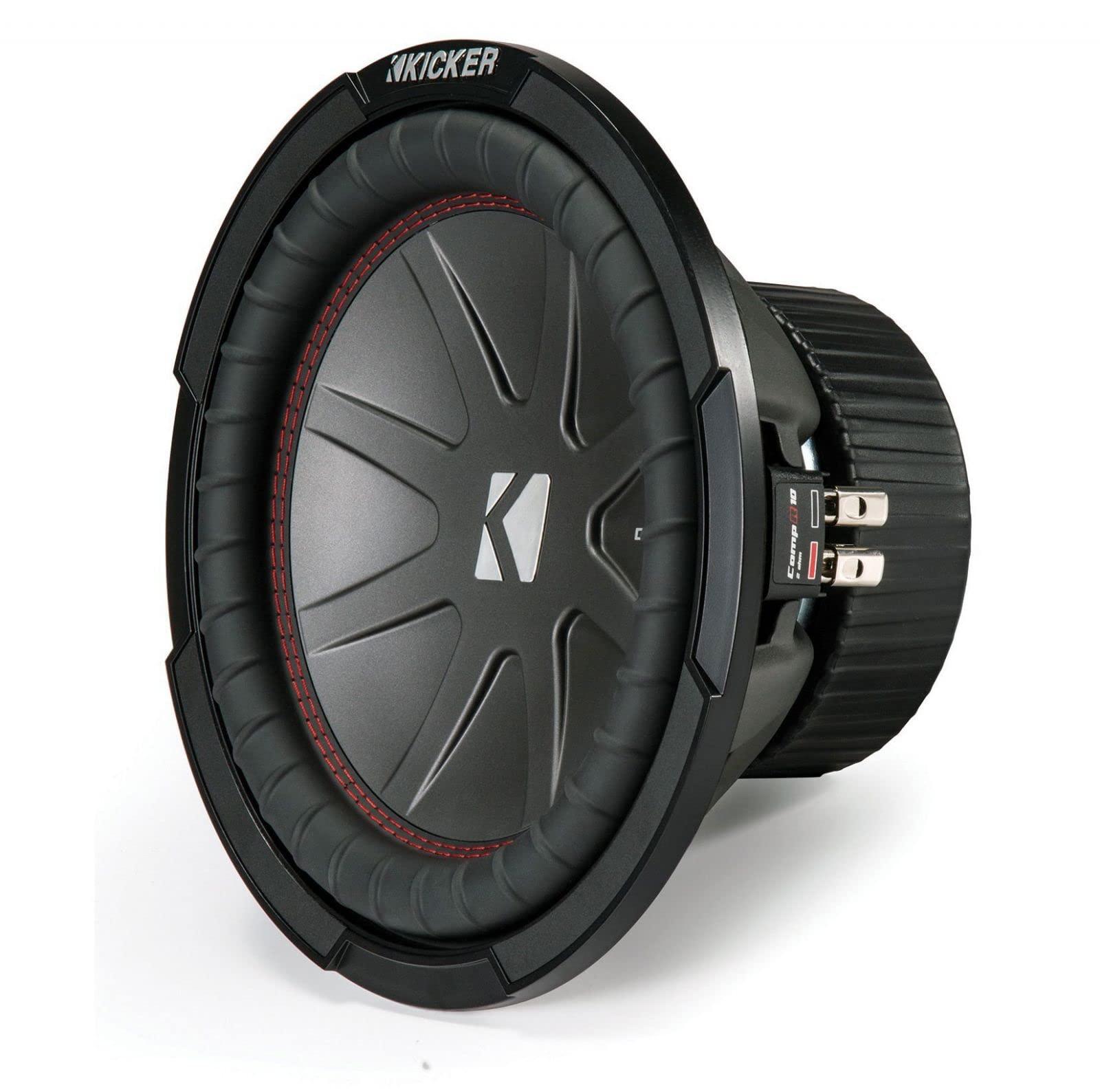

10" CompR 2 Ohm
The CompR 10-Inch Subwoofer has a pair of 2 voice coils for flexible wiring options.
Bigger magnets, a thicker cone and an improved suspension system help make the CompR a powerful, reliable bass machine.
The CompR 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
Specifications
SIZE [in, cm]: 10, 25
IMPEDANCE [Ohms]: 2 DVC
POWER WATTS [peak/RMS]: 800/400
SENSITIVITY [dB 1w/1m]: 84.6
MOUNTING DEPTH [in, cm]: 5-1/4, 13.3
MOUNTING DIAMETER [in, cm]: 9-1/8, 23.1
MIN SEALED BOX VOL [cu. ft, L]: 0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]: 1.25, 35.4
MIN VENTED BOX VOL [cu. ft, L]: 1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
