Description

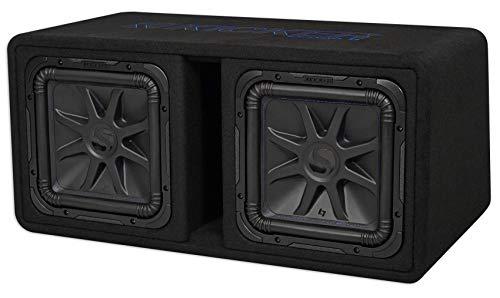

- Package Includes: (1) Kicker 44DL7S122 Dual 12" 3000w L7 Solo-Baric L7S Loaded Sub Enclosure. (1) RockvilIe dB15 6000 Watt/3000w RMS Mono Class D 2 Ohm Amplifier Car Audio Amp. (1)Engauge by Memphis KIT0 0 Gauge Amplifier Amp Installation Wire Kit 17 ft. RCAs. Features: Kicker 44DL7S122 Dual 12" 3000w L7 Solo-Baric L7S Loaded Sub Enclosure 44L7S122. Genuine Solo-Baric L7S Subwoofer Included. Custom Engineered Port Design. Heavy Internal Bracing. Single 2-Ohm Terminal. Easy To Install And Wire
- Thick Black Carpeting. Rounded Corners. Embroidered KICKER Logo. Thick MDF Construction. The Dual Solo-Baric L7S 12-Inch Subwoofer Enclosure works best with 1500 watts of recommended power. Specifications: Type: Dual. Woofer: Solo-Baric L7 12". Impedance: 2 Ohms. Power Watts: 3000 Peak / 1500 RMS. Frequency Response: 20-500 Hz. Sensitivity: 89.9 dB 1w/1m. Box Top Depth: 16-1/4" (41.3 cm). Box Bottom Depth: 19-1/2" (19.4 cm). Box Height: 16" (40.6 cm). Box Width: 33-3/4" (85.7)
- Includes one loaded enclosure with two 12-inch subwoofers; mounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long); one owner's manual; two stickers. Includes: Amplifier. Bass Remote. Birth sheet with tested power. Owners manual. Mounting Screws. Warranty. RockvilIe dB156000 Watt/3000 Watt RMS Mono Class D 2 Ohm Car Stereo Amplifier With Optical Coupler Technology
- CEA Compliant Power Ratings (Rated at less than 1 % distortion) (Use these CEA ratings when matching and comparing with other CEA compliant brands such as Kicker, Rockford Fosgate, etc.) - 2 Ohm: 1500 Watts x 1 Channel <1% THD+N - 4 Ohm: 900 Watts x 1 Channel <1% THD+N. RMS Power Ratings: (Use these RMS ratings when comparing with great brands such as Hifonics, Earthquake, Soundstream, etc.) - 2 Ohm: 3000 Watts x 1 Channel -4 Ohm: 1800 Watts x 1 Channel
- Peak: (The amount of power the amplifier can produce for a split second at the loudest part of a song -2 Ohm: 6000 Watts x 1 Channel -4 Ohm: 3600 Watts x 1 Channel. High-Speed MOSFET Power Supply. Optical Coupler Class D Technology. Fully Adjustable 12dB / Octave Crossover with Differential Circuitry. Low Pass Filter: 50Hz - 250Hz. Subsonic Filter: 15Hz - 55Hz. Phase Control Switch. Full IC-Controlled Protection Circuitry. Remote Dashboard Subwoofer Control
Fully Adjustable 12dB Bass Equalizer. Mute and Delay Soft Start System. RCA Preamp Line Output. 8 Volt Preamp Circuitry. Status Mode LED Indicator. Minimum THD at Rated Power: <0.1%. S / N Ratio: >90dB. Under Voltage Protection at 10V. Over Voltage Protection at 16V. Frequency Response: 15Hz - 250Hz. Damping Factor: >150 @ 100Hz. 150 Amp Maxi Fuse. Dimensions: (W x H x L)9" x 2.4" x 17.8". Engauge by Memphis KIT0 0 Gauge Amplifier Amp Installation Wire Kit 17 ft. RCAs. (1) 17ft 1/0GA blue power wire, 7745/0.15mm, OD:15mm, CCA. (1) 3ft 1/0GA black ground wire, 7745/0.15mm, OD:15mm, CCA. (1) 17ft 2ch side by side interconnect. (1) 17ft blue remote turn on wire, 32/0.15mm, OD:2.1mm. (1) ANL fuse holder, Zinc. (1) ANL fuse, 100A, nickel. (2) 1/0GA 5/16" nickel ring terminal. (1) Blue boots. (1) Black boot. (6) Self-tapping screws. (1) 1/0GA snap bushing grommets. (10) 4" black wire ties. (1) Poly bag for accessories. (1) Poly bag with header card The dB15 is a mono amplifier with 6,000 watts peak output and 1500 watts CEA-2006 rated power. Here at RockvilIe we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the CEA rated RMS rating can be used to compare with brands who rate their items using the CEA standard such as Kicker, Rockford, Alpine, etc. One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20 %. The dB15 features a Maxi fuse with a rating of 150 Amps. Although we rate these conservatively at 1500 watts CEA @ 2 ohms, this amplifier puts out more power than this! This amp has a fully adjustable 12dB/Octave crossover with differential circuitry. Other features include a subsonic filter, a fully adjustable bass equalizer, mute and delay soft start tech
