Description
- Size: 12"
- Impedance: 4 Ohms DVC
- Power Watts: 1000W Peak / 500W RMS
- Sensitivity: 86.9 dB
- Mounting Depth: 5-3/4"

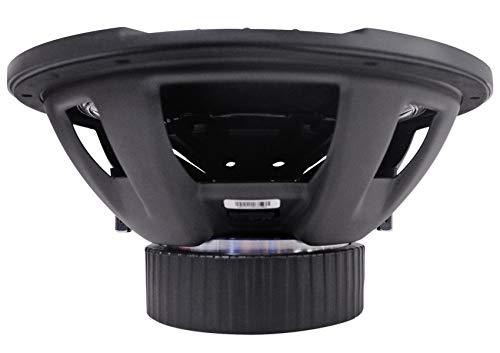

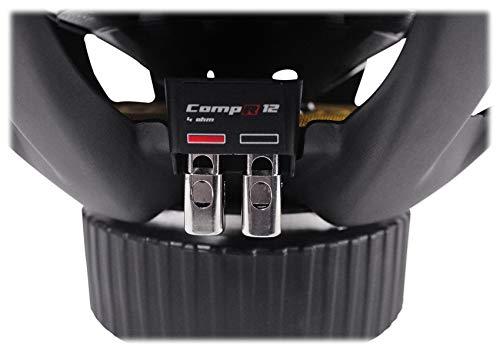

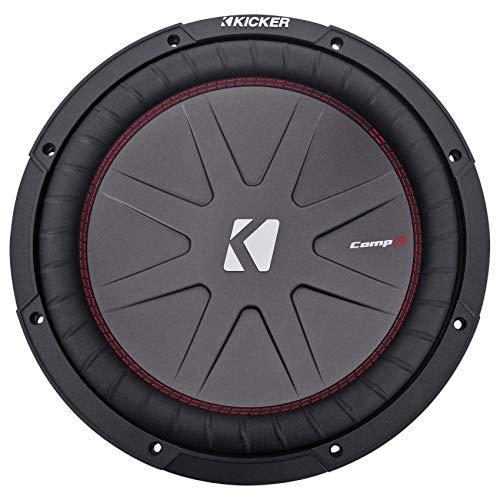

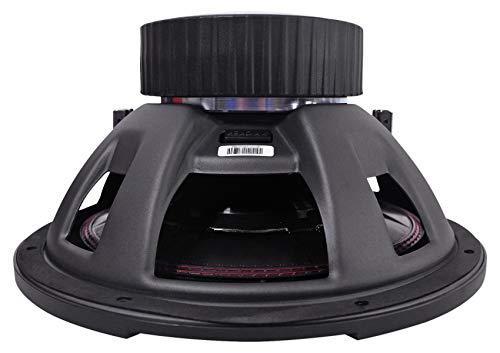

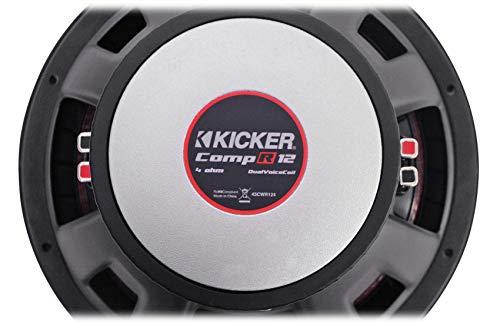

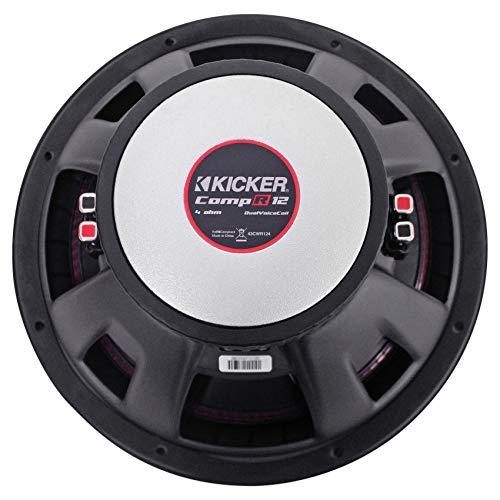

12" CompR 4 Ohm
The CompR 12-Inch Subwoofer is a dual 4 voice coil design, making it easy to get the most out of your amp.

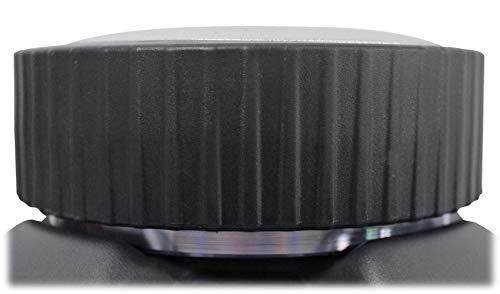

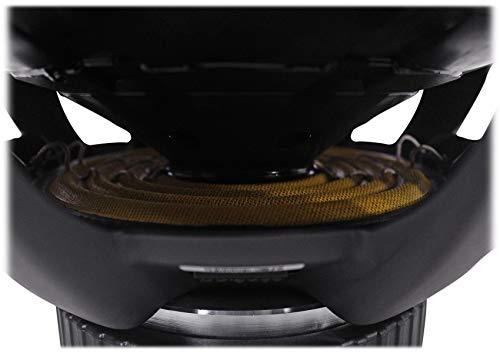

Revolutionary SoloKon technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
The CompR 12-Inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
Specifications
SIZE [in, cm]: 12, 30
IMPEDANCE [Ohms]: 4 DVC
POWER WATTS [peak/RMS]: 1000/500
SENSITIVITY [dB 1w/1m]: 86.9
MOUNTING DEPTH [in, cm]: 5-3/4, 14.6
MOUNTING DIAMETER [in, cm]: 11, 27.9
MIN SEALED BOX VOL [cu. ft, L]: 1.0, 28.3
MAX SEALED BOX VOL [cu. ft, L]: 2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]: 2.25, 63.7
