Description
- Magnification: 100X
- Visual field: 2.4mm-32mm
- Working distance: 50mm-200mm
- Lens diameter: 39mm
- Sensor: 21 MegaPixel CMOS Sensor

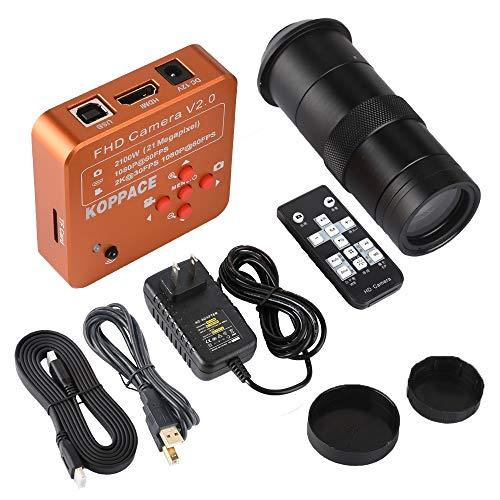

KP-2110-100X Magnification: 100X Visual field: 2.4mm-32mm Working distance: 50mm-200mm Lens diameter: 39mm Sensor: 21 million pixels CMOS Sensor Optical format: 1/2.3 inch Pixel size: 1.335m1.335m Interface: HDMI(Type A)USB(Type B)TF Card Image resolution: 5488*4112 (for TF Card),1920*1080(for TF Card) Video record resolution: 2K@30FPS,1080p@60FPS HDMI Resoltion: 1920*1080p 60FPS HDMI proportion: Support 4:3,16:9,16:10 screen USB2.0(Drive free): 1920*1080@30 1280*720@30 640*480@30 TF card: MAX 64GB White balance: WB color correction/Auto/Manual R/G/B value setting independent Exposure: Auto/Manual.AE value can set Cross lines: 8 lines.Can set color& width& position Scale mark lines: 2 lines Sharpness Contrast Color gain: Support Mono Negative: Support Mirror: Horizontal vertical mirror Digital Zoom: Support IR remoter: Support Voltage in: DC 12V (5-19V),55-21mm size Power consumption: MAX 0.15W (12V,0.12A) Lens interface: C/CS Packing List : 121 million pixels microscope camera *1 2HDMI high definition line *1 3USB data line *1 4The camera power adapter *1 5CD drive *1 6Remote control *1 7100X lens *1Questions & Solutions LCD no video or flicker: 1Check power supply. Check green LED be onlight. Press PowerKey to Up it. 2Check lens cover. Increase the lighting. LCD have black bar Image warp: 1Change resolution of LCD 2Change resolution of camera Note: 1Prices quoted on all our products do not include customs duties. 2This product is mainly HDMI output, USB connected computer can only display images, can not adjust parameters; remote control can not be used when connecting computer; using remote control to adjust parameters needs to be in HDMI connected monitor state.
