Description
- Touchable LCD screen:The default interface for touchable LCD to connect with BMS is UART.But it also can support RS485 communication(OEM). Pls pay attention when BMS is using LCD's UART communication, CAN NOT connect GPS or BT at the same time. Pls DO NOT insert the wrong interface to avoide damaged BMS
- Bluetooth module:Check batteries' information through connecting bluetoothwith cell phone,is convenient for customers to manage the batteries and provide intelliant, efficient , fast and safe using ambient
- CANBUS module:The data transmission tool between the PC and the BMS mustensure that the drive is installed normally and the line sequence correct in order to communicate normally Transmission distance long 250kbs,transmission speed fast,anti-interference strong 500kbs

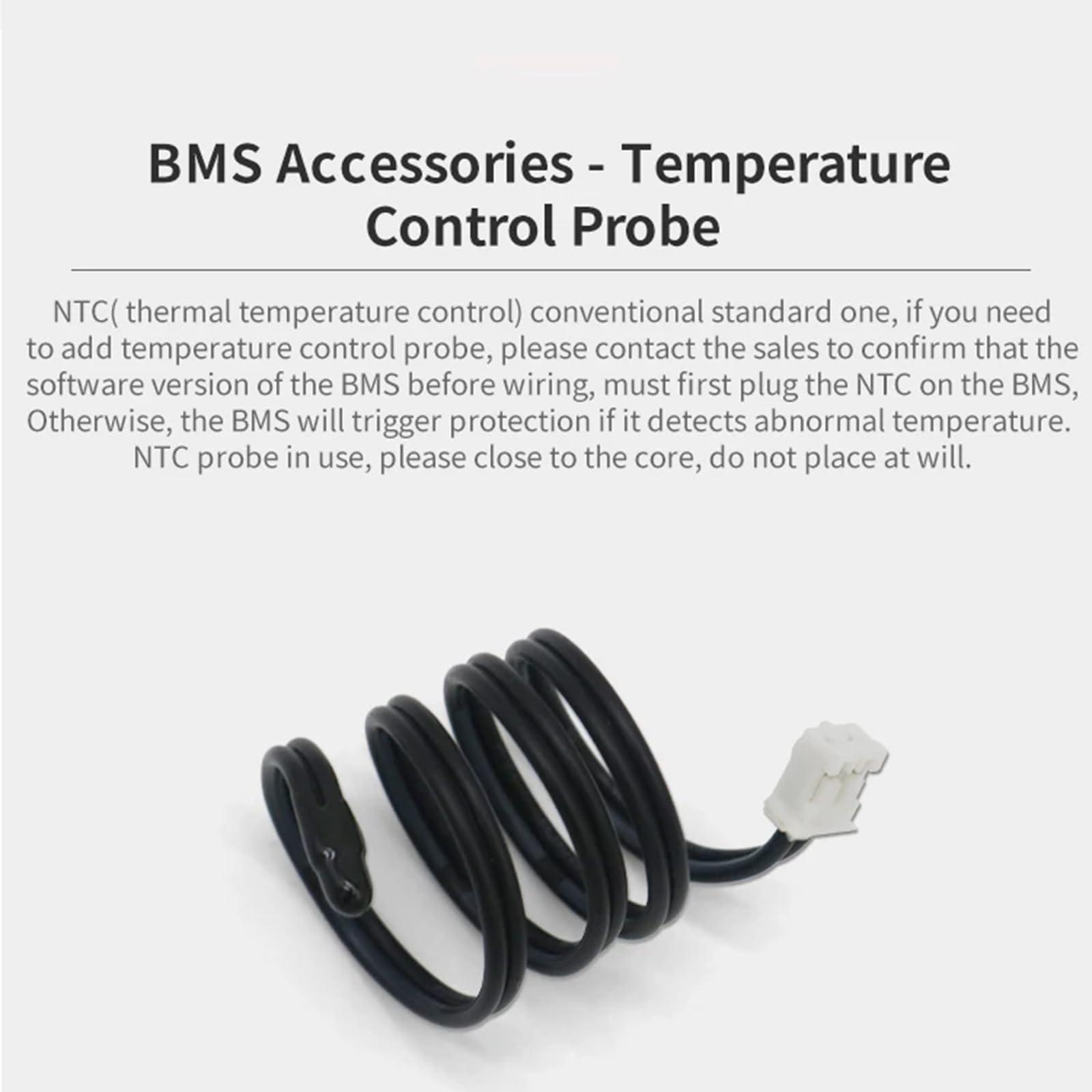

- NTC(thermal temperature control): please confirm that thesoftware version of the BMS before wiring, must first plug the NTC on the BMS, Otherwise, the BMS will trigger protection if it detects abnormal temperature.NTC probe in use, please close to the core, do not place at will.
- 3in Screen RS485port:Plug-in connector, no soldering required. Wiring with pop-up clips, easy to install. Enclosed insulation shell, multiple protection, dustproof, anti-static, anti-squeeze. Wide temperature range from -20 to 70, power consumption of less than 20mA, sleep power consumption as low as 0.1W. Accurate display of
Pls refer to following link to understand how to use the touchable LCD
s://.dalyelec.cn/newsshow.php?cid=24&id=76&lang=1
Pls refer to following link to understand how to use bluetooth function
s://.dalyelec.cn/newsshow.php?cid=24&id=74&lang=1
Pls refer to following link to understand how to use PC function(UART/RS485/CAN communication)
s://.dalyelec.cn/newsshow.php?cid=24&id=65&lang=1
You can use the light board(battery capacity)to activate the bms,wake up the bms and show battery capacity.
