Description
- The measurement error affects the thermocouple temperature line in the test temperature of only two points: the combination of line material and solder ball.
- When determining the thermocouple wire two thermocouple wire material composition, the size of the thermopower only with thermocouple ball point temperature difference, has nothing to do with the length and diameter of the thermocouple, so treatment of solder ball is often key measurement accuracy.

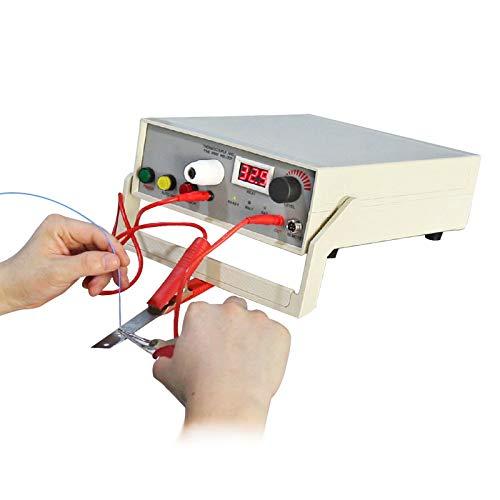

- Thermocouple spot welding TL-WELD thermocouple spot welding according to the required and professional production, with high quality welding performance and convenience, but also has a high price.
- Standard fittings: 1, electrode holder 1 2, protect the 1 glasses 3, power line 1 4, 1 spare carbon 5, the insurance tube

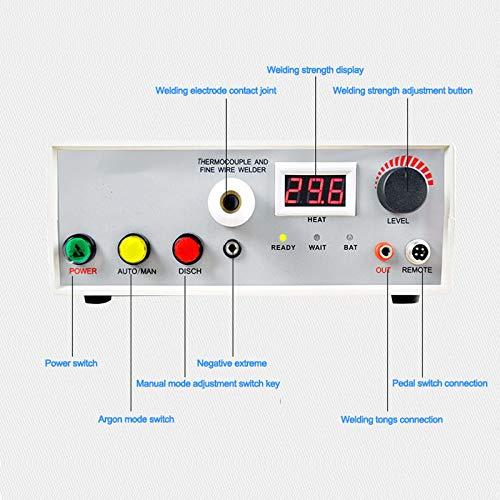

Product image, functional description and specifications
1, POWER key: power start switch. When the switch is switched on when the POWER key has a light and light is not bright two kinds of circumstances, the lamp is lit to connect the external power supply () power use, the lamp does not light on the internal rechargeable battery.

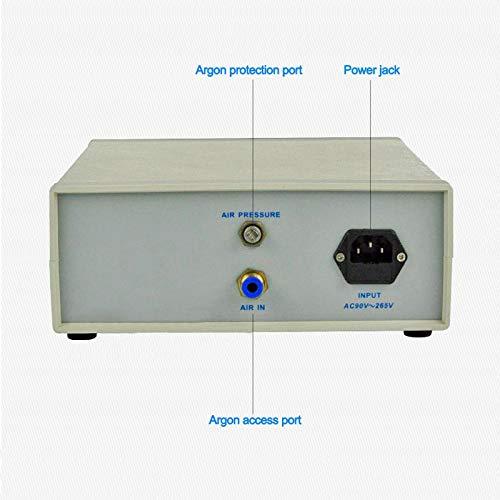

2, AUTO/MAN key: argon control mode switch. AUTO is automatically sent to argon mode; MAN is used to control the operation mode of MAN in MAN mode, which can achieve the purpose of saving resources by using REMOTE key remote control operation to control the argon.
3, DISCH key: manual adjustment of the welding heat button, when the heat from the high point to the low point of conversion adjustment should be the key to release excess heat until the WAIT lights up (HEAT screen value will be real-time changes), please use the key /WAIT lights to press DISCH key, long press can lead to internal device or power damage
4, welding electrode: the electrode and argon shielding cover is the company according to the welding of high quality thermocouple when the argon protection device and the operation convenience of the custom, in convenient use more convenient for the replacement of spare parts. When the ready light, out key connection welding clamp stay welding thermocouple wires to the electrode contact welding, welding to prevent damage eyes, please wear protective glasses.
5, HEAT screen: real time thermal numerical display, by watching the screen value more accurate positioning of different size of the welding line Thermocouple heat, to avoid the inconvenience of traditional operation; at the same time in adjusting the level knob more clear and intuitive that heat can reach the actual extent of, to avoid the traditional machine due to the inconvenience brought on by level knob quality problems.
6, READY indicator: the indicator light when, said to enter the welding state, welding operation is effective.
