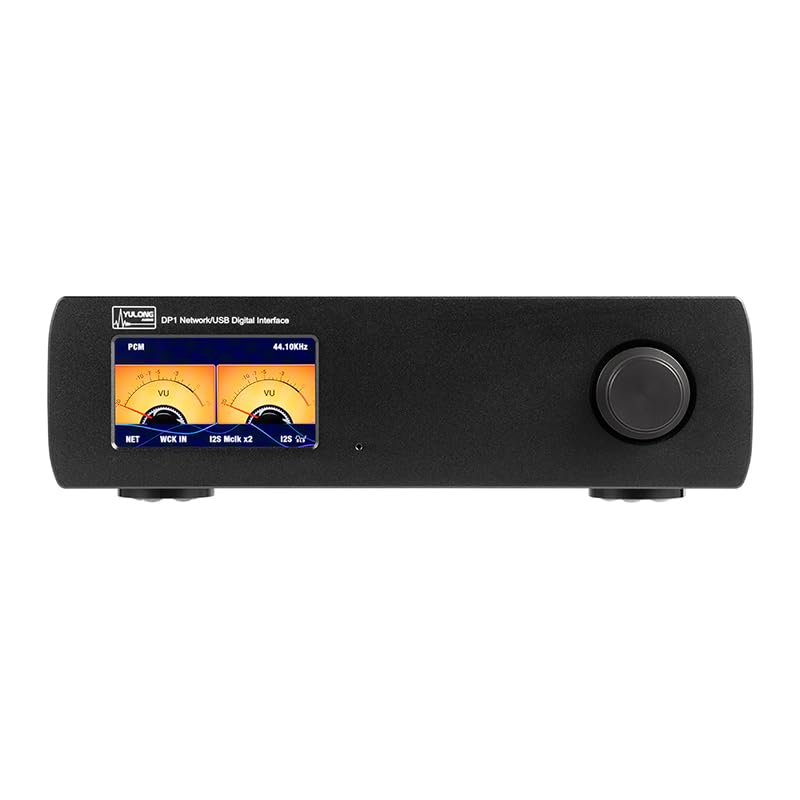

LEAUDIO YULONG DP1 Network streaming machine USB digital interface HD music DSD1024 digital signal processing (Black)

Description

• Input & Output: Dual Accusilicon AS338 low-noise audio synchronization oscillators, supports net, usb, word clock input/output. optical, coaxial, AES outputs support PCM1536, DSD1024 format
• Streaming Protocol Support: DP1 supports Airplay2DLNASqueezeliteRoon BridgeHQNaaDaphileLMSSpotify
• Voltage Regulation: The DP1 features a built-in 25W linear power supply with an LT1764 as the main regulator. The network/USB port, clock, PLL, audio driver 10, and audio output drivers all use independent secondary precision low-noise linear voltage regulators for power supply
• Dual Core: DP1 uses a dual core CPU with optimized power and memory layout for sound quality, streamlining Linux as the internal processor Nuclear
• FPGA Power Design: Directly communicate with FPGA to integrate all functions of network stream decoding, USB interface, SPDIF demodulation/encoding, data FIFO, clock PLL into CPU+FPGA for operation

Technical Specificaiton:

NET, USB input:
PCM: up to 32Bit/1536KHz
DSD: DoP64, DoP128, Native DSD64/128/256/512/1024

AES, Coaxial, output:
PCM: up to 32Bit/384KHz
DSD: DoP64, DoP128

Optical output:
PCM: up to 24Bit/192KHz
DSD: DoP64, DoP128, Native DSD64/128/256/512/1024

CLOCK input /output: 44.1KHz-768KHz
THD+N: 0.000008%
Dynamic Range: 140dB
Power consumption: <20W
Dimension: 248mm x 210mm x 60mm (L x D x H)
Weight: 2.5Kg
