Description
- Output Voltage: 24V
- Approx. Wattage: 240W
- Function: output adjustable via potentiometer; 3 in 1 dimming;DALI
- Warranty: 5 Years Warranty
- IP Level: IP67
Features:
Constant Voltage + Constant Current mode output

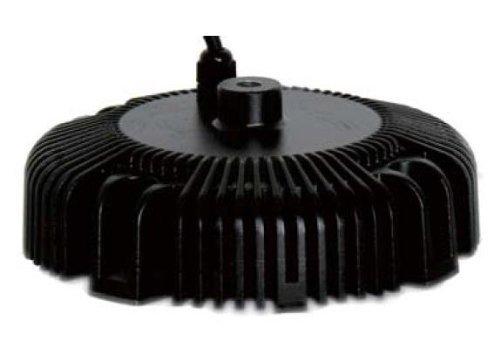

MEAN WELL patented circular metal housing with classdesign(Patent No.:CN201220314551)
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming;DALI
Typical lifetime > 50000 hours
5 years warranty
General Specification:
AC input voltage range:90~305VAC 127~431VDC(please refer to "STATIC CHARACTERISTIC" section
AC inrush current (Typ.):COLD START 75A (twidth =680s measured at 50% Ipeak) at 230VAC ;per NEMA 410
AC adjustment range:24V: 6~10A ,36V: 4~6.7A, 48V: 3~5A, 60V: 2.4~4A
Over voltage protection:24V: 27~34V ,36V: 43~52V ,48V: 52~63V, 60V: 62~85V, ,Shut down and latch off o/p voltage , re-power on to recover
Over current protection: 95~108% Constant current limiting, recovers automatically after fault condition removed
Over temperature protection: Shut down o/p voltage, recovers automatically after temperature goes down
Withstand voltage:I/P-O/P: 3.75KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVAC
Working temperature: Ta=-40 ~ +75C (please refer to "OUTPUT LOAD vs TEMPERATURE"section
Safety standards:UL8750,CSA C22.2 No.250.13-12;ENEC EN61347-1,EN61347-2-13,EN62384,GB19510.1,GB19510.14,BIS IS 15885(for 48A ,60A only), EAC TP TC 004 IP65 or IP67 approved
EMC standards: Compliance to EN55015, EN61000-3-2 Clss C (@load75%EN61000-3-3,GB17743,GB17625.1; Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity :Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020
Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25C/70% RH
Dimension (DxH) (mm):191.5x 69
