Legrand, 310332 19" Rack PDU with Integrated UPS System, 800VA - 480W, 1-Phase 230V with 8-Way Schuko Power Strip for 19-Inch Racks/Power Distribution Cabinets, Bridging Time up to Max. 15 Minutes

• KEOR PDU: With integrated UPS system for special installation in racks and 19" cabinets, requires only 2 rack height units. The PDU is compatible with a PC running LINUX or Windows (Free Software UPS Communicator), not with NAS.
• Features: 2 in 1 PDU/UPS system with a rated power of 800VA and a nominal active power of 480W with low power consumption and quiet operation.
• Use: 8 Schuko CEE7/3 output sockets for battery operation in case of mains failure. Bridging time of up to a maximum of 15 minutes.
• LED display: 3 LED indicators (green/orange/red) for monitoring the status of the UPS (uninterruptible power supply) in real time.
• Further details: USB port for monitoring, communication and control of the system on the PC possible, protection devices against overload, overvoltage, over temperature and short circuit

UPS for 19" rack cabinets with wall mount

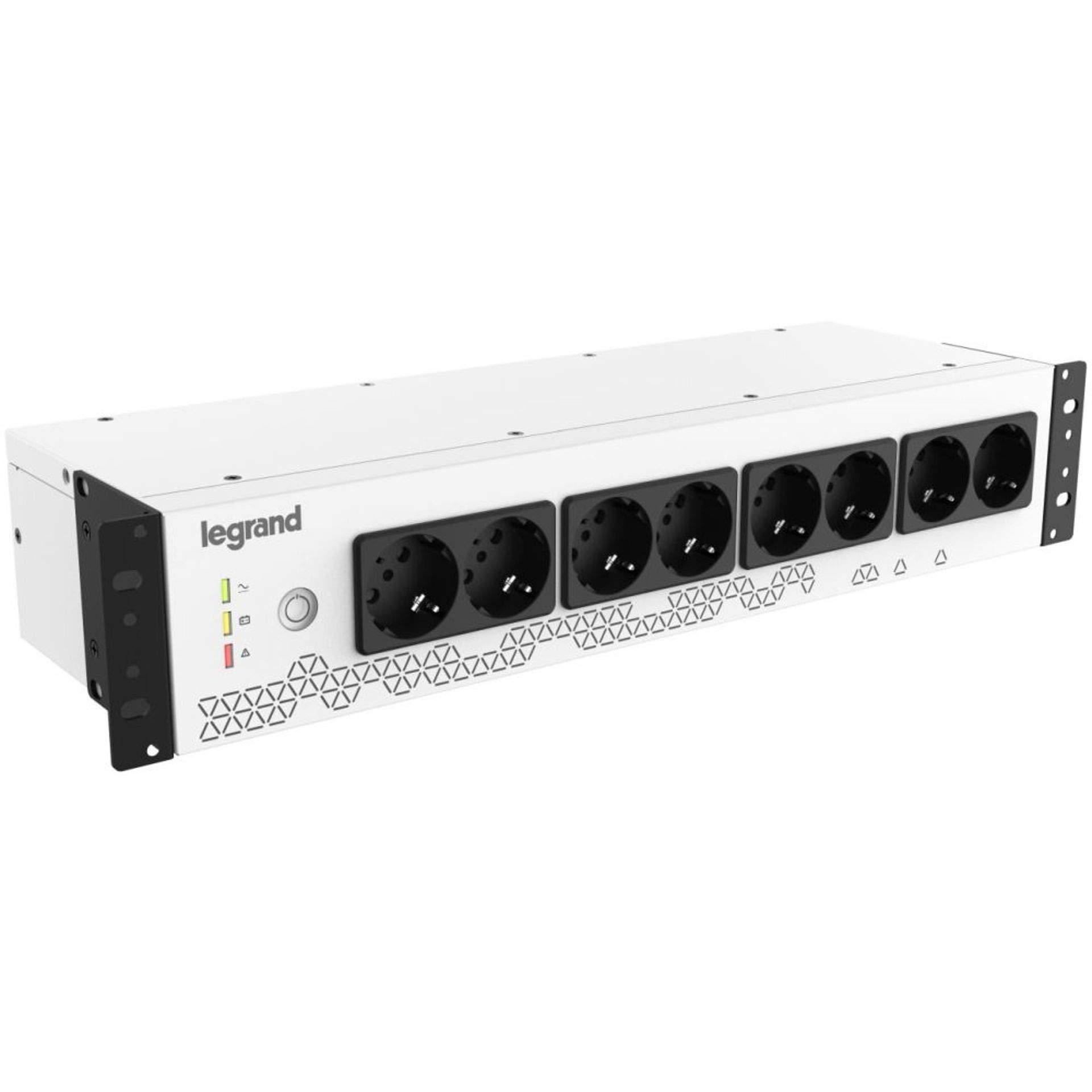

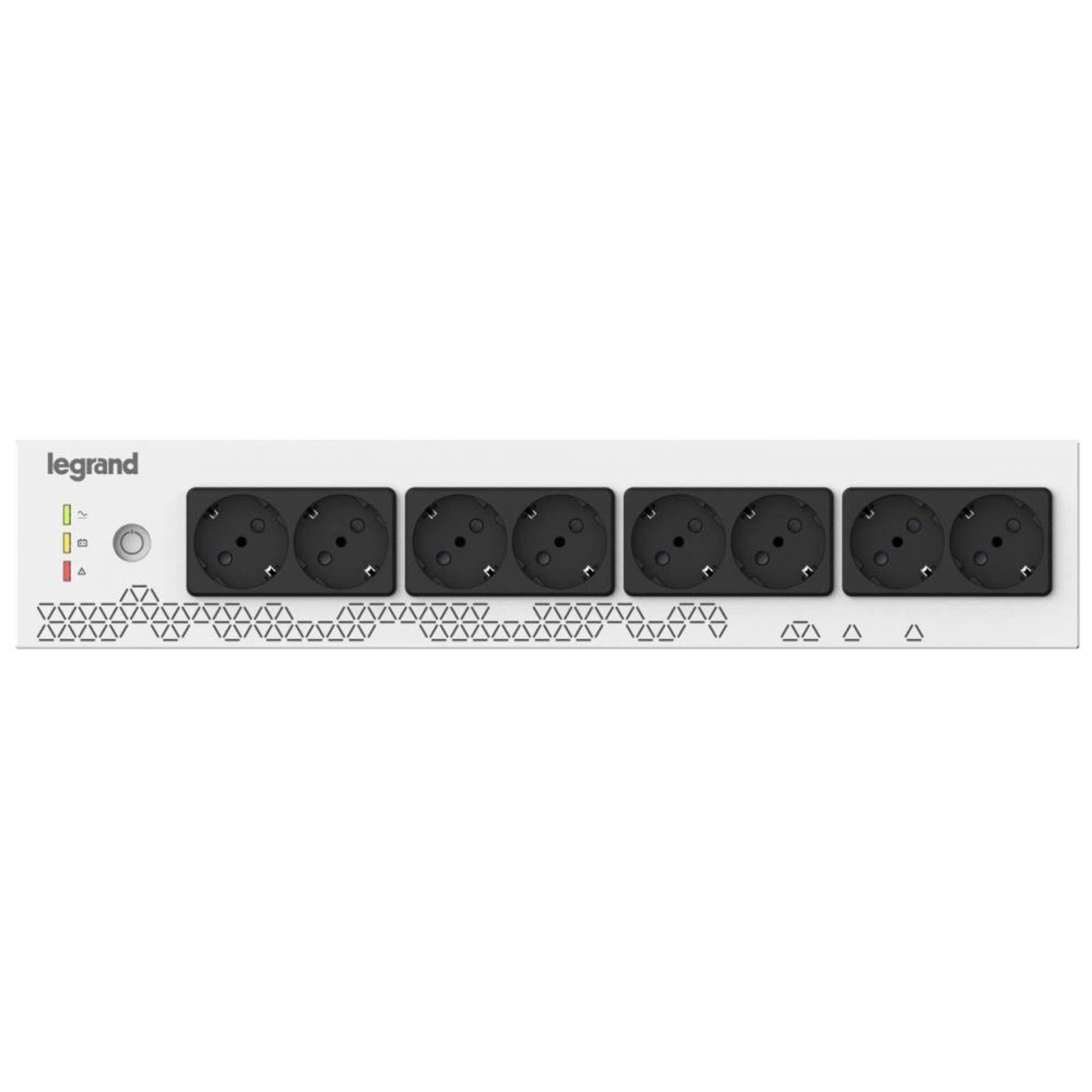

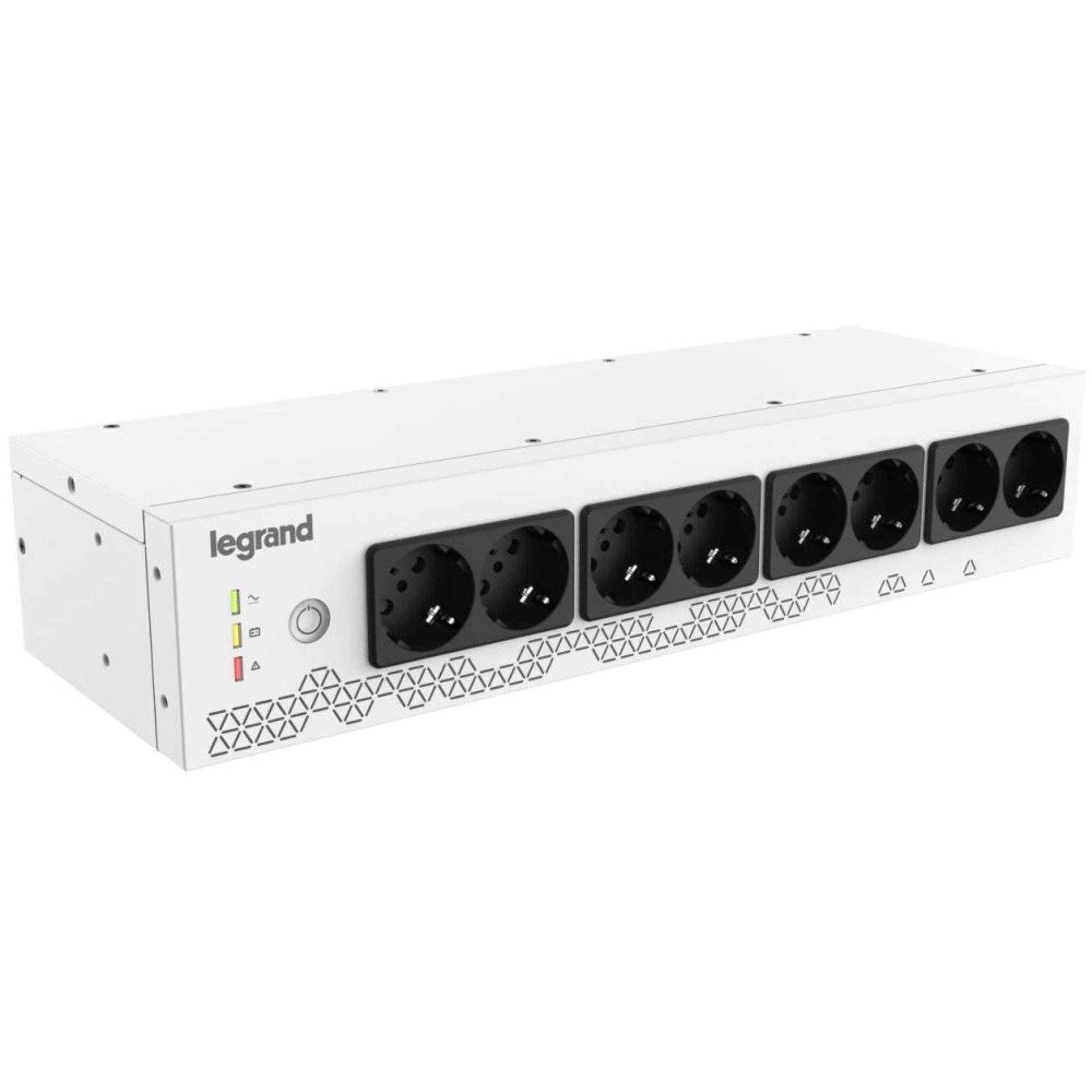

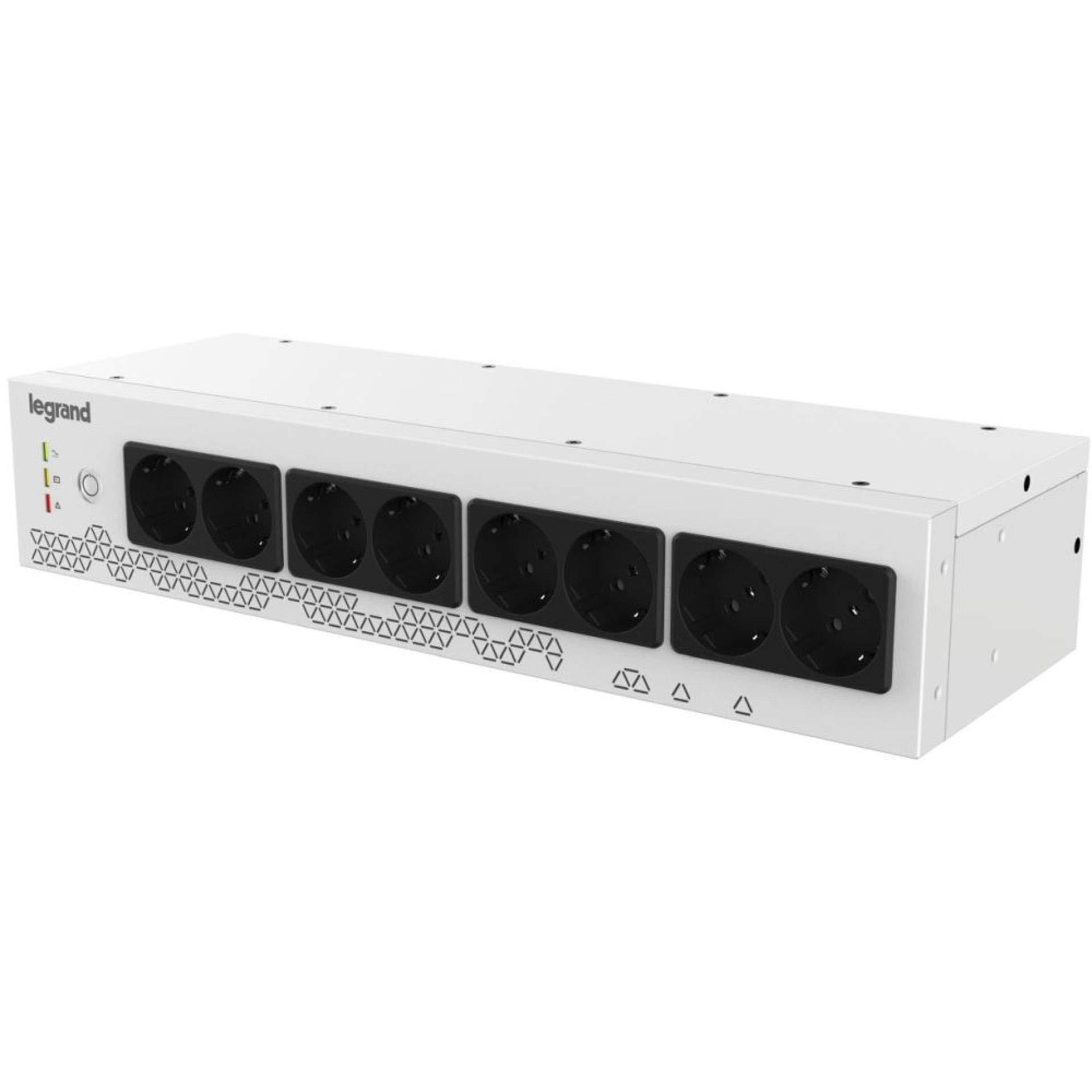

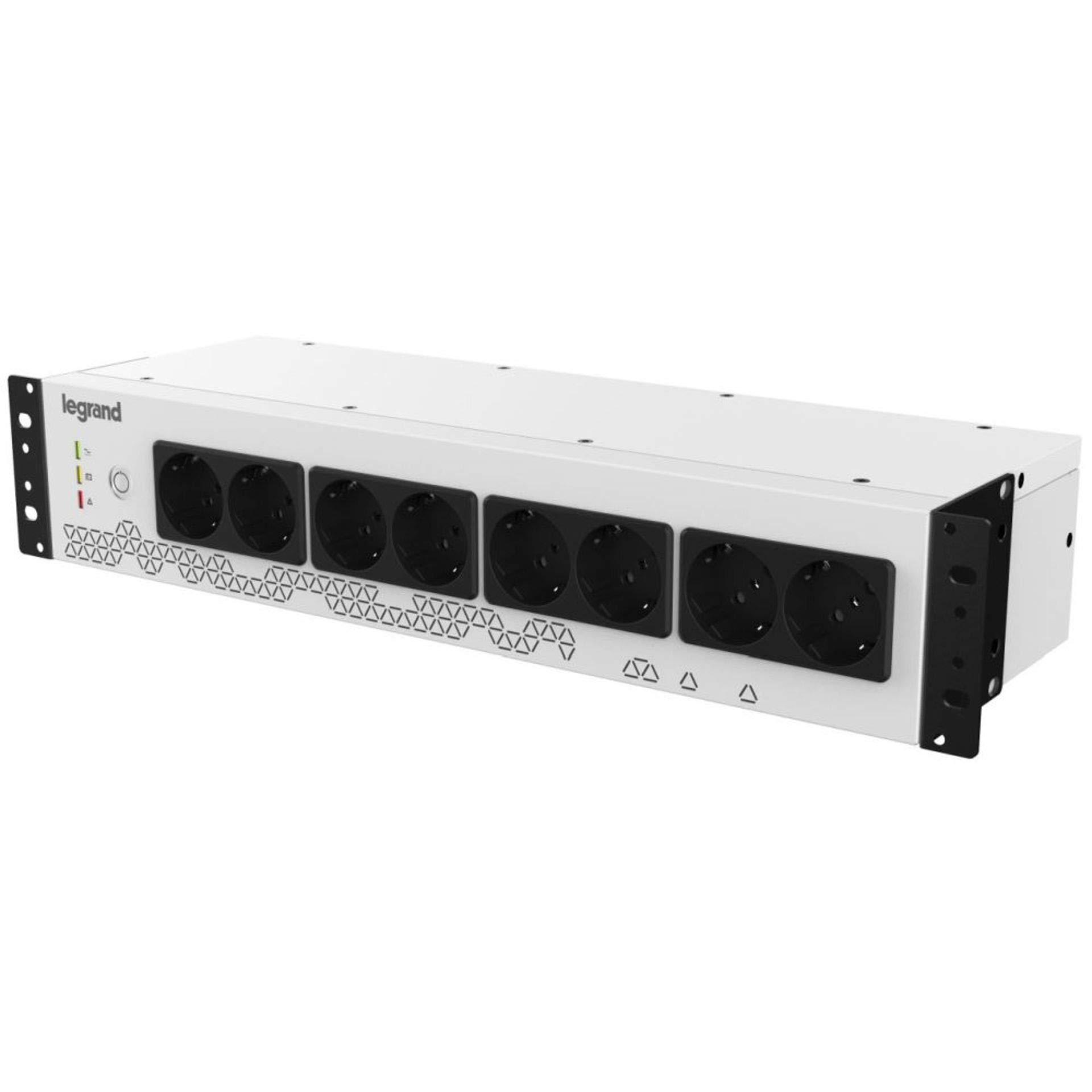

Keor PDU is the new UPS designed specifically for installation in racks and 19" cabinets. The PDU design with ultra-compact dimensions requires only 2 rack height units. Keor PDU is equipped with 8 Schuko sockets and bridges a mains failure for up to 15 minutes.

The Keor PDU 2-in-1 solution:
- Low power consumption.
- Cost-effective solution
- Multiple sockets with full protection.
- Front installation and maintenance.
- Quiet operation.
- More space inside the server cabinet.
- Lower weight of the system.
- Easy wiring and installation.

General Features
- Rated power (VA): 800.
- Active power (W): 480
Entrance
- Input voltage: 230 V.
- Input frequency: 45 - 65 Hz.
- Input voltage range: 180 - 270 V WS
Output.
- Output voltage: 220/230/240 V WS 10 %.
- Output frequency (nominal): 50/60 Hz 1%
- Power factor: 0.6
Battery.
- Type: VRLA - AGM without maintenance
- Charging time (hours ): 4-6 (90% of capacity)
Communication and Management

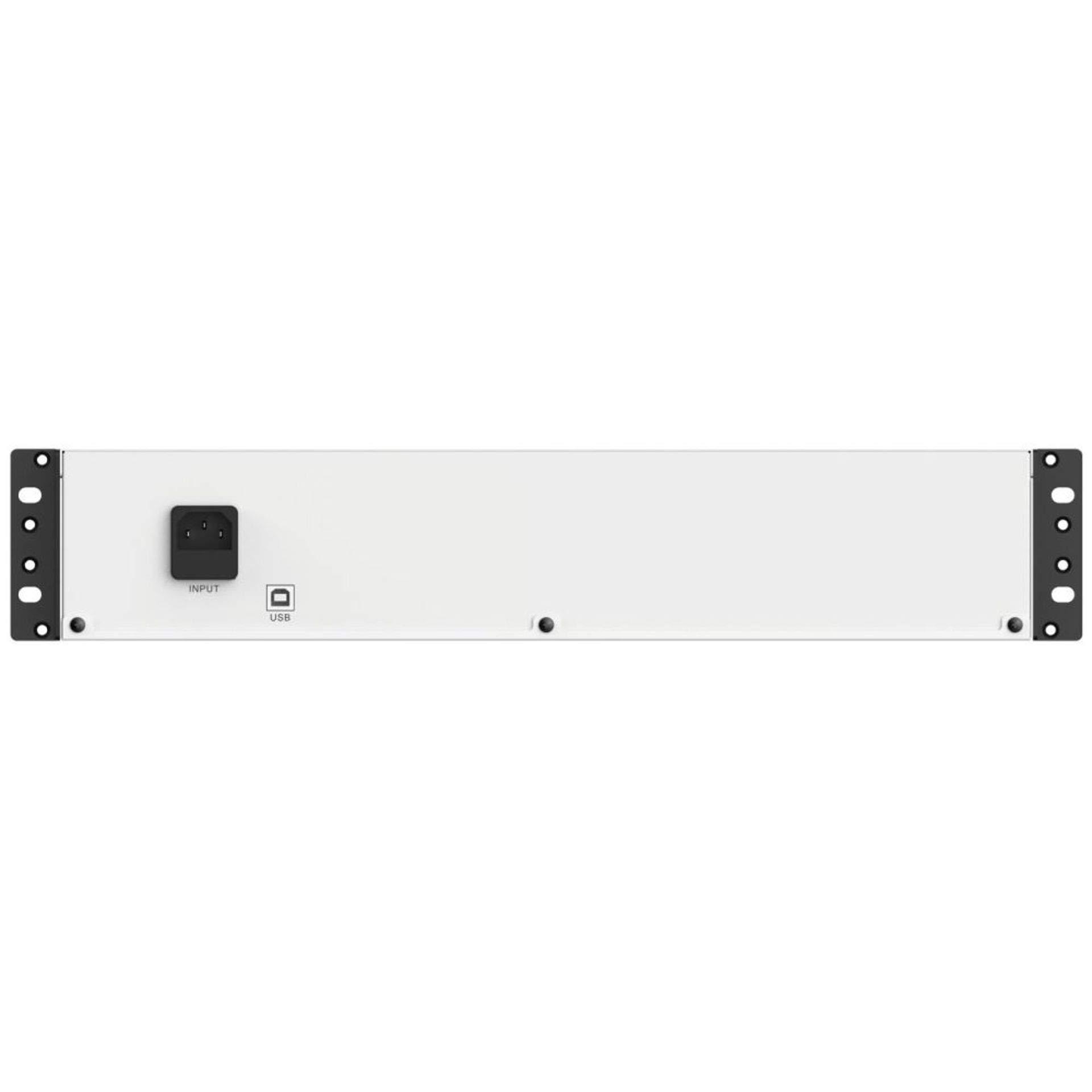

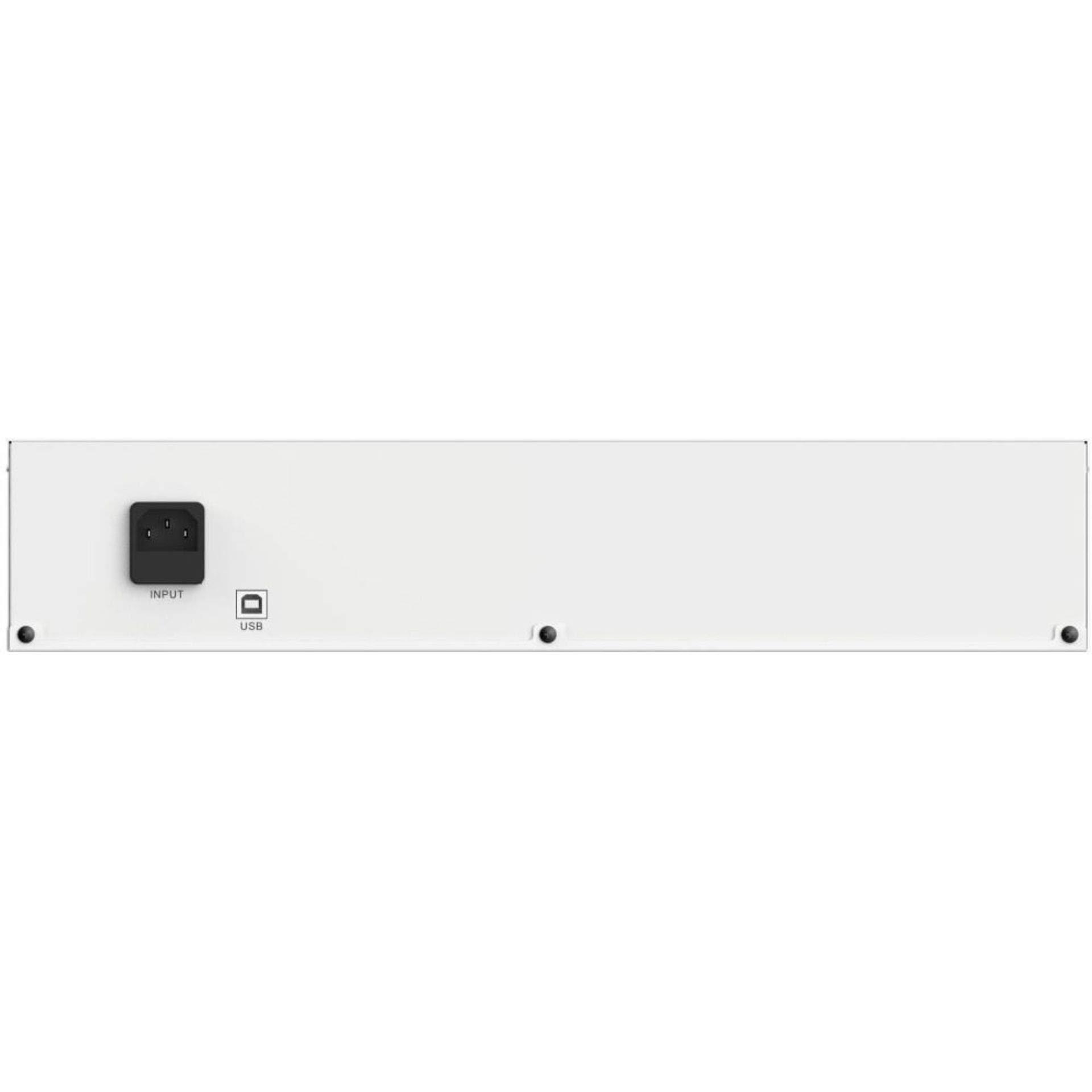

- Communication: USB
- Display and messages: 3 LEDs for monitoring the status of the UPS in real time.
Mechanical properties
- Dimensions H x L x D (mm): 88 x 440 x 150
- Net weight (kg): 5.5.
Environmental conditions
- Operating temperature (C): 0 40
- Relative humidity (%): <95% (non-condensing)
- Protection grade: IP20.
- Noise at 1 m (dBA): 40 dB
Compliance
- Certifications EN 62040-1, EN 62040-2, EN 62040-3 (VFD). The Keor PDU is not compatible with NAS. The Keor PDU is compatible with a PC with LINUX or Windows (Free Software UPS Communicator).
