Description

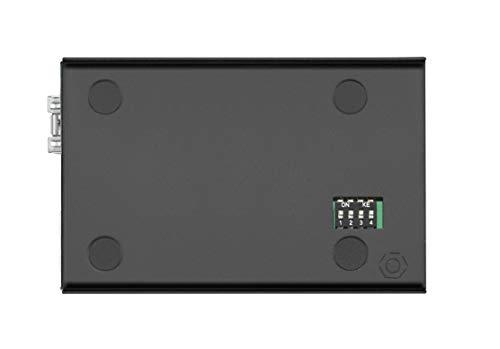

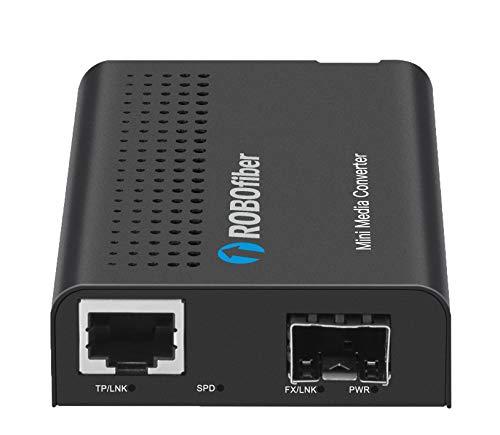

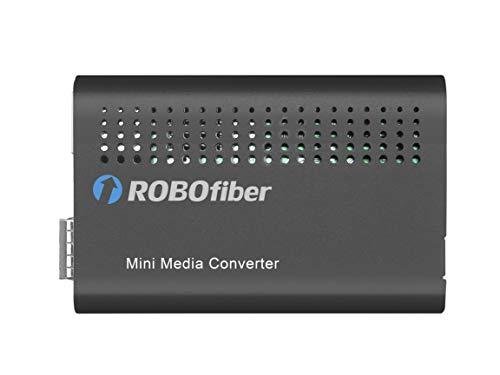

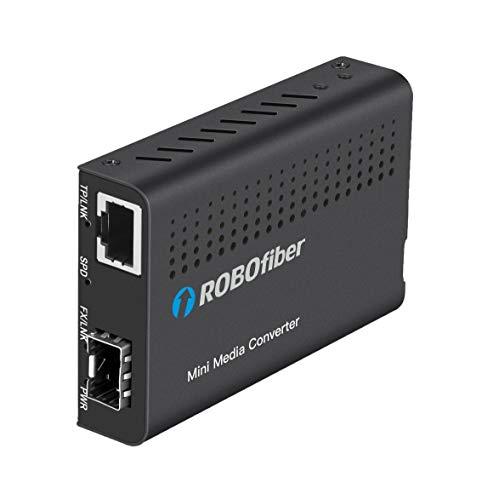

The LFC-100-SFP is a 10/100Base-Tx to 100Base-X SFP slot unmanaged Fast Ethernet media converter. The RJ-45 copper port has auto-negotiation 10/100 and MDI/MDI-X features and DIP switch settings available for LFP function, converter-switch mode and speed and flow controls for maximum flexibility and fine tuning of the fiber or copper link connection. LED indicators signal the power status of the converter, UTP port speed, UTP Link and FX port Link. Used with their compatible LFC-CH12 fiber optic chassis they can be aggregated up to 12 units in a 19" wide and only 1RU of height space only. This is the highest density attainable for unmanaged fiber media converters. The LFC-100-SFP Fast Ethernet media converter is a popular fiber media converter for the flexibility given by the SFP slot and the growing choice of LC optical connector. It also offers the optional wall mounting solution for individual converters named LFC-WMK.
