Description

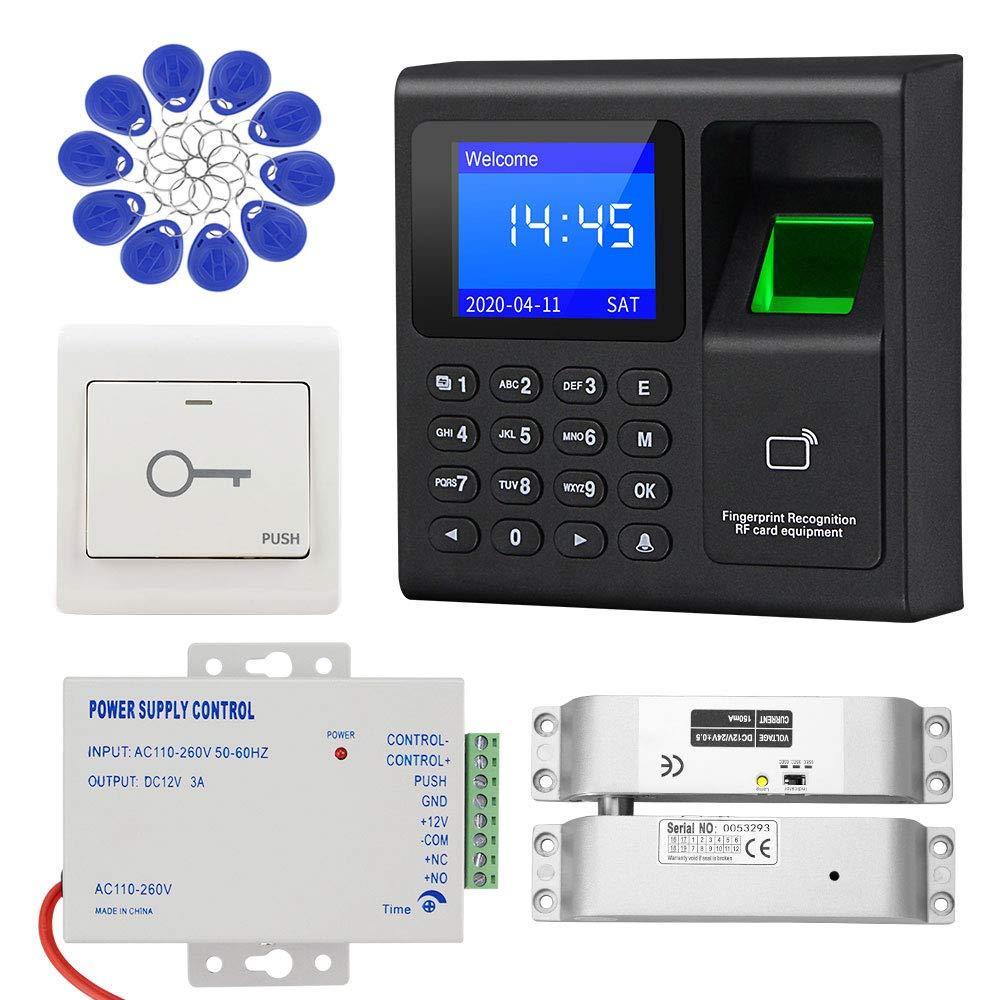

- 1, Introduction: This is a complete access control system, contain a fingerprint access controller, a power supply, a electric bolt lock, a switch button, and 10 pieces 125KHz RFID keychains. Off-line working, support to download attendance reports with U disk.
- 2, Fingerprint Access Controller: working frequency 125KHz, DC12V working voltage. Support to open door by fingerprint, password, RFID card, 1000 user capacity.
- 3, Electric Bolt Lock: DC12V working voltage. NC mode, Fail-safe type, unlocked when power off, locked when power on. Suitable for wooden door, glass door, metal door, fireproof door, etc.
- 4, Power Supply: power the access control system. Input: AC 110-260V / 50-60HZ, output: DC12V / 3A. Can control various type of single electric lock.

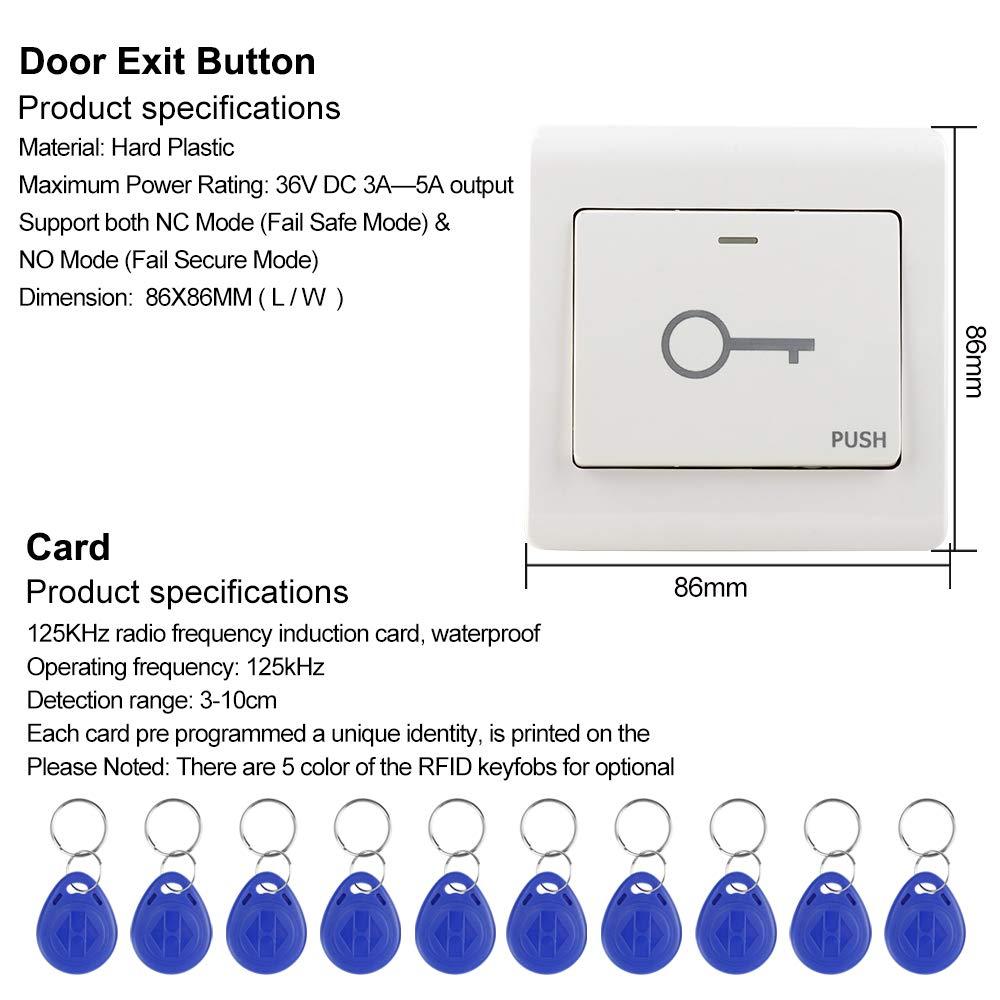

- 5, Exit Button: Made of fire retardant ABS plastic material. Working voltage is DC12V. With COM / NO wiring ports, suitable for various type of electric locks.
Fingerprint Access Controller
Model: F30-S
Screen: 1.8 inch TFT LCD color screen

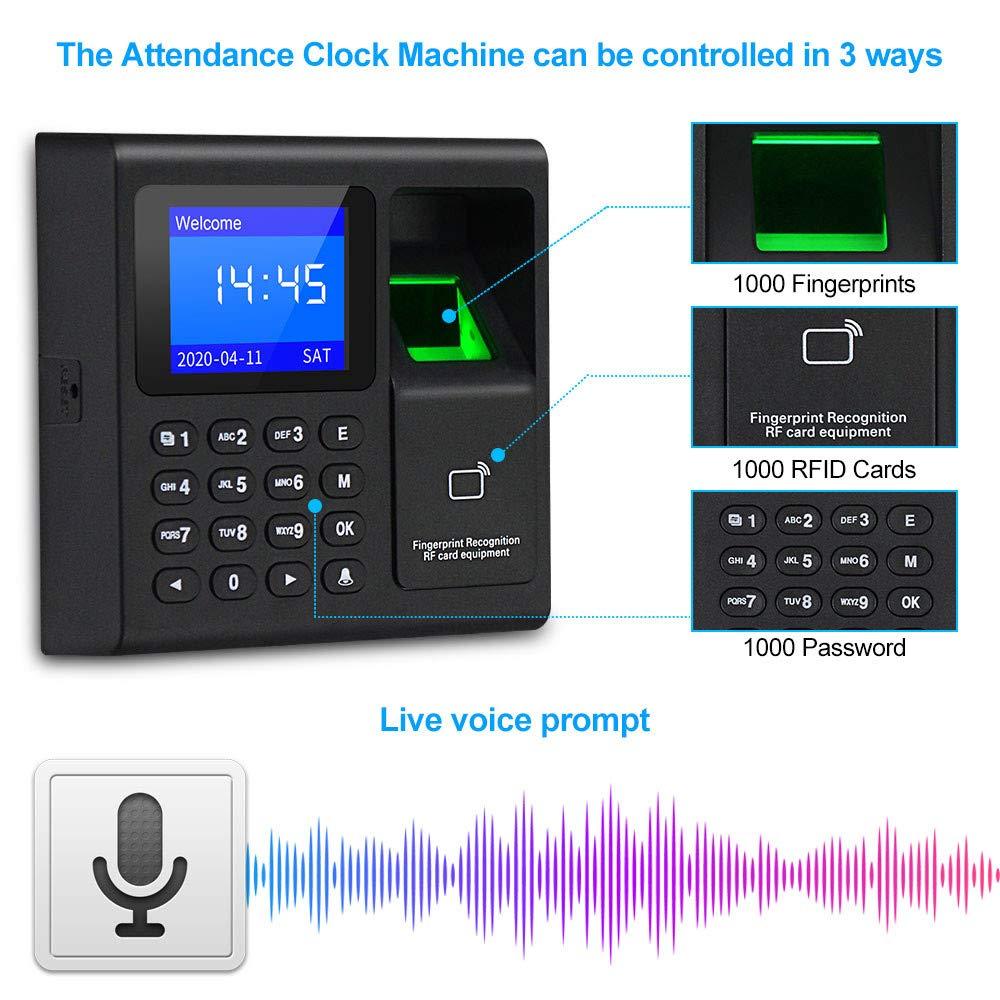

Verification methods: Fingerprint, password, RFID card
User capacity: 1000pcs fingerprints, 1000pcs password, 1000pcs RFID cards. Support 100,000 articles records.
Communication method: USB
Working frequency: 125KHz, working with EM cards or EM compatible cards
Display language: English, Chinese (Adjustable)
Voice prompts: High-definition human voice
Dimension: 90*90*28mm

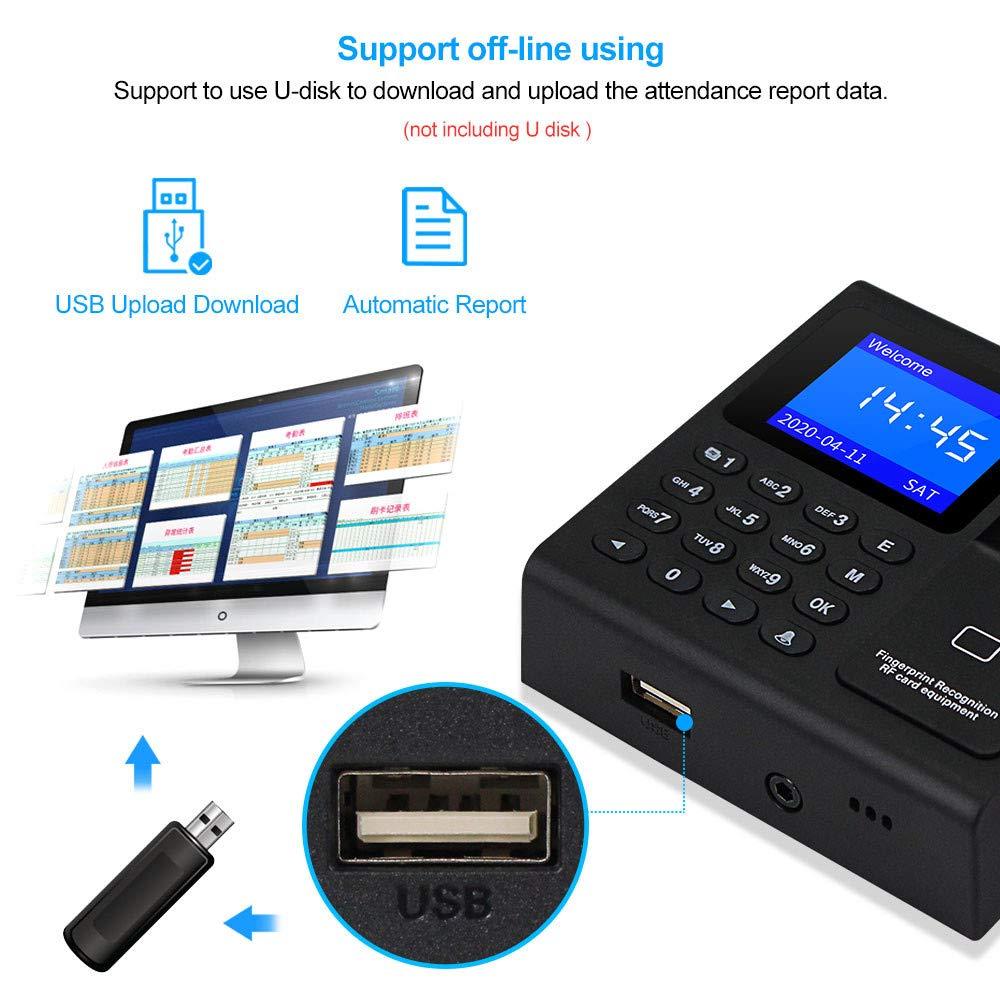

Support to download attendance reports in Excel format with U-disk. (The U disk have to be bought in extra.)

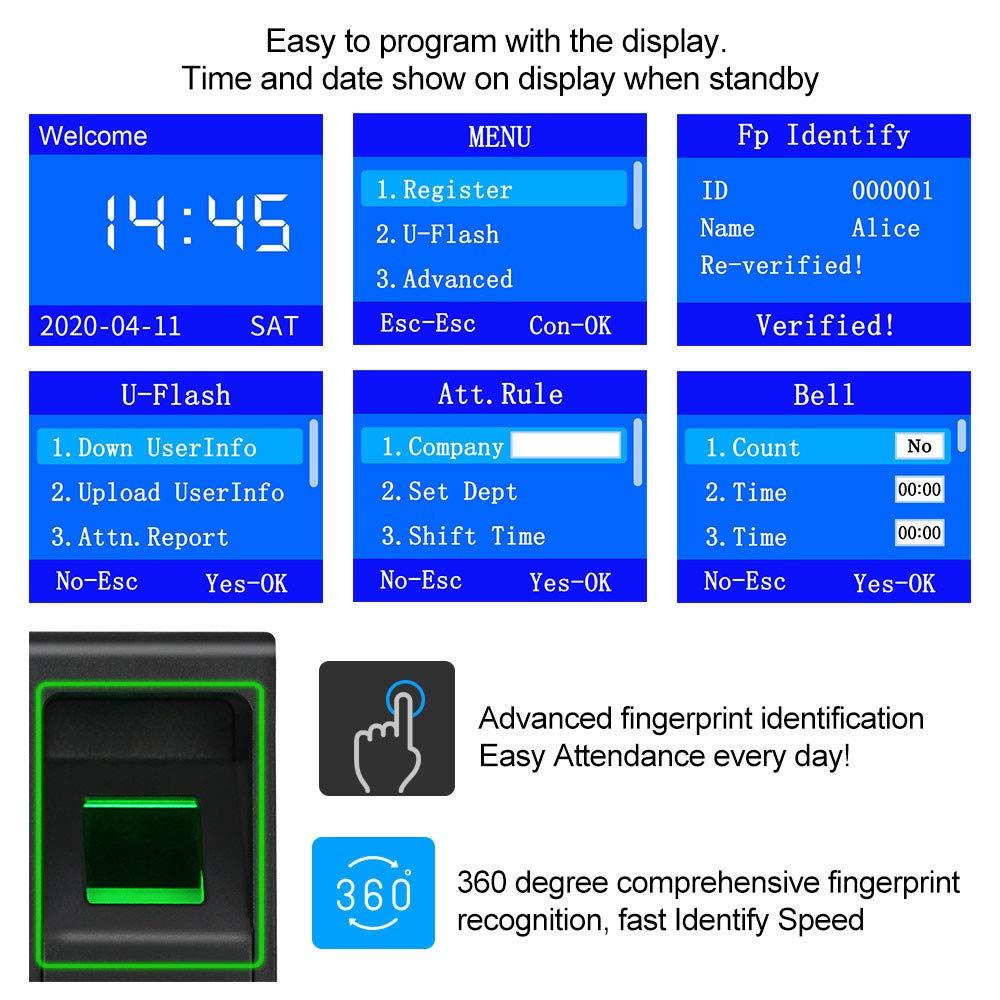

T9 input method editors with operation menu. Operation is convenient and simple.
Has Wiegand 26/34 input/output signal, relay output, door bell button.
Can be used as a standalone fingerprint time and attendance machine or standalone access control keypad.

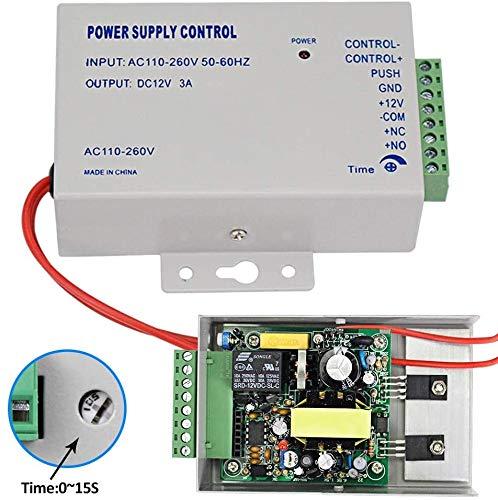

Power Supply
Voltage: input: AC 110-260V / 50-60 HZ; output: DC12V / 3A
Time delay: 0 ~ 15 s adjustable
Set NC / NO outputs, can control various type of single electric lock.
Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
Size: 100*65*32mm

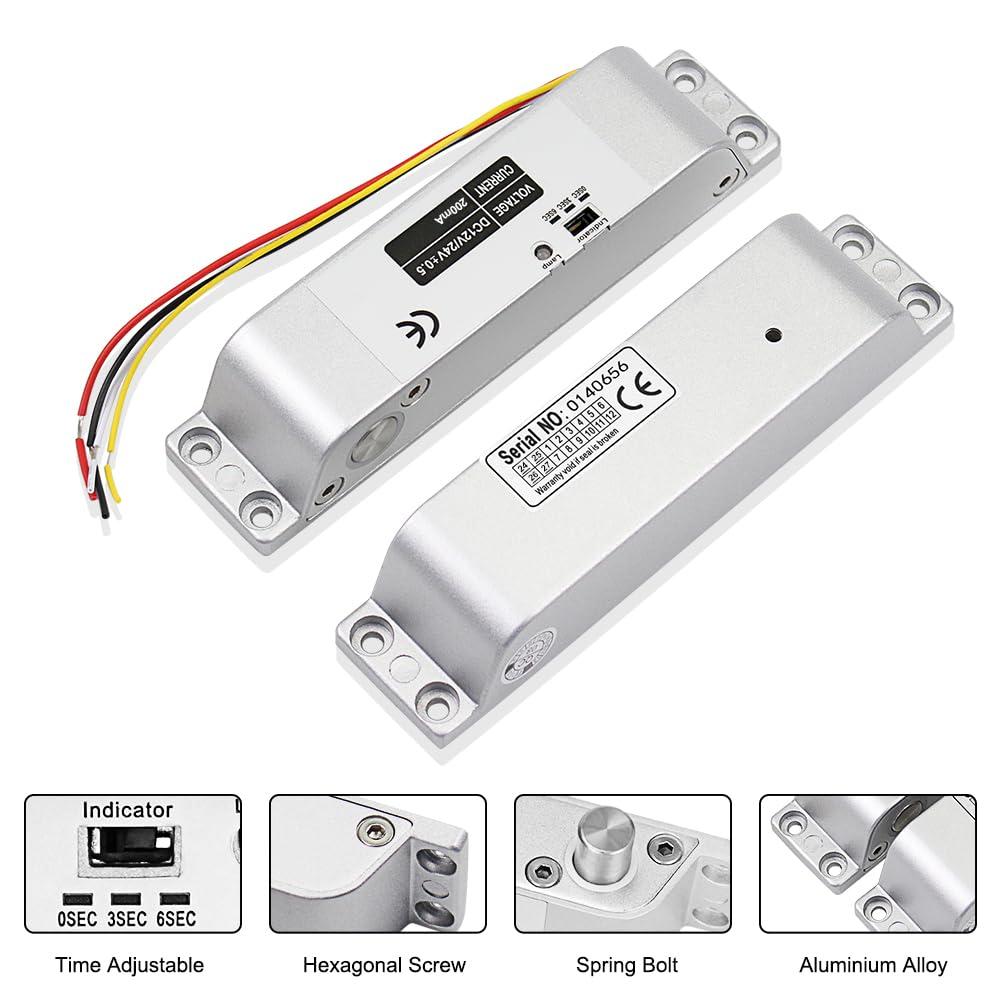

Electric Bolt Lock
Working voltage: DC12V, Working current: start state 1.2A, persistent state 120mA
Working mode: NC mode, fail-safe, unlocked when power OFF, locked when power ON.
Lock core: Diameter: 12.5mm, extending length: 15mm.
Time delay: 0s, 3s, 6s
Waterproof: yes, can be installed outdoors
Suitable for: wooden door, glass door, metal door, fireproof door, etc.

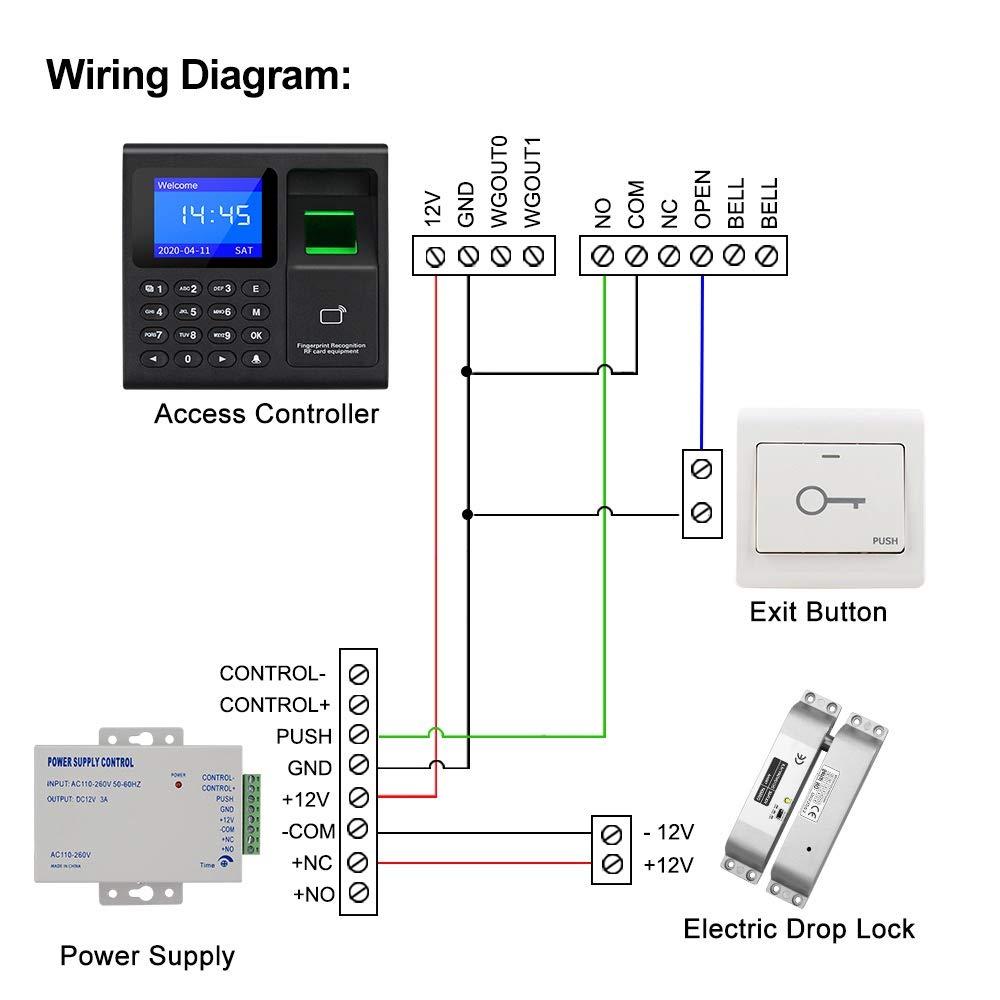

Wiring: Red to "NC" of the power supply, Black to "GND" of power supply. The yellow wire and white wire do not need to be connected.
Material: Aluminum alloy
Size: 150*34*28mm
Package List:
1 * Fingerprint Access Controller
1 * Electric Bolt Lock
1 * Power Supply
1 * Switch Button
10 * RFID Keyfobs
1 * User Manual
