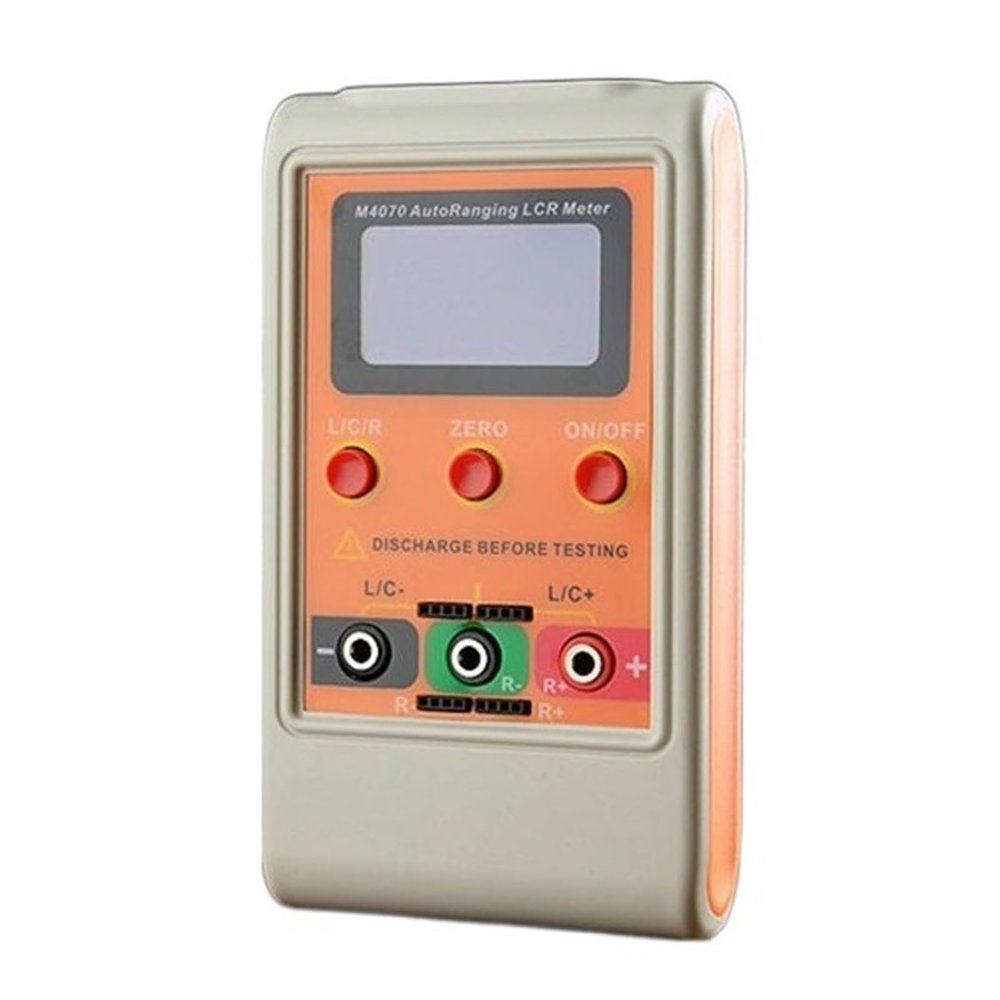

LIBODD Auto Range LCR Bridge Capacitance Meter Digital Capacitance Inductance USB PC Program Large Range 100H 100mF 20MR Rechargeable

Description

• Meter is an auto-ranging capacitance inductance tester with frequency up to 500KHz for small capacity capacitors and inductors.
• Provides stable and high resolution measurements up to 5 digits.
• Measures capacitance from 0.00pF to 100.00mF, resistance and inductance from 0.000uH to 100.00H and 0.00 to 10.000MT,
• LC oscillation and RC oscillation.
• LC is suitable for small-capacity measurements and RC for large-capacity measurements.

Features
-Fully automatic control design
-High resolution, up to 5-digit digital display, most accurate resolution: 0.01pF,0.001uH,0.01R
-High stability and L/C/R measurement range
-Built-in rechargeable battery, USB charging
-Large LCD display with backlighting
-USBPC program to record and analyse component pass and fail.
Product Specification
Models
M4070
LCR Tester Series
LCR Tester
Main parameters: L/C/R
Test Frequency
C:10 to 500Khz
L:10 to 360Khz
Test Method
Automatic selection of LC and RCO oscillation
Calibration
Power supply auto-calibration with internal reference capacitor
Test Voltage
~1.5Vrms
Best Tolerance
L:1% + 1 digit
C:1%+1 digit
R:0.5%+1 digit
LCD update or test time (*varies with component value)
<;3/s, (e.g. 100mFC capacitor 30s)
Measurement range selection
Automatic
Zeroing
Open/Short
Connector
Mini USB (virtual port)
Display Range
C 0.00pF~100.000mF(pF/nF/uF/mF)
L 0.000uH~100.000H(uH/mH/H)
Hz(LCO oscillation frequency)
0 to 900000Hz
(sec)(RCC constant time)
0.000 to 99.999
R 0.00 to 20.000M(/k)
Liquid Crystal Display
128X64 dot matrix with backlighting
Fuse Protection
200mA
Charging Interface
Mini USB (500mA)
Battery
Built-in 3.7V lithium polymer battery
Number of Test Ports
Primary 3, Secondary 4
Reading Display
Maximum 99999
