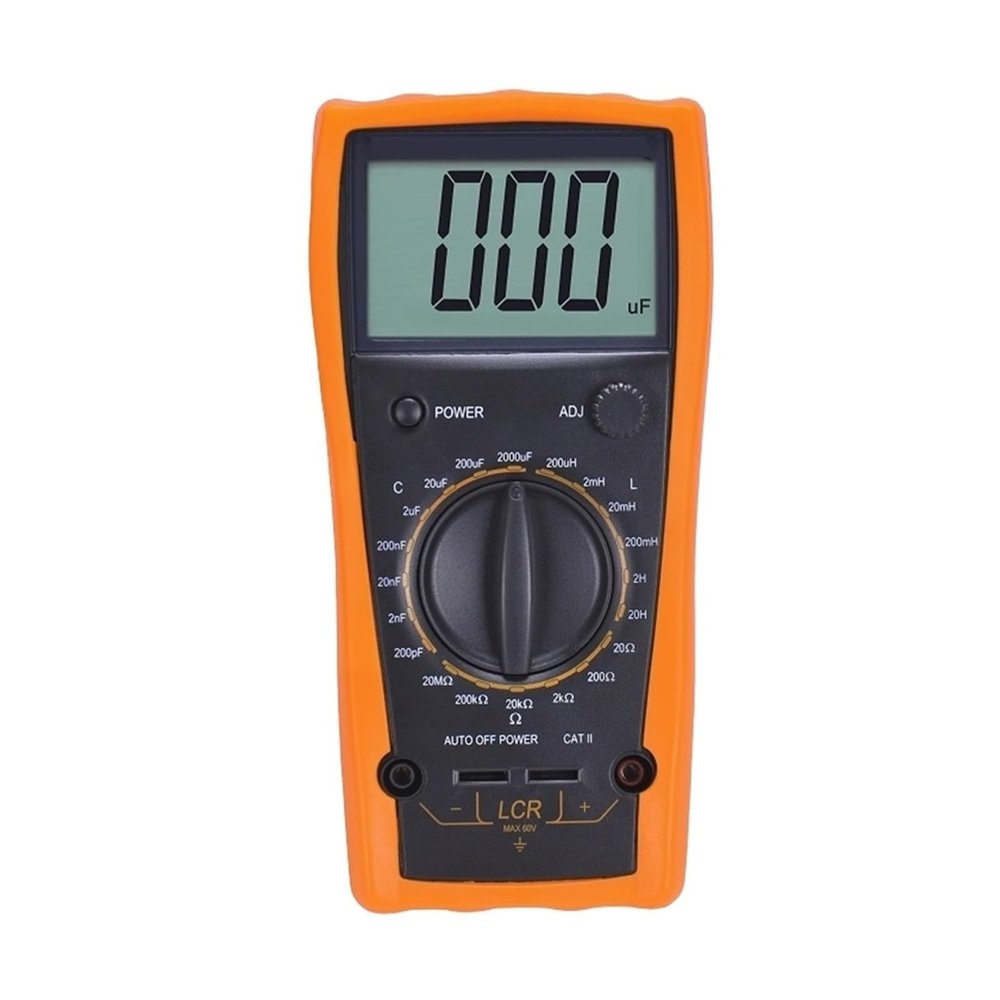

LIBODD Digital LCR Meter 20H Inductance 2000uF Capacitance 20M Ohm Resistance Self-Discharge R C LCD Bridge Multimeter Tester

Description

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
• External Interfaces: One is equipped with external interfaces for connection and data transfer to other equipment or computers for more extensive data processing and analysis.

Features:
Display: LCD Max. display: 1999
Inductance measurement: 0.1uH - 20H
Capacitance measurement: 0.1pF - 2000uF
Resistance measurement: 0.01 - 20M
Zero adjustment: To obtain accurate measuring values, perform zero adjustment before
measuring capacitance under 20nF
Over range: display"1"
Low battery indicator: " " symbol appears
Sampling rate:0-5 seconds
Working temperature: 0 - 40
Relative humidity: less than 80%
Size: 185mm93mm35mm (length width height)
Weight: Approx.290g
Power source: one 9V 6F22 battery (Not Included)
Battery life: alkaline battery lasts 150 hours
Standard accessories: test leads, operation manual
Electric characteristic:
<;75%.
Package List:
1x LCR Meter
1x Test lead
1x Users manual
1x Retail Box
