Description

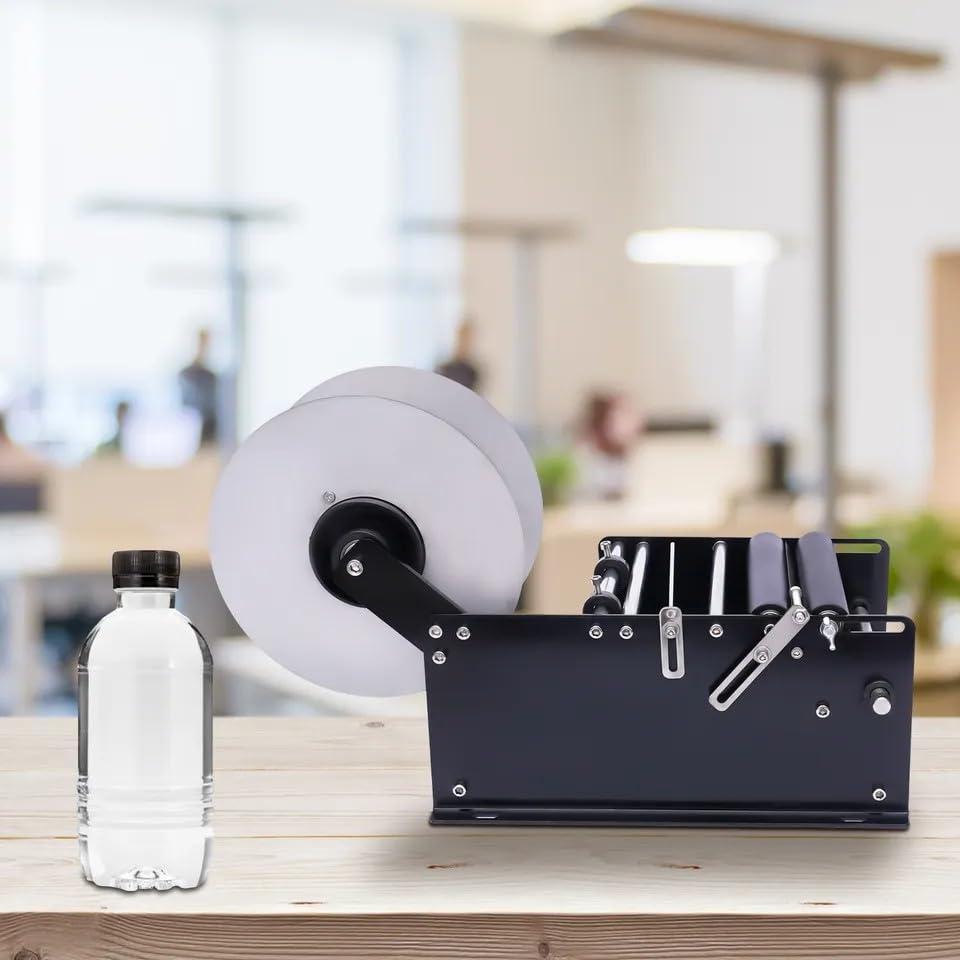

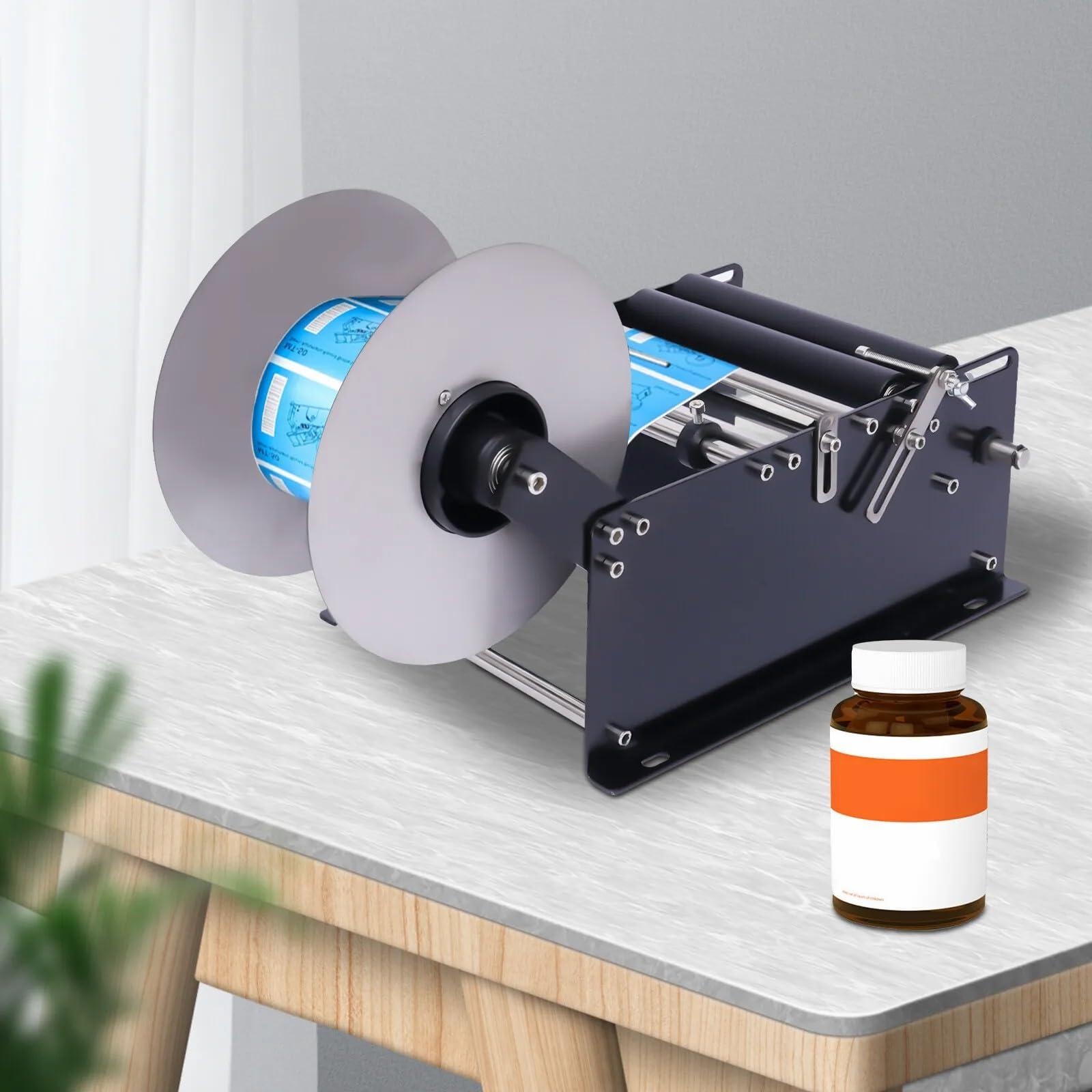

- High EfficiencyThis Round Bottle Labeling Machine is equipped with a symbolic hand joystick to adjust the speed of labeling bottles. The labeling efficiency is about 10-30 pcs/min (depending on the different bottles), which is efficient and time-saving.
- Labor-savingWith this Manual Labeling Machine, you don't have to struggle with subway labels. You just need to put the bottle on it and then shake the hand joystick to finish the labeling work easily, which is very labor-saving.
- Saving SpaceLabel Applicator can be freestanding and can be mounted on a desktop. If you install it on the desktop, it will not take up any floor space and can save you a lot of space.
- Less NoiseThis Self-Adhesive Bottle Labeler is very quiet when in use, which can bring you a more comfortable working environment. The surface of this product is smooth and flat, which is easy to clean. You just need to wipe it with a dry rag.
- Good MaterialThis Label Machine is made of high-quality iron and uses a high-temperature baking paint process to make it sturdy, durable, and not easy to deformation to extend its service life. It has a labeling accuracy of 0.5mm/0.01inch, which is high enough to make the label position of the product neatly organized.
Specification
Model: MT-30
Color: Black
Material: Iron
Style: Modern
Process: High-temperature Baking Paint Process
Mounting Type: Desktop Mount, Freestanding
Accuracy: 0.5mm/0.01inch
Suitable Bottle Diameter: 15-120mm/0.5-4.7inch
Label Speed: 10-30pcs/min
Label Roll Inner Diameter: 75mm/2.9inch
Laber Roll Out Diameter: 250mm/9.8inch
Label Width: 10-110mm/0.3-4.3inch
Label Length: 10-300mm/0.3-11inch
Net Weight: 5kg/11.02lbs
Gross Weight: 5.5kg/12.13lbs

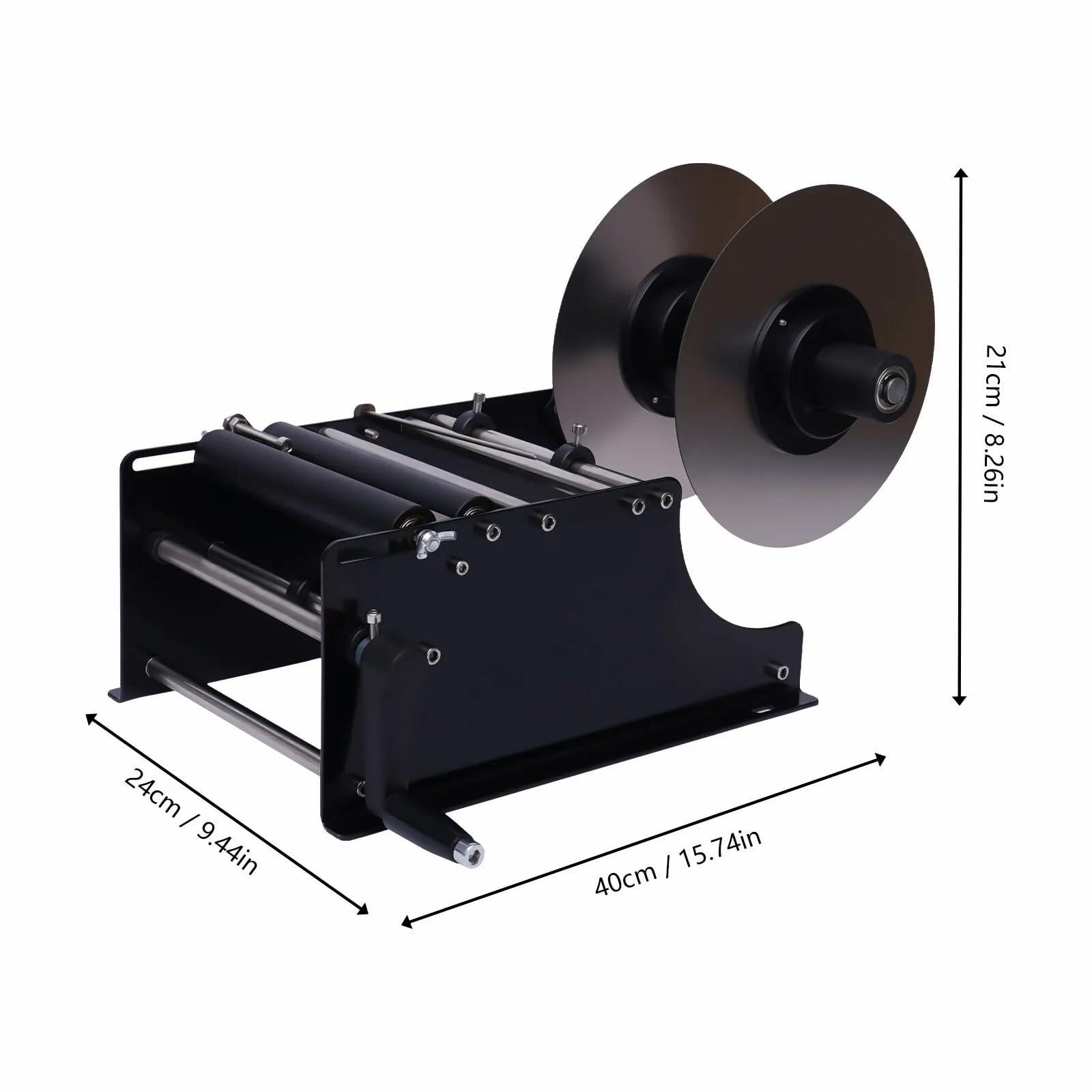

Package Size: 42*25*28cm/16*9.8*11.0inch
Installation
Attach the label cartridge to the side of the machine with screws and nuts.
Attach the nut and the label cartridge with a silicone ring.
Fix the paper supply tray and the middle part with screws.
Insert the paper supply tray into the label cartridge.
Attach the hand joystick to the side of the machine with screws.
Attach the remaining part of the hand joystick.
The installation is complete.
How to Use
Use an allen key to unscrew the paper supply tray.
Insert the label into the label roller and reattach the paper supply tray.
Pull out a piece of label paper and insert it into the machine in sequence.

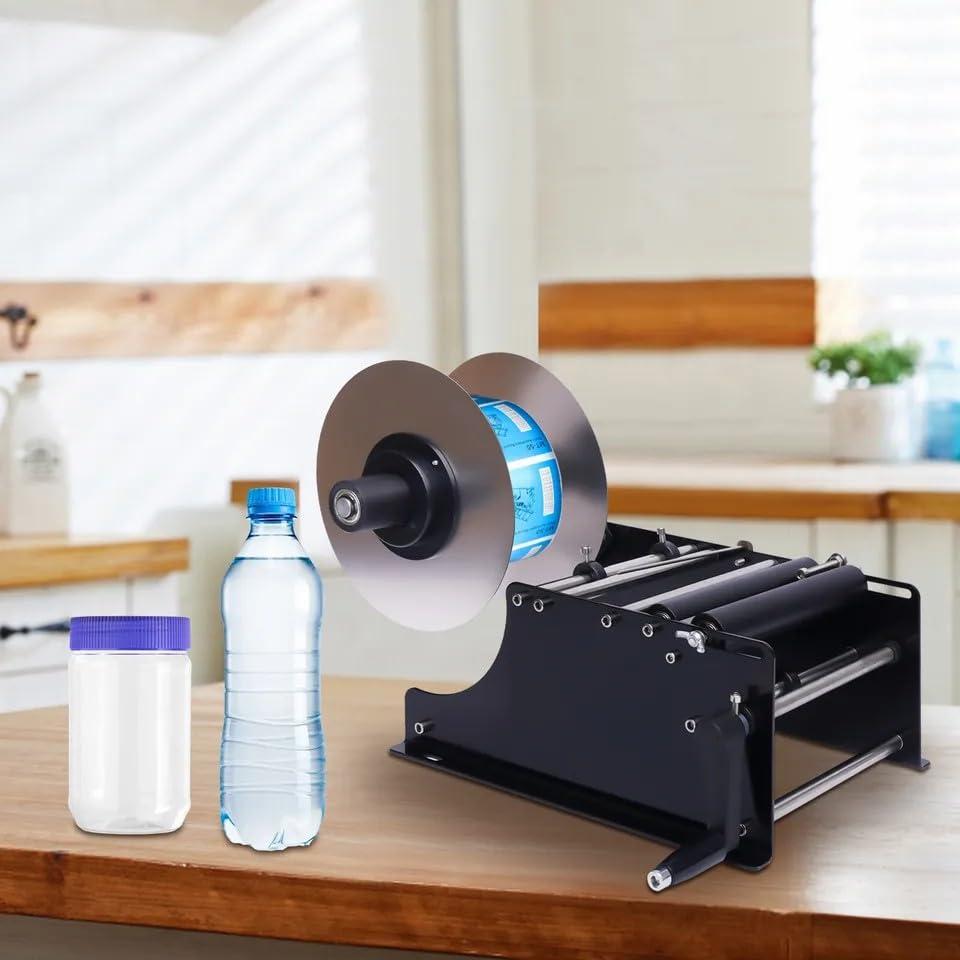

Place the bottle on top of the machine.
Rotate the hand joystick to complete the labeling.
Package Included
1* Labeling Machine
2* Paper Supply Trays
1* Label Cartridge
1 Set* Hand Joystick
3* Allen Keys
1* Silicone Ring
11* Screws
2* Label Tray Clamps
Other Accessories for Assembly
Notes
It's suggested that you put a piece of tape at the beginning of the label to easy pulling.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement.
