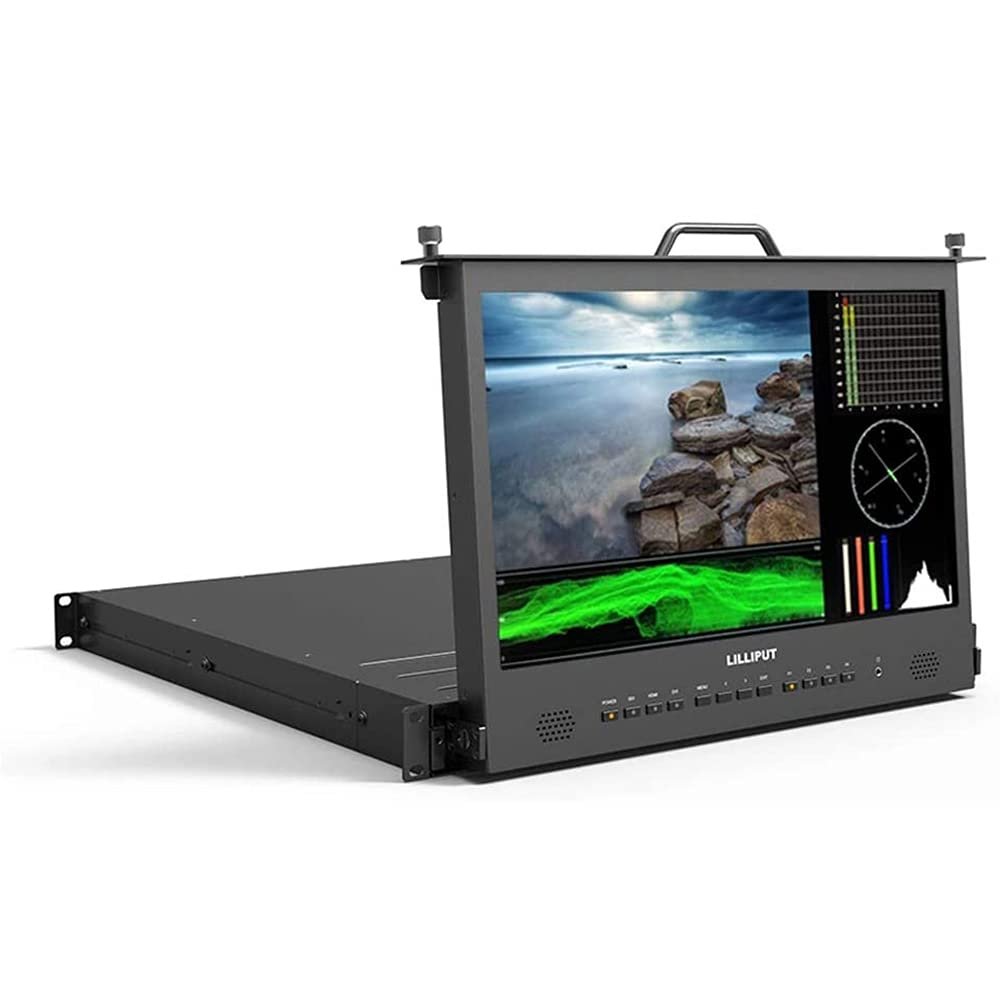

LILLIPUT 17.3" RM-1730S 1RU Pull-Out Monitor 19201080 700:1 Contrast 3G-SDI, HDMI, DVI, Audio & Tally inputs, SDI and HDMI Cross Conversion

Description

• Model:RM-1730/S 1RU Pull-out Monitor
• 19201080, Full HD resolution,
• 300cd/m high brightness,
• 700:1 high contrast,
• SDI and HDMI cross conversion,

MODEL :RM-1730/S
1RU Pull-out Monitor
19201080, Full HD resolution,
300cd/m high brightness,
700:1 high contrast,
1RU pull-out drawer type,
3G-SDI, HDMI, DVI, Audio & Tally inputs,
SDI and HDMI cross conversion
, Waveform PIP mode, vector,
Column (YRGB peak), time code.
DISPLAY:
Display Screen 17.3" IPS
Physical Resolution 19201080
Aspect Ratio 16:9
Brightness 300cd/m2
Contrast 700:1
Viewing Angle 178/178(H/V)
INPUT:
3G-SDI 1
HDMI 1
DVI 1
AUDIO 2 (L/R)
TALLY 1
OUTPUT:
3G-SDI 1
HDMI 1
AUDIO:
Speaker 2
Ear Phone Slot 1
SDI FORMAT
SMPTE-125M 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-372M 720p(60/59.94/50)
1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M-AB
-Level A & Level B 1080p(60/59.94/50)
1080i(60/59.94/50)
720p(60/59.94/50/30/29.97/25/24/23.98)
ITU-R BT.656 576i(50)
HDMI FORMAT:
Full HD ~ HD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER:
Current 2.8A
Input Voltage DC 10-18V
Power Consumption 32W
ENVIRONMENT
Operating Temperature -2060
Storage Temperature -3070
DIMENSION
Dimension(LWD) 482.544507.5mm
Weight 8.6Kg
What's in the package
: TALLY connectorx1; DC adapterx1
