Description
- 9.7" Monitor With 4:3 Aspect Ratio: The 9.7" LCD used in 969A/S is the ideal size for a small broadcast monitor. Large enough to pick out the finest details in a shot, but small enough to fit on any desk.
- Natively High Resolution Broadcast Monitor: High resolution is important to broadcast monitors because the higher resolution, the more detail you see. The natively high resolution (1024__768 pixels) provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content.
- 1:1 Pixel Mapping - Find the Finest Details: 969A/S shows you the true detail your still shots. This feature is called 1:1 pixel mapping, allowing you to maintain the original resolution of your cameras output and avoid any unexpected focus issues in post-production.
- HDMI Video Output - No Annoying Splitters: 969A/S includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.
- 3G-SDI Inputs: 969A/S includes all the 3G-SDI connections that a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.
Description:

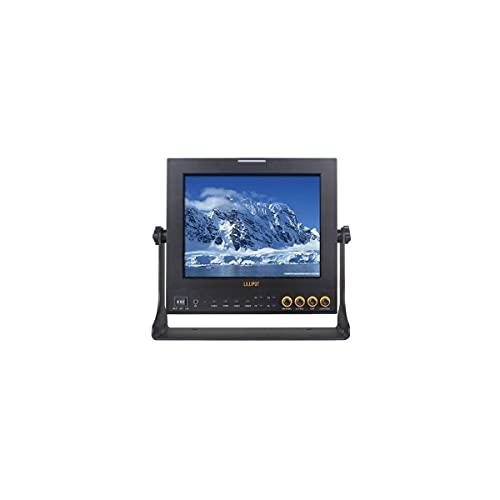

- 9.7" 3G-SDI Monitor with Advanced Functions for Full HD Camcorder.
- Model: 969A/S
- IPS panel wide viewing angles,
- 3G-SDI input / output
- USB 5V output for charging
- Wide voltage: DC 7-24V
- TALLY interface with indicating light
- Gimbal bracket for installation
- Suitcase make monitor watertight, crushproof and dust proof.
Advanced Functions:
Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture.
Specification:
- Panel Size: 9.7"
- Physical Resolution: 1024x768
- Aspect Ratio: 4:3
- Brightness: 420cd/
- Contrast: 600:1
- Viewing Angle: 178/178(H/V)
- Input Signal: HDMIx1, YPbPr, Audio(L/R), TALLY,3G-SDI
- Output Signal: HDMI,YPbPr, USB(5V), 3G-SDI
- Audio: Speakerx1(built-in), Ear Phone Slotx1(built-in)
- Current: >1500mA
- Input Voltage: DC 7-24V(XLR Connector)
- Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
- Power Consumption: 18W
- Operating Temperature: -2060
- Storage Temperature: -30~70
- Dimension(LWD): 246x224x31mm/167.5mm(with cover open)
- Weight: 1068g / 1388g (with cover)
Accessories:
1. Flexible folding sun shade cover: 1 piece
2. Battery plate bracket: 1 piece
3. Battery plate (F970 and LP-E6 as default, for other option(QM91D, DU21), please contact us when you order. )
4. HDMI A/A cable: 1 piece
5. DC 12V power adapter (XLR connector): 1 piece
6. TALLY connector: 1 piece
7. Manual: 1 copy
8. Gimbal bracket : 1 piece
