Description

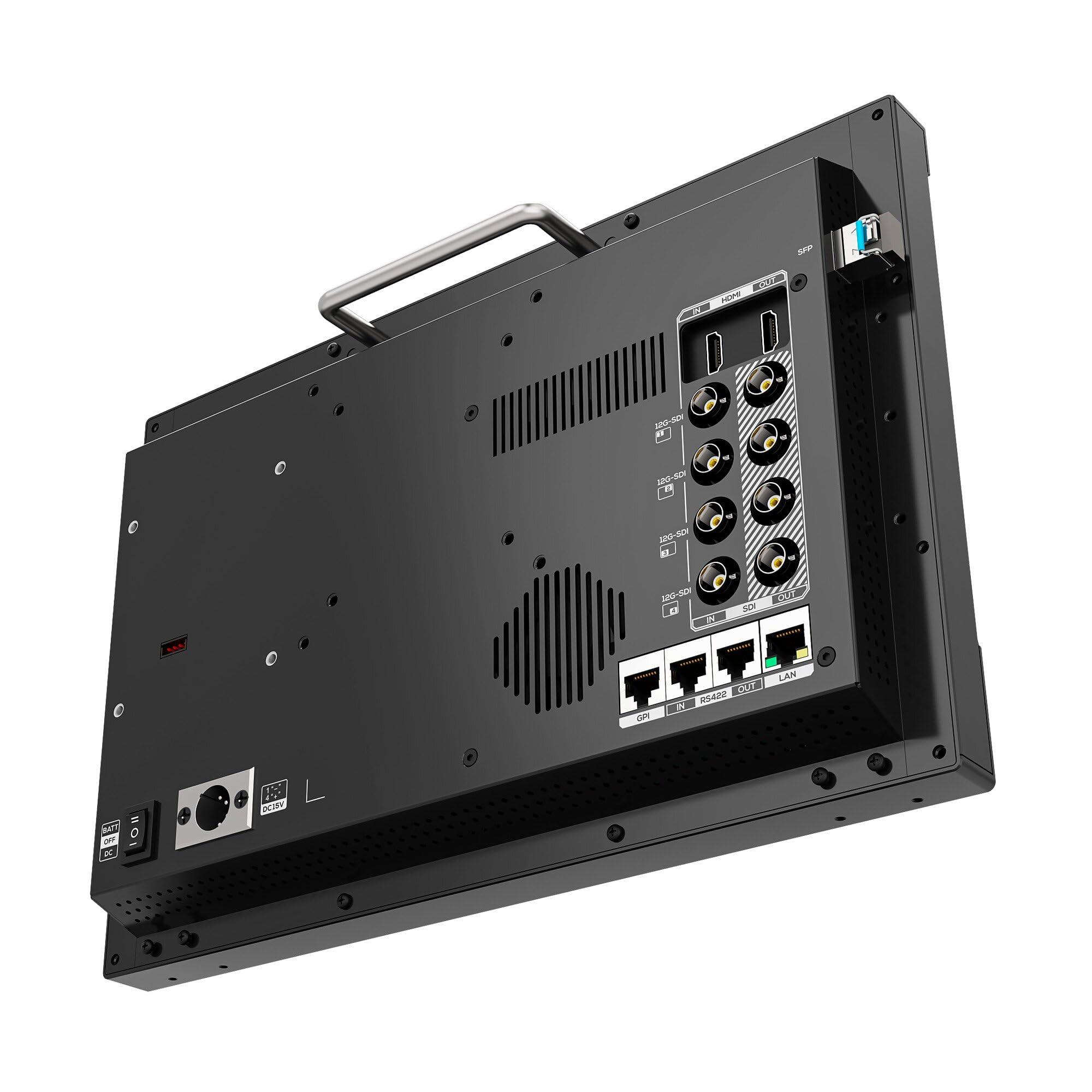

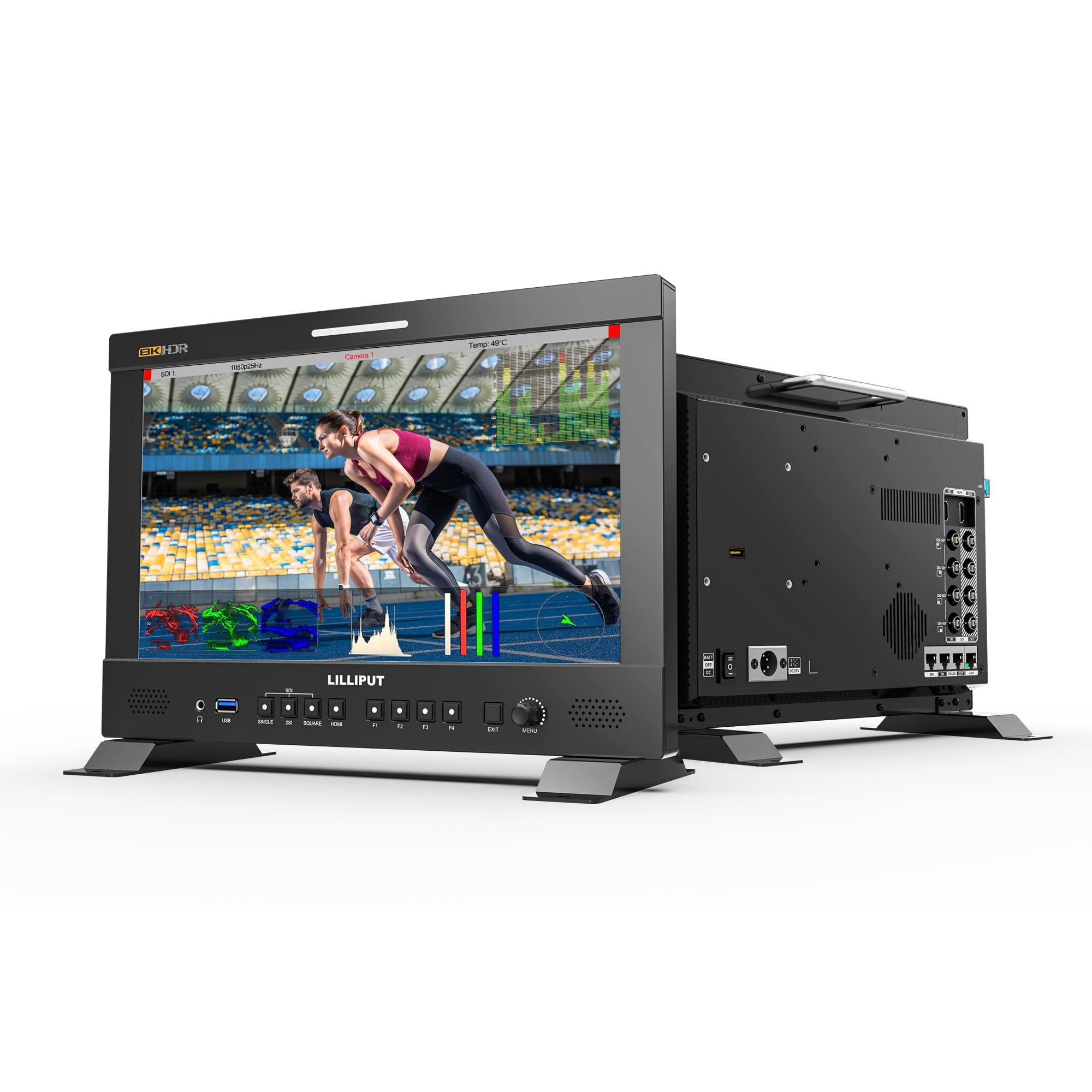

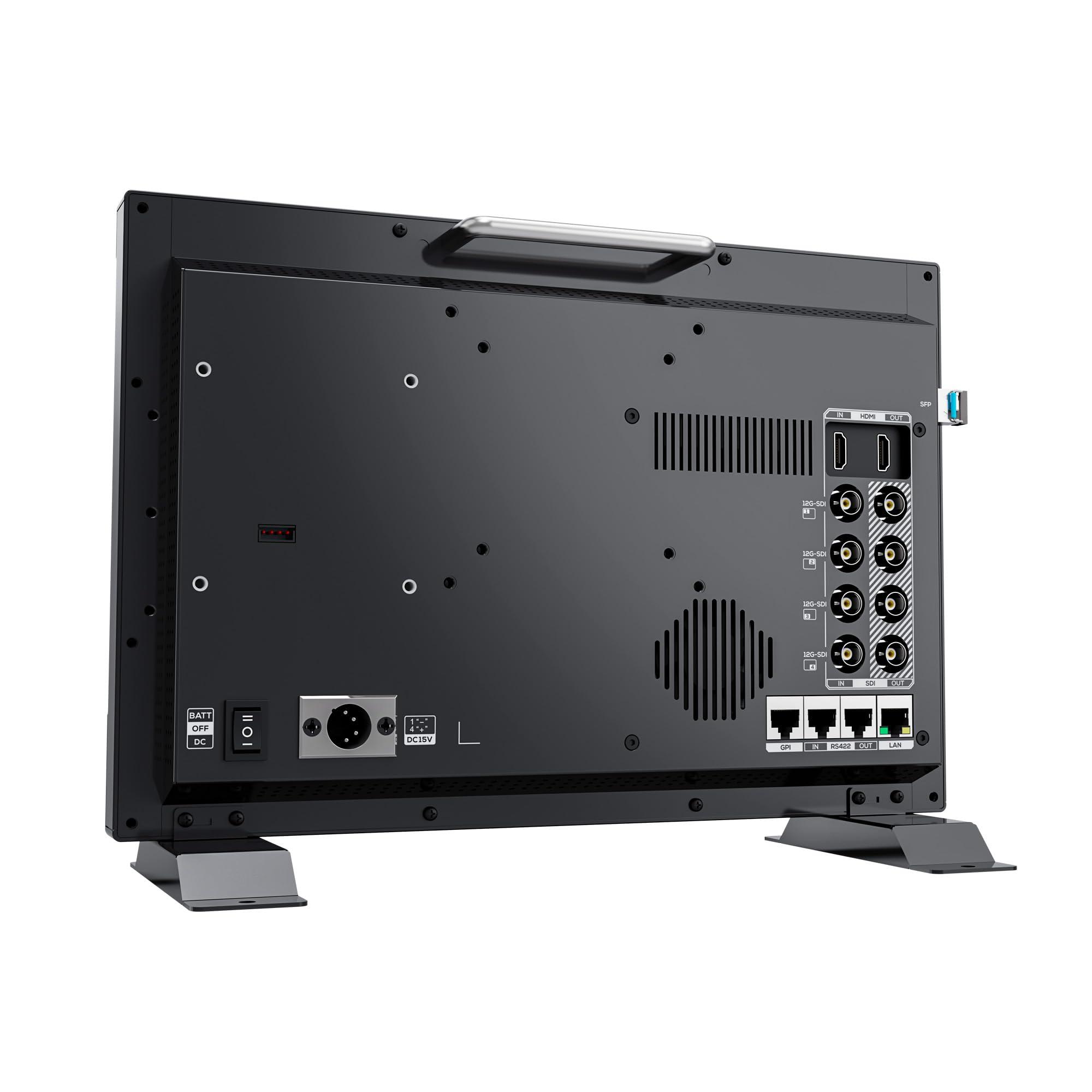

- The Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor from Lilliput features a 13.3" native 3840 x 2160 resolution display with a V-mount battery plate, useful for both studio and field situations. The monitor features one HDMI 2.0 input and four 12G-SDI inputs, allowing for single-, dual-, and quad-link SDI input of up to 8K resolution video. In addition, the monitor supports an optional 12G SFP+ card, so you can display images over fiber on this monitor. The monitor also features loop-through HDMI and 12G-SDI outputs to pass the signal downstream.

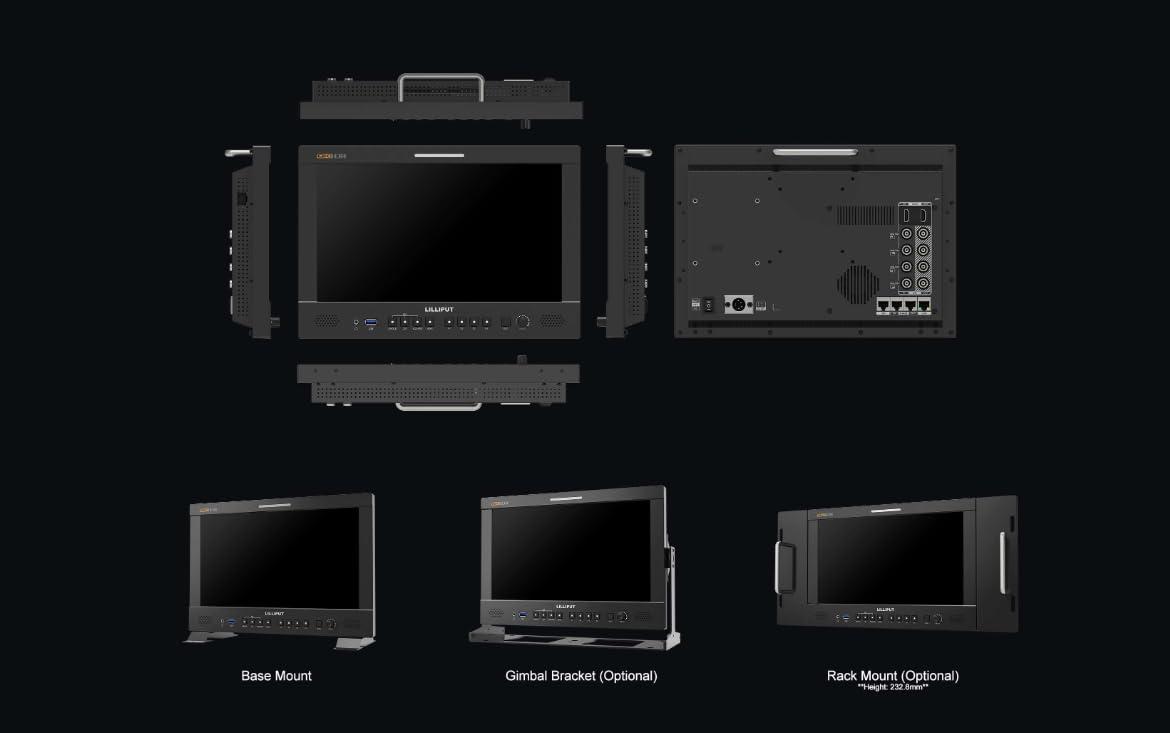

- Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and 3D-LUTs. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.
- Key Features 13.3" 3840 x 2160 Resolution Monitor Supports up to 8K Input HDMI & 12G-SDI Inputs, Optional 12G SFP HDR Support, Load Custom 3D LUTs 178 H/V Viewing Angle 300 cd/m Brightness 1000:1 Contrast Ratio
the Q13-8K 13.3" 8K 12G-SDI Studio / Broadcast Monitor from Lilliput features a 13.3" native 3840 x 2160 resolution display with a V-mount battery plate, useful for both studio and field situations. The monitor features one HDMI 2.0 input and four 12G-SDI inputs, allowing for single-, dual-, and quad-link SDI input of up to 8K resolution video. In addition, the monitor supports an optional 12G SFP+ card, so you can display images over fiber on this monitor. The monitor also features loop-through HDMI and 12G-SDI outputs to pass the signal downstream. Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and 3D-LUTs. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field. Features Monitoring Tools Peaking Check field Image rotation/flip Overscan Underscan Image freeze Pixel-to-pixel False color Exposure Histogram Timecode (SDI-only) Aspect ratio selection Screen markers Color space HDR Color temperature adjustment HDR and 3D LUTs When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front-panel USB port. Supported Log Formats SLog2, SLog3, CLog, NLog, ARRILiog, JLog, and User Supported HDR ST2084 300/1000/10000/HLG Audio The monitor can display the Lissajous shape, most useful when used in audio postproduction work for detecting phase variance. Assignable Buttons Using the four assignable buttons on the front panel, you can quickly turn any four monitoring tools on and off without venturing into the monitor's menu system. Remote Control The monitor supports RS-422 via discrete in and out RJ45 LAN connectors. This allows you to control the monitor from computer applications as well as link multiple monitors together. Calibration The monitor supports color calibration in different color spaces, such as Rec. 709, NTSC, and DCI-P3, as well as using an optional PRO/LTE version of ColorSpace CMS by Light Illusion, to ensure your monitor is displaying your image accurately.
