Description
- Power Rating: 200W
- Attenuation: 3dB per step (2 positions of 6dB before off)
- Use With: 70V speaker line
- Activation: Rotary dial
- Volume Positions: 0-10

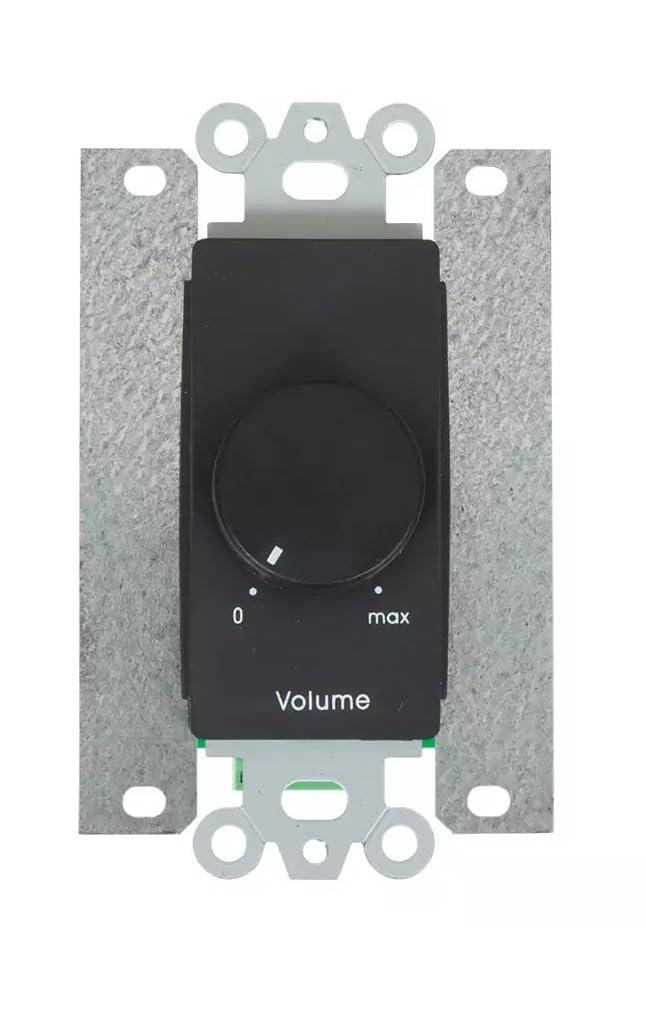

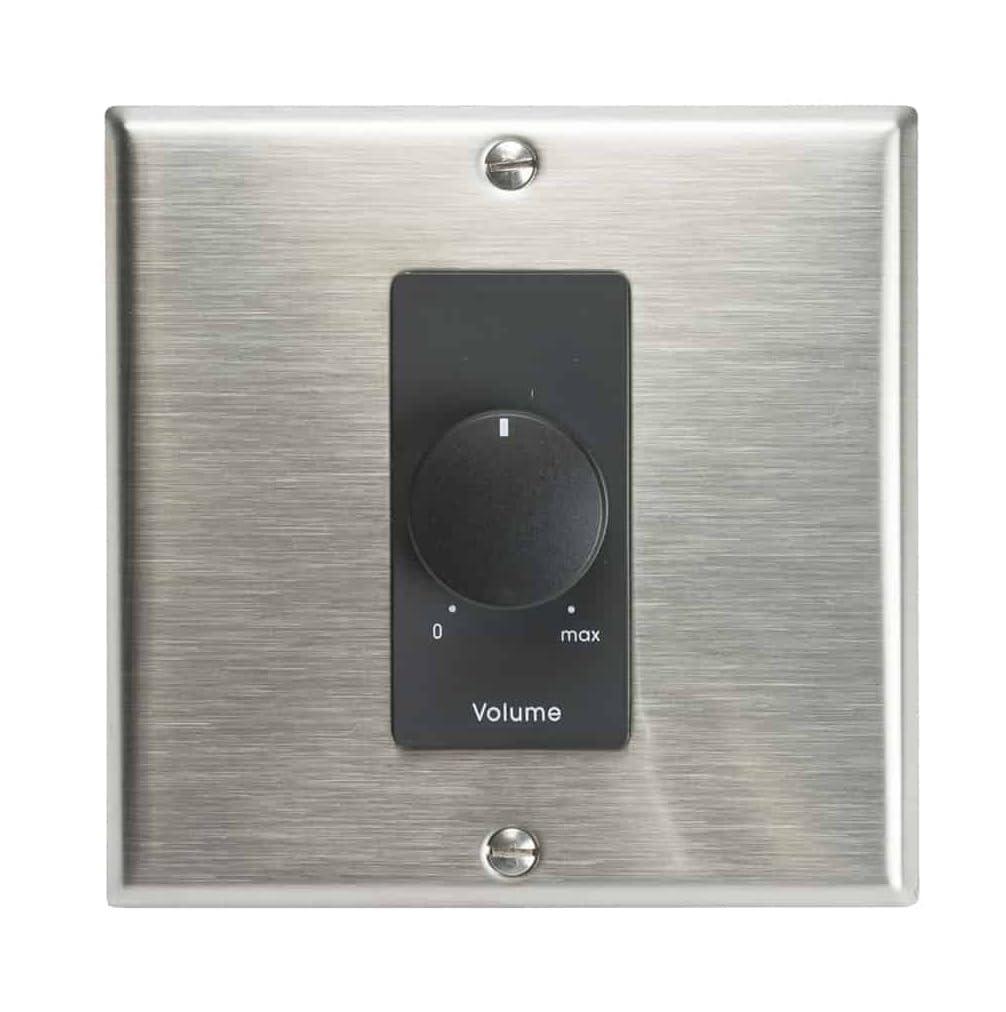

Lowell 200LVC-DSB 200W Mono Volume Control with 2-Gang Decorator Wall Plate, Stainless Steel/Black; 3dB per Step; for Use with 70V Speaker Line; Rotary Dial; Phoenix-Style Termination
200W mono autoformer attenuator volume control for use with 70V single or multiple speaker lines features a rotary dial, 200W power rating, 3dB per step attenuation (2 steps of 6dB each before off) and Phoenix style plug-in screw termination strips. Includes two-gang decorator style stainless steel wall plate with black sub-plate
Key Features:
- Power Rating: 200W
- Attenuation: 3dB per step (2 positions of 6dB before off)
- Use With: 70V speaker line
- Activation: Rotary dial
- Volume Positions: 0-10
- Termination: Phoenix-style
- Wire Capacity: 14-gauge
- Wall Plate: 2-gang decorator style
- Finish: Stainless Steel and black
- Fits standard 2-gang E.O. box (2.5 in. min. depth)
Specifications:
- Power Rating: 200 W
- Attenuation Steps: 3 dB (Models with 33dB total have 2 steps of 6dB each before off)
- VC Type: autoformer
- Mount Type: Decorator wall plate (Adhesive labels are used in rackmount panels or custom applications)
- Plate Size: 2-gang
- Color: stainless steel/black
- Switch: knob
- Listing: ETL
- For Use With: 70V speaker line
- Shipping Weight: 2 lbs
