Lowell Manufacturing

Lowell ES-52T 5.25-Inch Coaxial Ceiling Speaker with Transformer, Grille, Enclosure, Mounting Ring/Rails; Coaxial Driver with High-Frequency Mylar Tweeter/Acoustic Lens; 16 W Transformer with Bypass

$ 288.19
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • Driver: 5.25 inches coaxial driver with high-frequency Mylar tweeter/acoustic lens

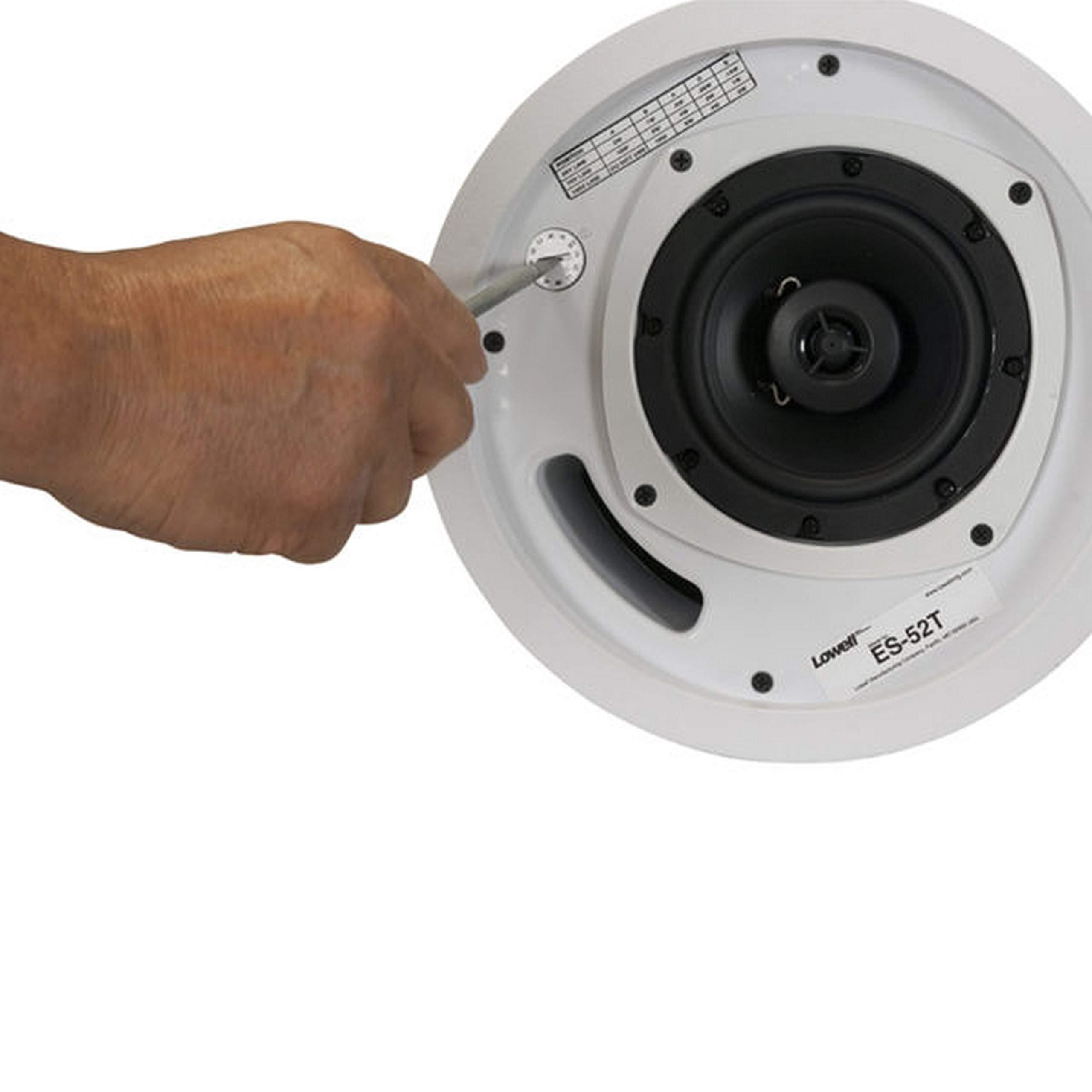

  • Transformer: 16W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 8 ohm transformer bypass position

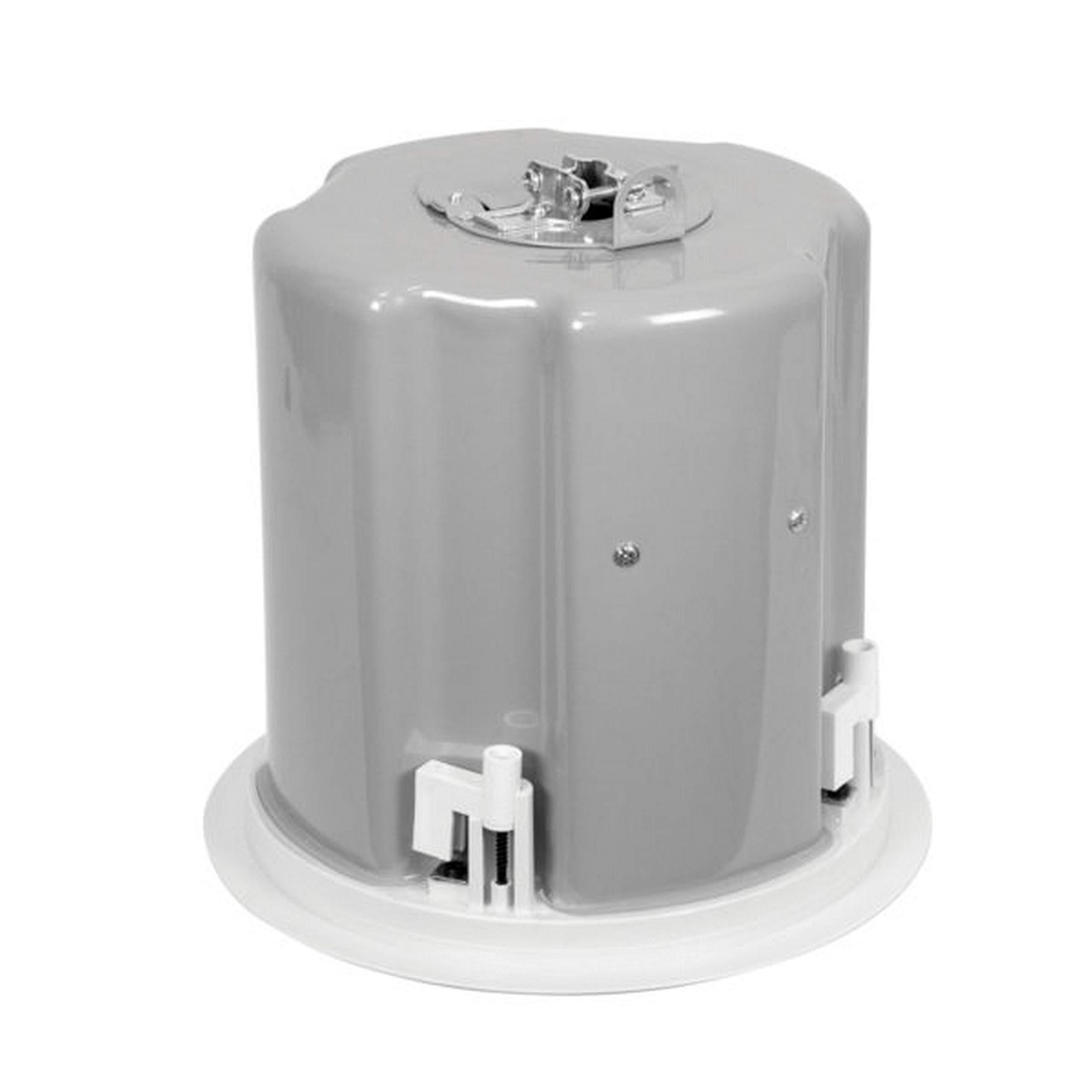

  • Enclosure: Painted (grey) steel back-can with mounting dogs

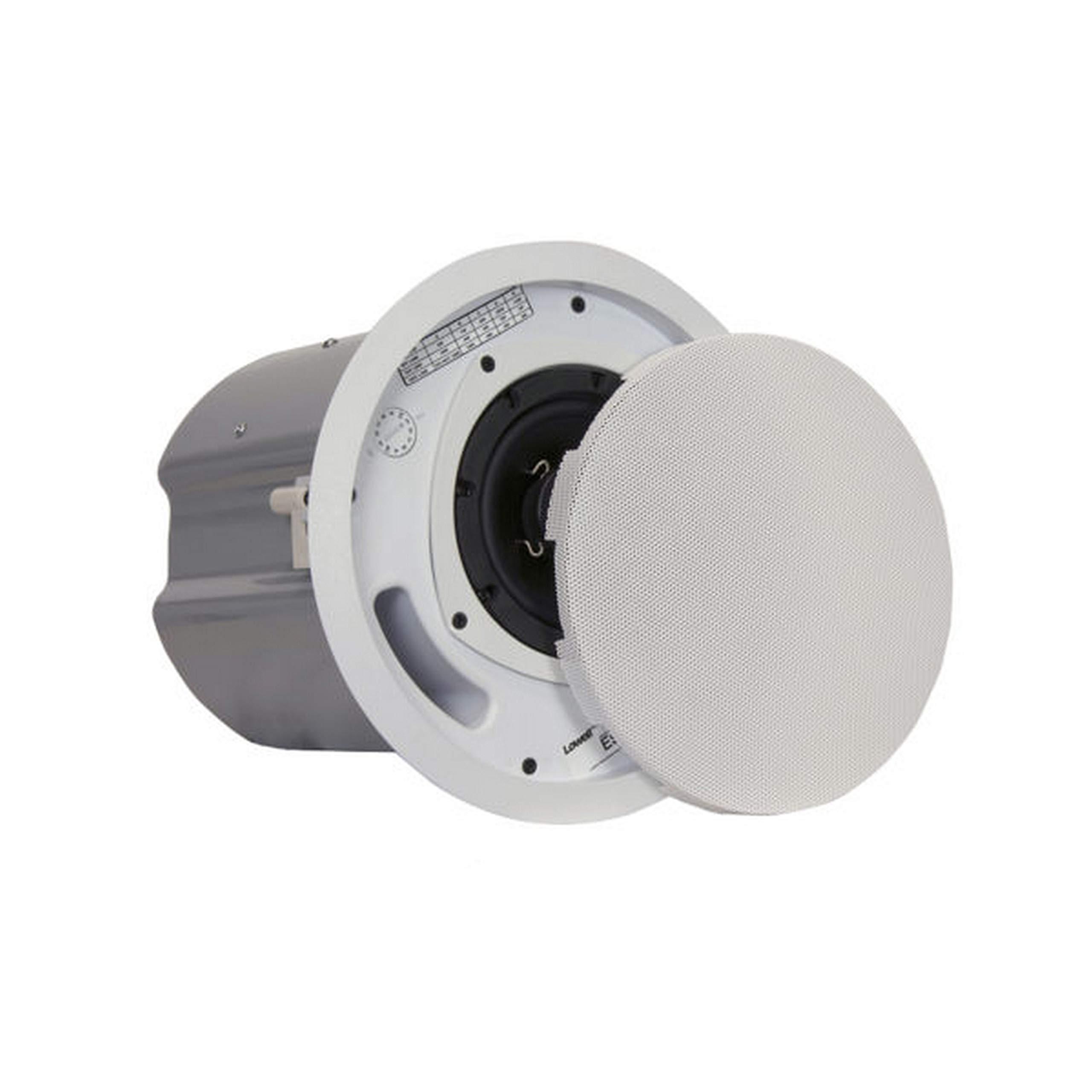

  • Grille: Press-fit grille with scrim, pull-tool
  • Mounting Aids: Plastic paint shield for driver, C-ring and support rails
  • Note: The optional rough-in bridge for the 6-0.5-inch speaker will also work with this model (order ES-6-RIB separately)


Lowell ES-52T 5.25-Inch Coaxial Ceiling Speaker with Transformer, Grille, Enclosure, Mounting Ring/Rails; Coaxial Driver with High-Frequency Mylar Tweeter/Acoustic Lens; 16 W Transformer with Bypass

Model ES-52T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. This self-contained in-ceiling or in-wall speaker system with 5-1/4 inch coaxial driver has a high-frequency Mylar tweeter with acoustic lens to provide the kind of crisp, high-frequency response expected from high quality coaxial speakers

Key Features:
- Driver: 5.25 inches coaxial driver with high-frequency Mylar tweeter/acoustic lens
- Transformer: 16W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 8 ohm transformer bypass position
- Enclosure: Painted (grey) steel back-can with mounting dogs
- Grille: Press-fit grille with scrim, pull-tool
- Mounting Aids: Plastic paint shield for driver, C-ring and support rails
- Note: The optional rough-in bridge for the 6-0.5-inch speaker will also work with this model (order ES-6-RIB separately)

Specifications:
- Driver: 5.25-inch 30W coaxial
- Transformer: 16 W
- Overall Depth: 10.16 inches
- Overall Diameter: 9.84 inches
- Color: white
- Impedance: 8 ohms (nominal), 8.5 ohms at 508 Hz (min)
- Conical Dispersion Angle: 165 degrees conical at 2kHz octave (-6dB)
- Sensitivity (measured half space): 88.0 dB; Average Sensitivity: SPL at 1W/1M
- Shipping Weight: 11 lbs
