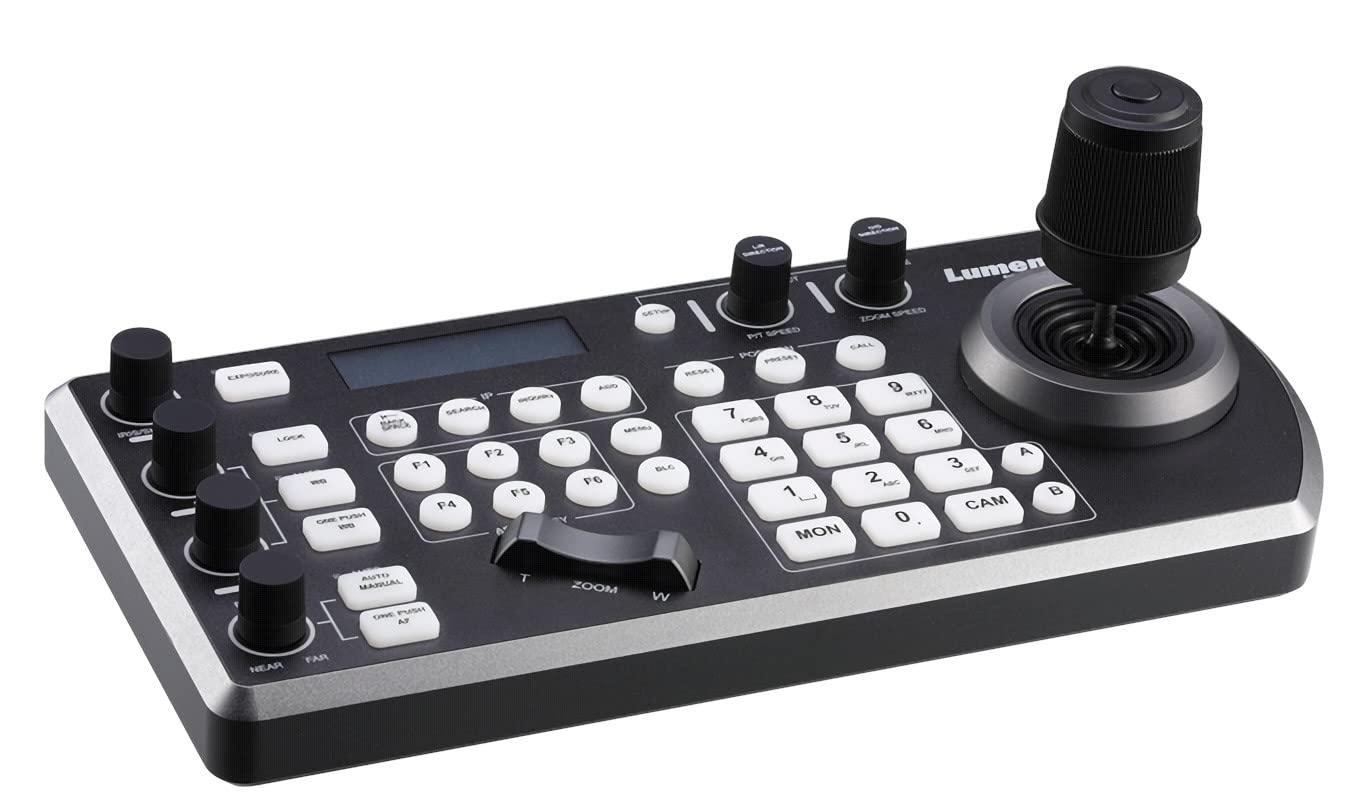

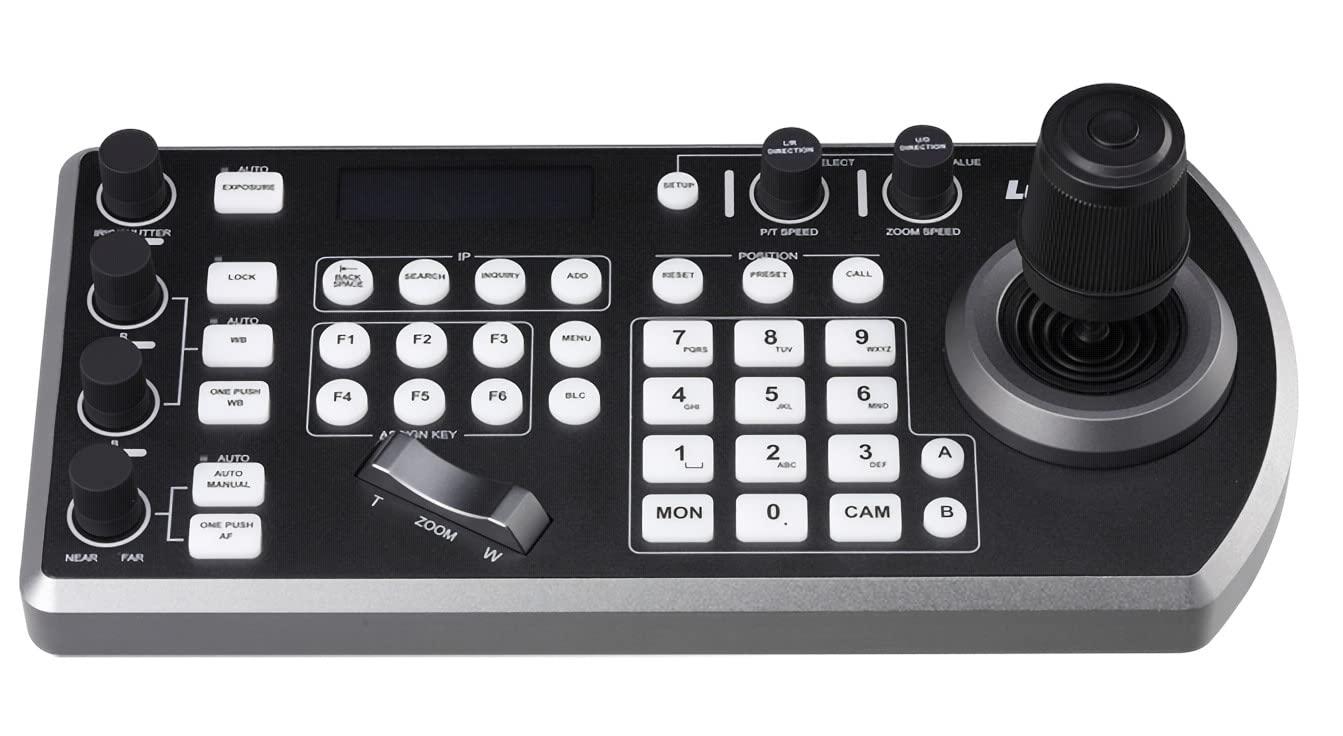

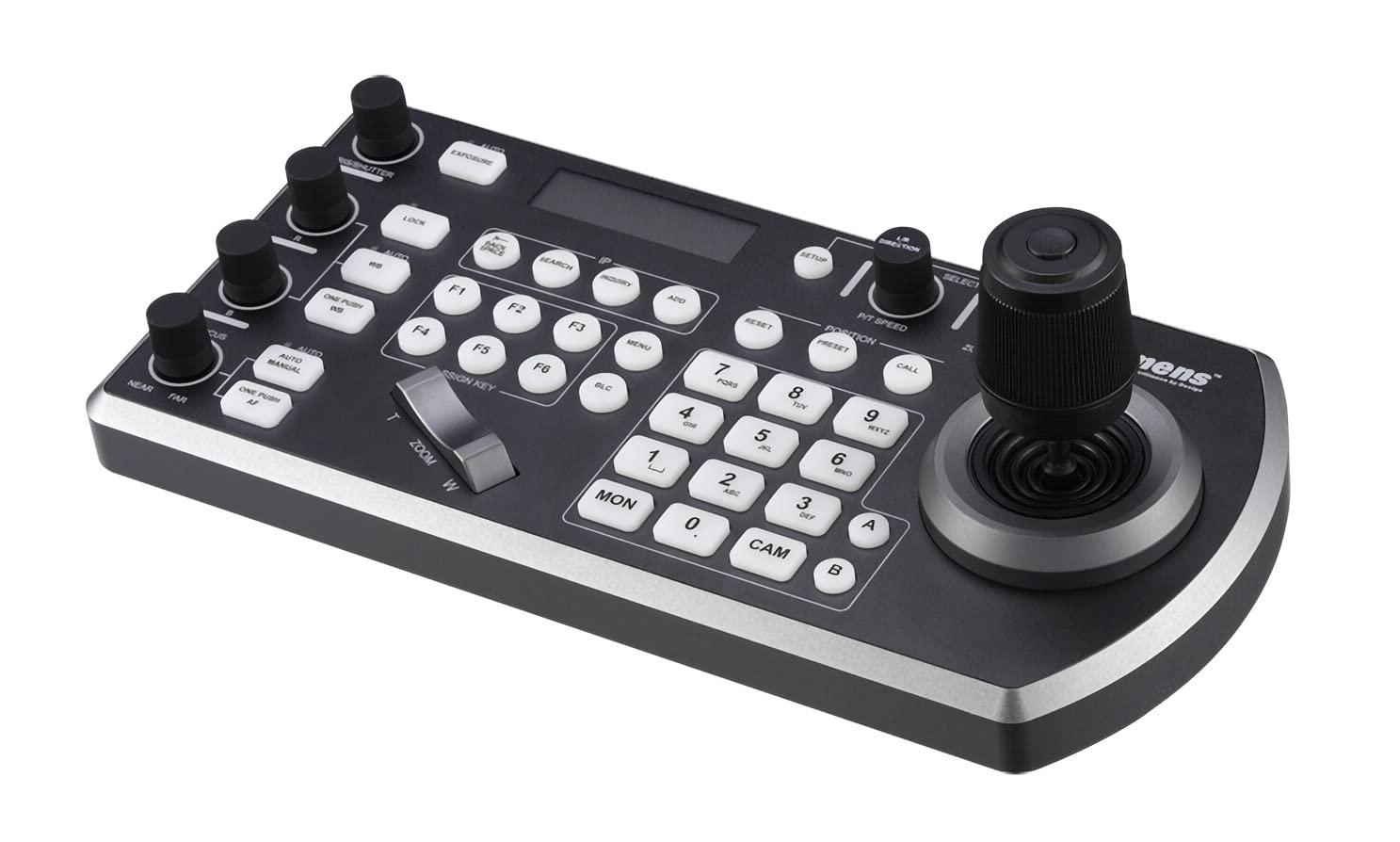

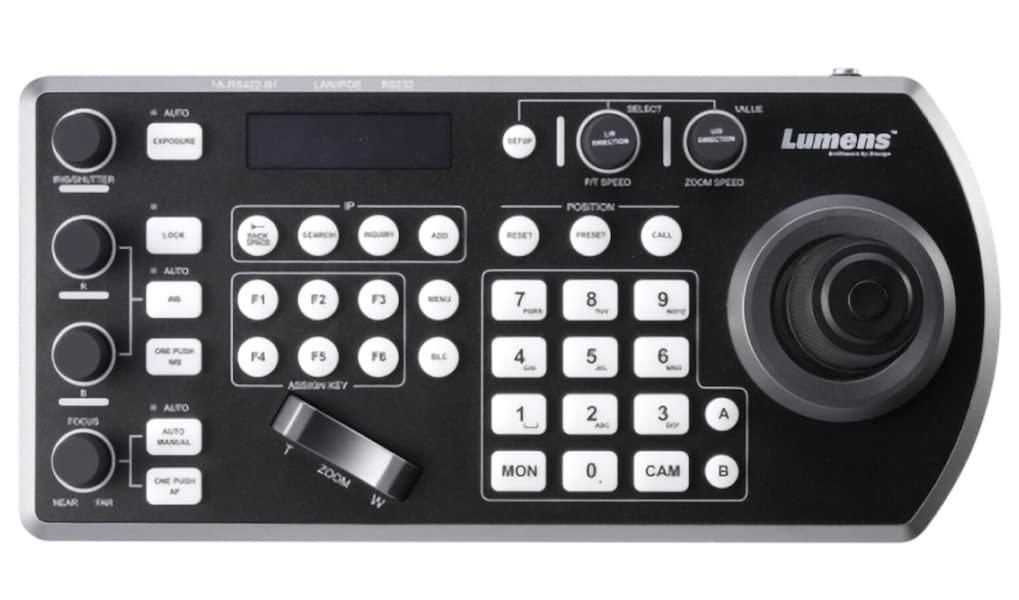

Lumens VS-KB30 Compact IP Camera Controller, Joystick for Pan/Tilt/Zoom, LCD Display, Backlight Keypad, DC12V / PoE, RS-232C / RS-422 x2 / Ethernet Control Interfaces

Lumens VS-KB30 Compact IP Camera Controller, Joystick for Pan/Tilt/Zoom, LCD Display, Backlight Keypad, DC12V / PoE, RS-232C / RS-422 x2 / Ethernet Control Interfaces

This camera controller features quick access functionality that allows instant adjustments to exposure, white balance, focus, PTZ speed and six assigned keys for frequently-needed camera functions. The camera controller is equipped with the RS-232C/RS-422/Ethernet communication interfaces with PoE for the transmission of power and control in one-cable. The VS-KB30 is applicable for education, broadcasting, events, house of worship and other environments

Key Features:
- Joystick for Pan / Tilt / Zoom
- Quick access control of exposure, white balance, focus, PTZ speed and 6 user-assignable keys

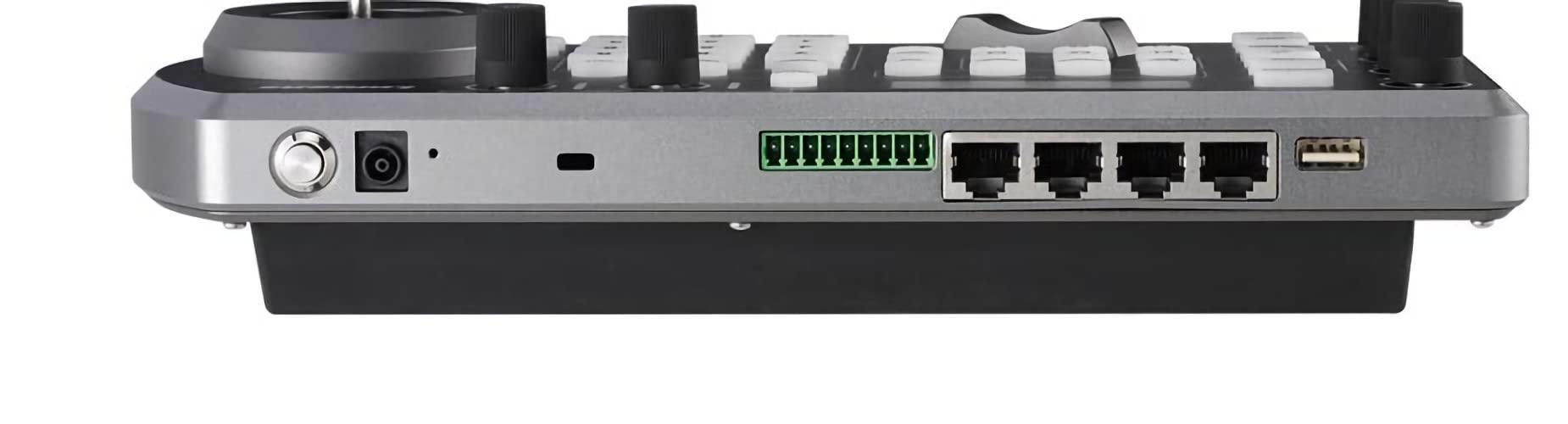

- The RS-232C / RS-422 x2 / Ethernet control interfaces allow long-distance communication
- Control up to total of 255 IP cameras on a single network with PoE support
- Compatible with NDI/HX

Specifications:
- Comm. Interface: RS-232, RS-422 x2, Ethernet
- Display: LCD
- Joystick: 4-axis (Pan / Tilt / Zoom)
- Speed Control: x2 (2 Knobs)
- Zoom Control: x1 (Zoom Seesaw Lever)
- Gain Control: R / B Gain (2 Knobs)
- Assign Button: x6
- Keypad with backlight: Yes
- Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
- Camera Address: 1 to 255
- Preset: 255
- Power: DC12V / PoE
- Power Consumption: PoE : 5W, DC In : 5W
- Dimensions: 10.94" x 5.19" x 3.91"
- Weight: 2.2 lb
