Description
- 2.5 Megapixel 1/3-inch CMOS Sensor
- 3.7mm Megapixel M12 Prime Lens installed (interchangeable)

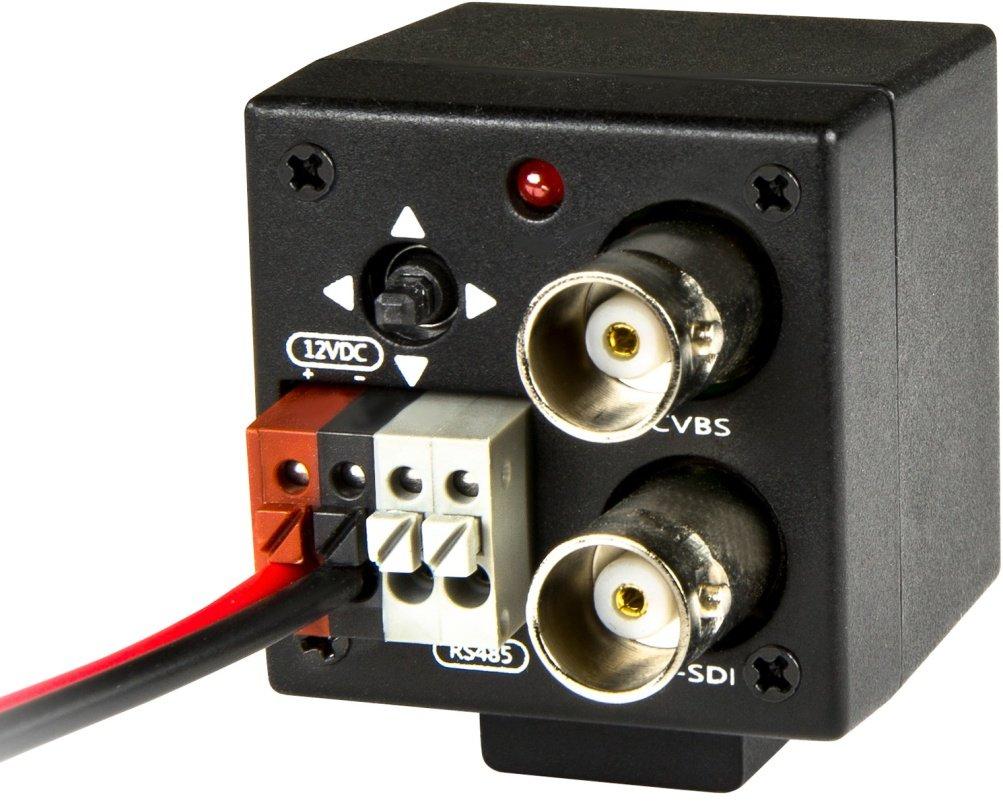

- 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
- Captures sharp & vivid color images at 0.2 lux (low light sensitive)
- OSD Menu Joystick, RS-485 connectable (Pelco/Visca)

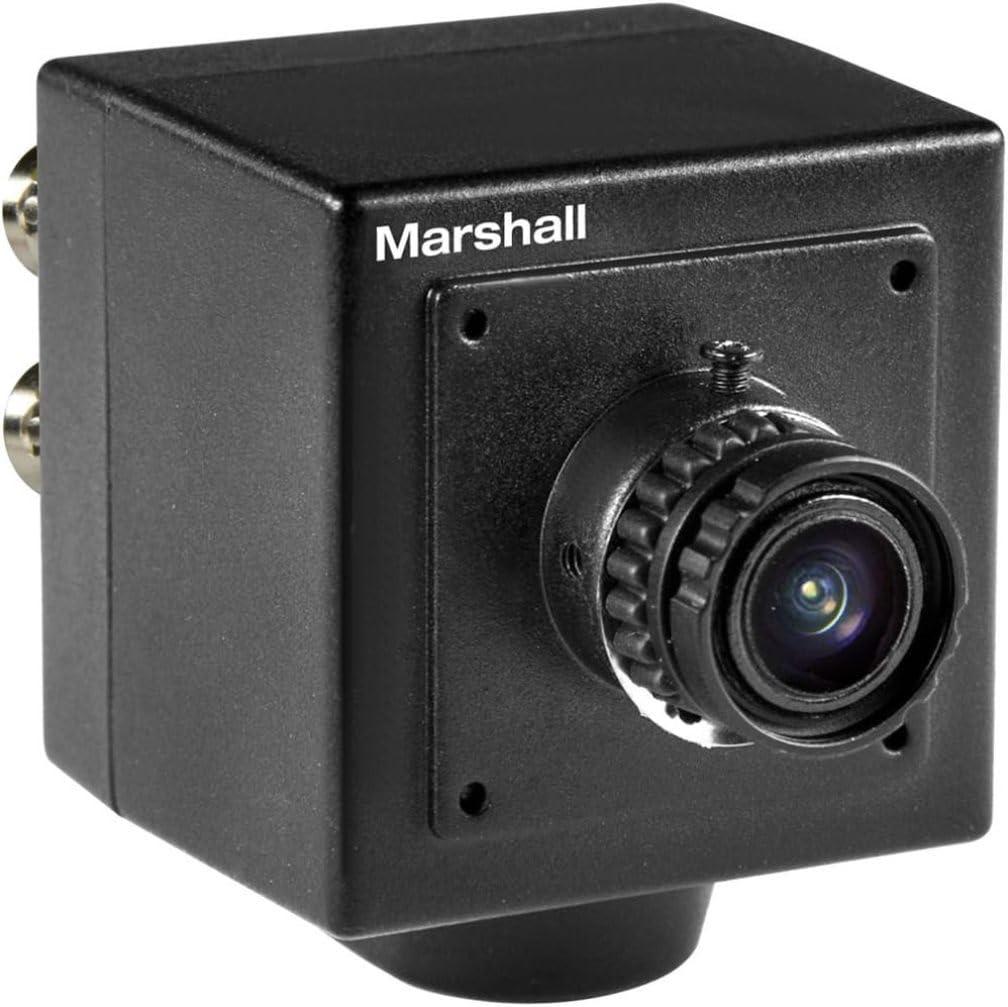

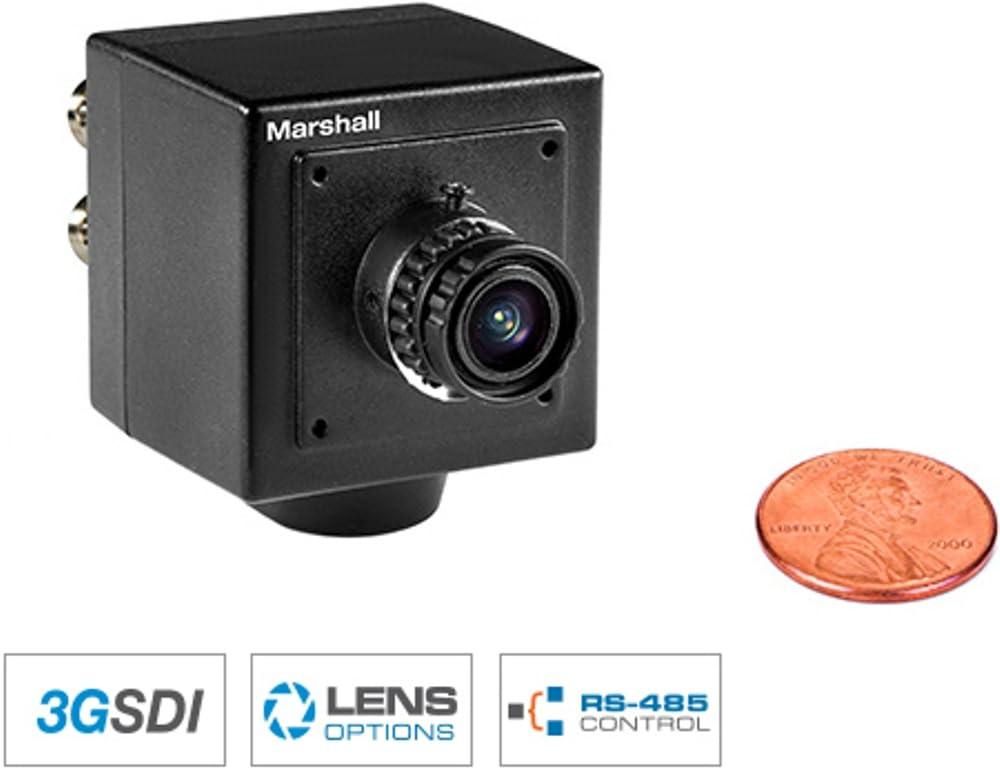

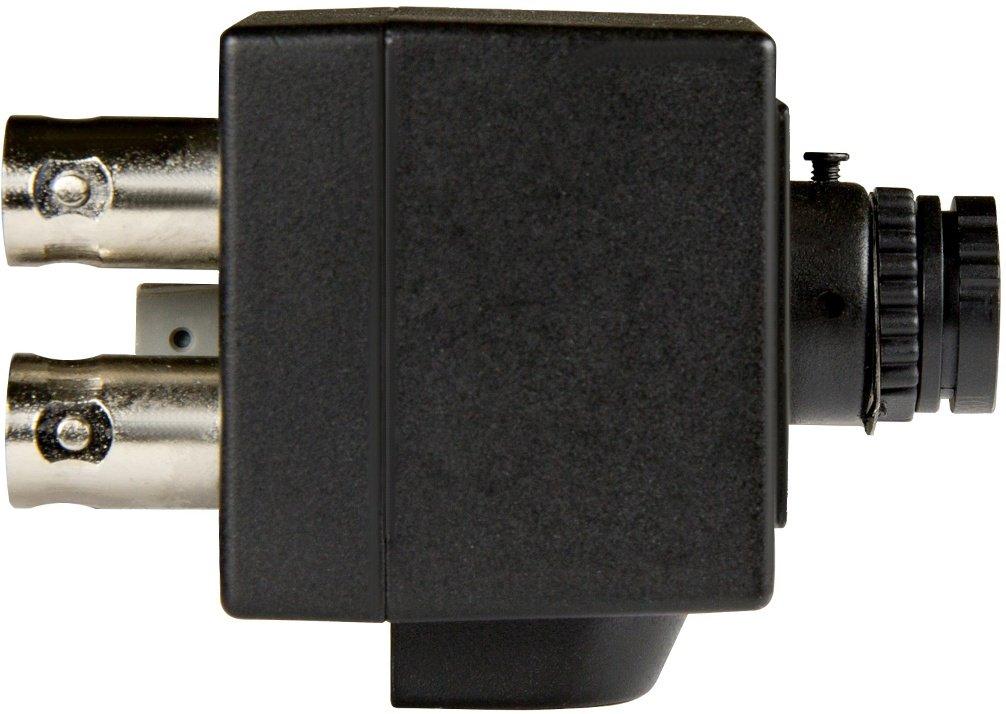

Marshall CV502-MB Full-HD 3G/HD-SDI 2.5MP Mini-Broadcast POV Camera (59.94/29.97 fps) with 3.7mm Lens, 2.5 Megapixel 1/3-inch CMOS Sensor, 16:9 Progressive Scanning System, Includes 12V Power Supply
Marshall Electronics 3rd Generation CV502-MB/M improves on all aspects of video performance. Utilizing a new state of the art 1/2.8-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes. New CV502-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.
Key Features
- 2.5 Megapixel 1/3-inch CMOS Sensor
- 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
- 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
- Captures sharp & vivid color images at 0.2 lux (low light sensitive)
- New WDR function supports high speed & high sensitivity to various light sources
- OSD Menu Joystick, RS-485 connectable (Pelco/Visca),
- Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
- Compatible with Marshall CV-RCP-V2 RCP Control Unit
- Includes 12V power supply in box
