Description
- 2.5 Megapixel 1/3-inch CMOS Sensor
- 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
- 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
- Hirose-style (I/O) connector contains: RS-485 connectors, 12V power connector & Audio TRS (Mono) input with Mic/Line-level selectable
- Captures sharp & vivid color images at 0.2 lux (low light sensitive)

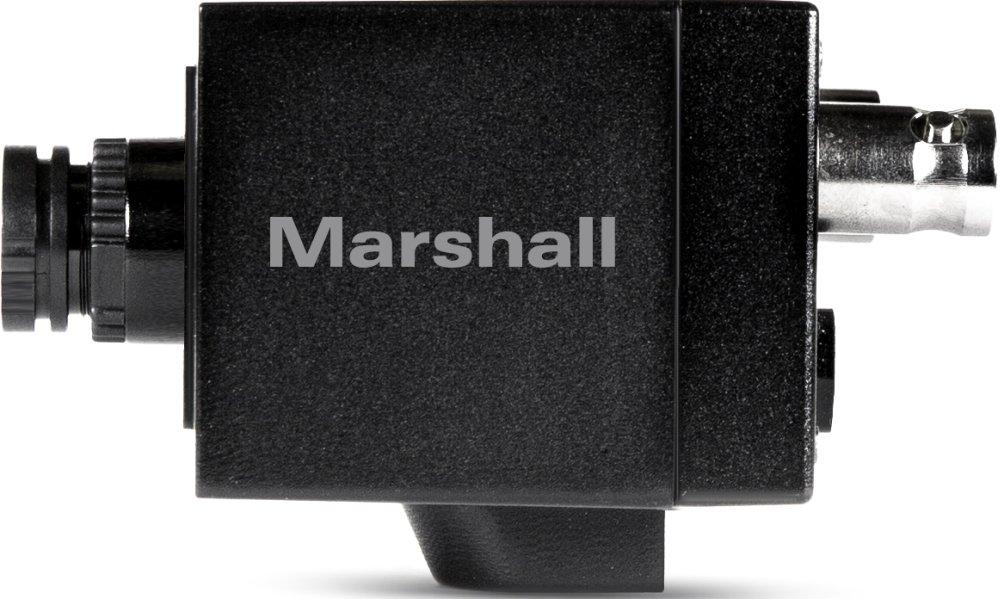

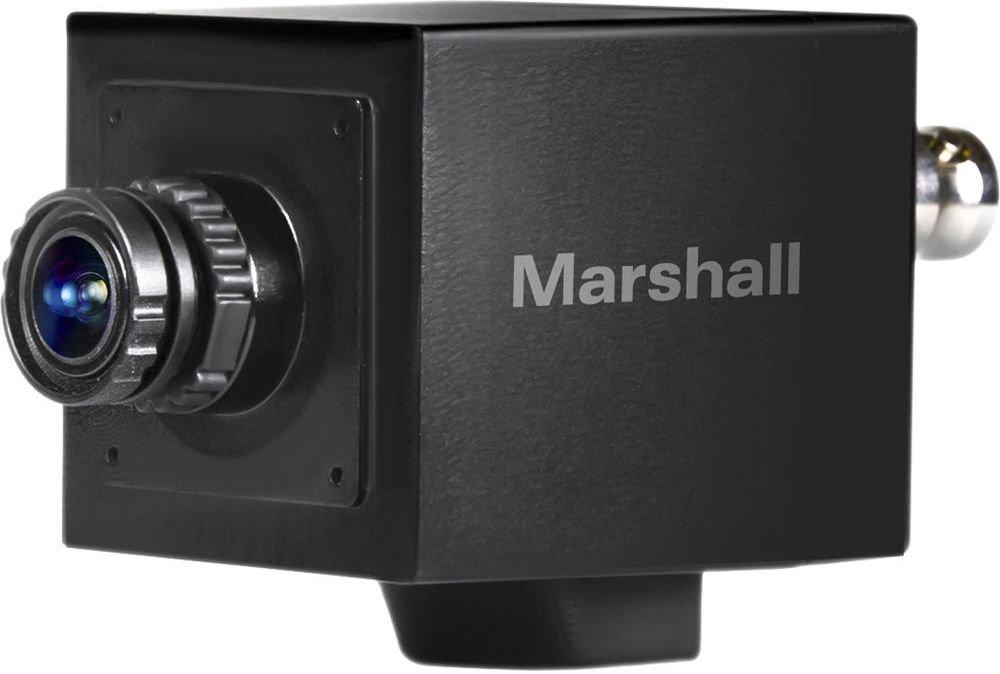

Marshall CV505-M Full-HD 3G/HD-SDI 2.5MP Mini-Broadcast POV Camera (50/60/25/30 fps) with 3.7mm 2MP Lens, 2.5 Megapixel 1/3-inch CMOS Sensor, Horizontal Resolution 1000TVL
Key features:
- 2.5 Megapixel 1/3-inch CMOS Sensor
- 3.7mm Megapixel M12 Prime Lens installed (interchangeable)

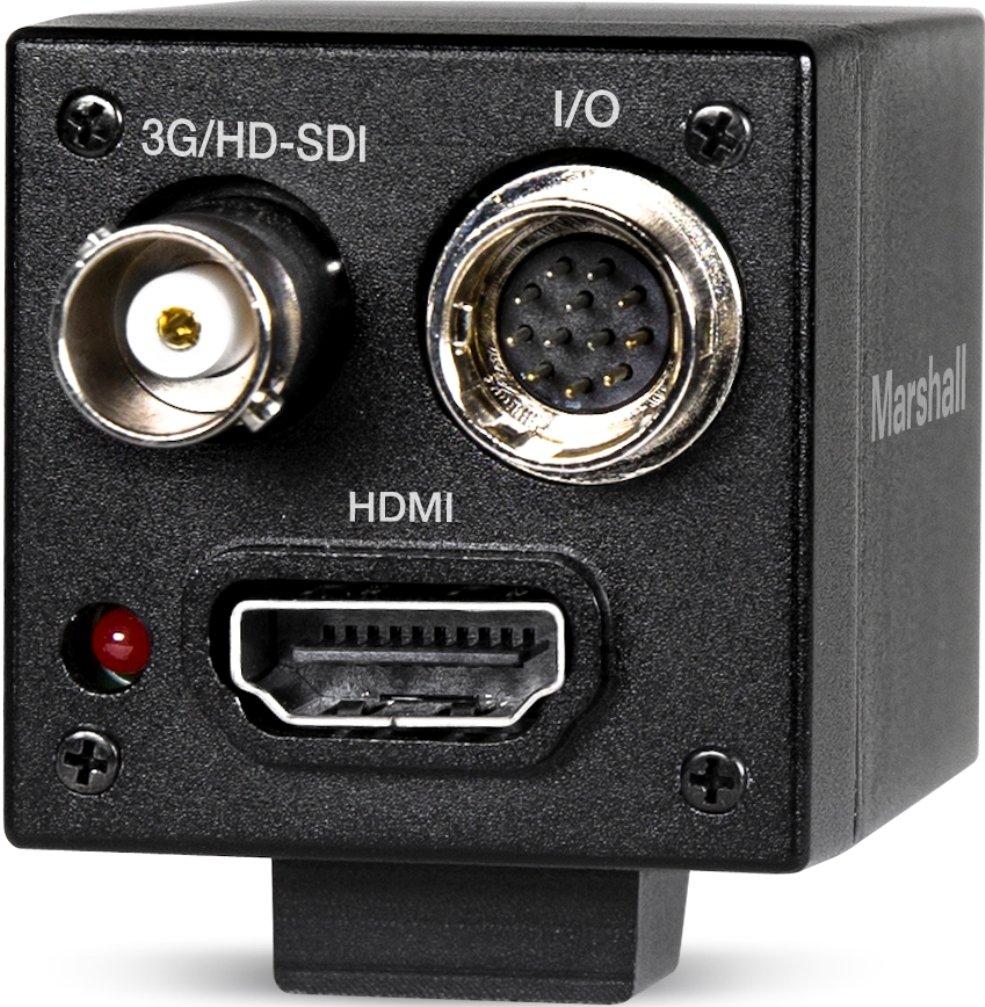

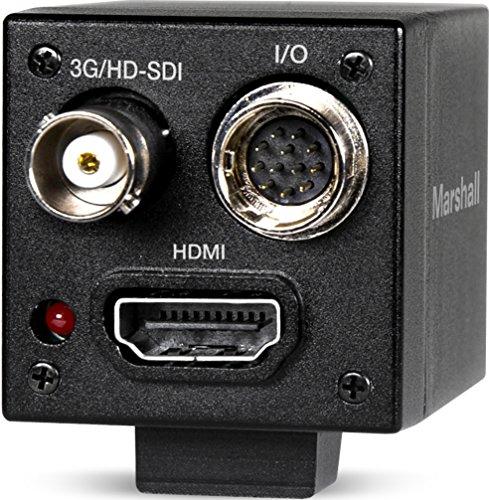

- 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel

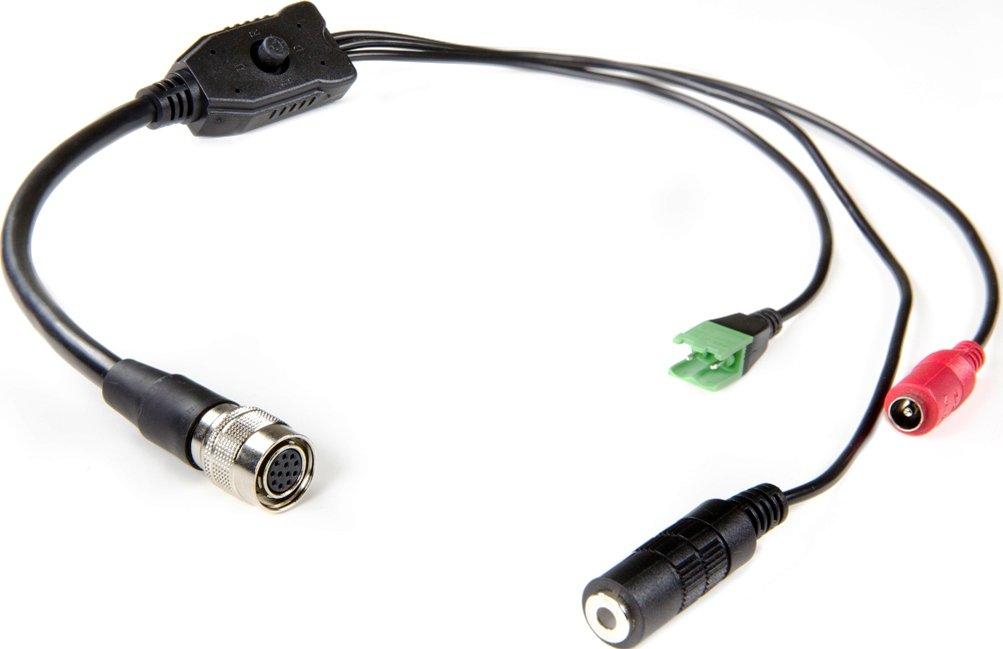

- Hirose-style (I/O) connector contains: RS-485 connectors, 12V power connector & Audio TRS (Mono) input with Mic/Line-level selectable
- Captures sharp & vivid color images at 0.2 lux (low light sensitive)
- New WDR function supports high speed & high sensitivity to various light sources
- TRS audio input with Line/Mic-level selectable depending on input device, unbalansed Mono (L/R mixed)
- OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
- Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
- Includes 12V power supply in box
Specifications
- Image sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
- Scanning system: 16:9 Progressive
- Sync. System: Internal
- Effective pixel: 1920(H) x 1080(V)
- Min. illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)
- Horizontal resolution: 1000TVL
- Lens: CV505 comes with 3.7mm (M12 mount) - interchangeable, CV345 (CS/C mount w/ DC-Auto Iris) - variable lens options
- Back Light Compensation: WDR (Wide Dynamic Range) / BLC (Back Light Compensation), HLC (High Light Compensation)
- Exposure: Auto / manual
- White Balance Auto (3,000~8,000K) / ATW(1,900~11,000K) / Manual
- Electronic shutter: NTSC: 1/30~1/30000
- (HDMI type A female): HDMI 1.3 compliant
- Operation temperature: -50 ~ 122 F
- Power input: 12VDC (7V to 15VDC)
- Power consumption: Max 6W
- Dimensions(WxHxD): 1.42"X1.18" X 1.77"
- Weight (Net): 0.31 lbs
