Description

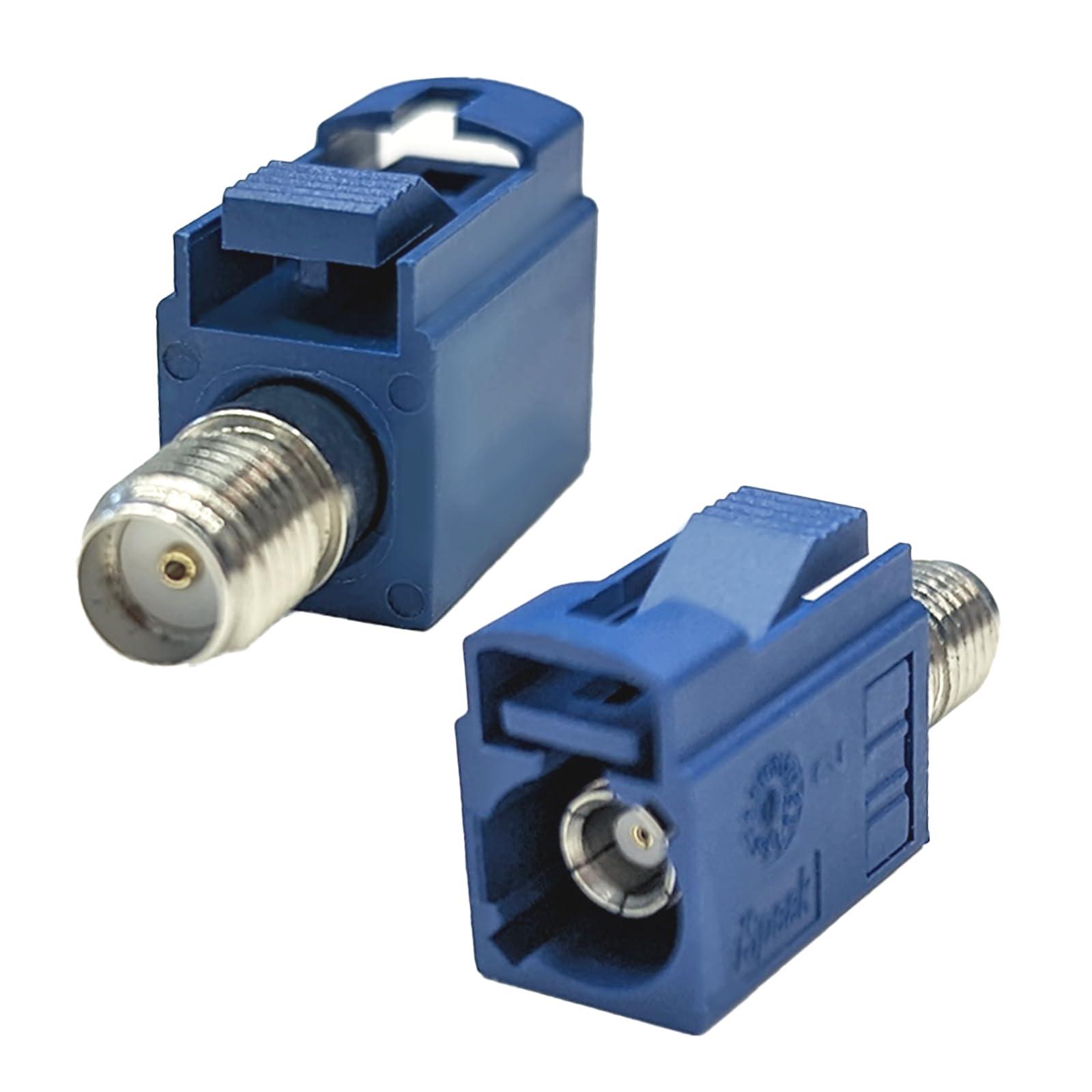

- Item Type:FAKRA C to SMA Female Inter Series Adapters| Color: blue | Impedance: 50 Ohm. 1 purchase equals to 1 connector.

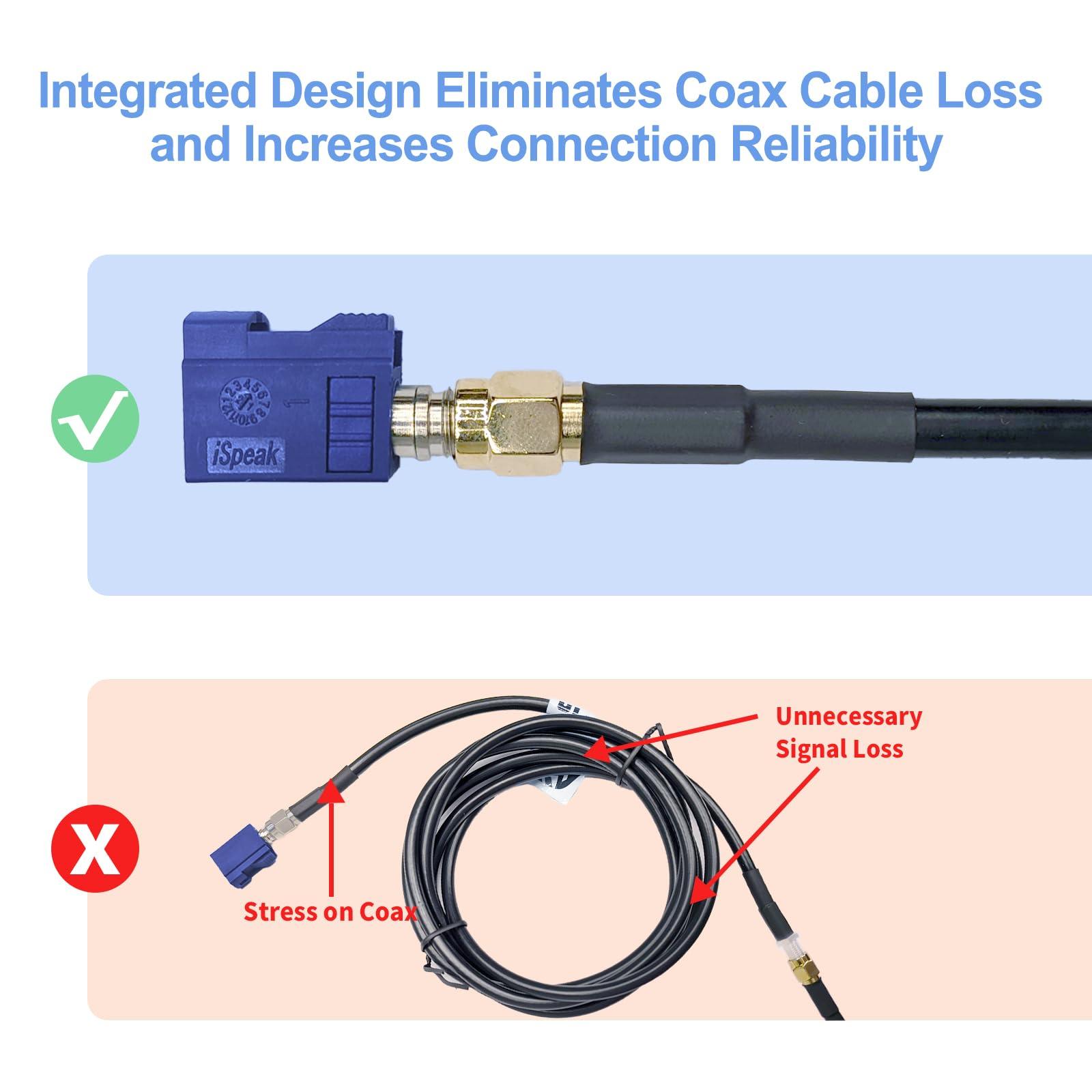

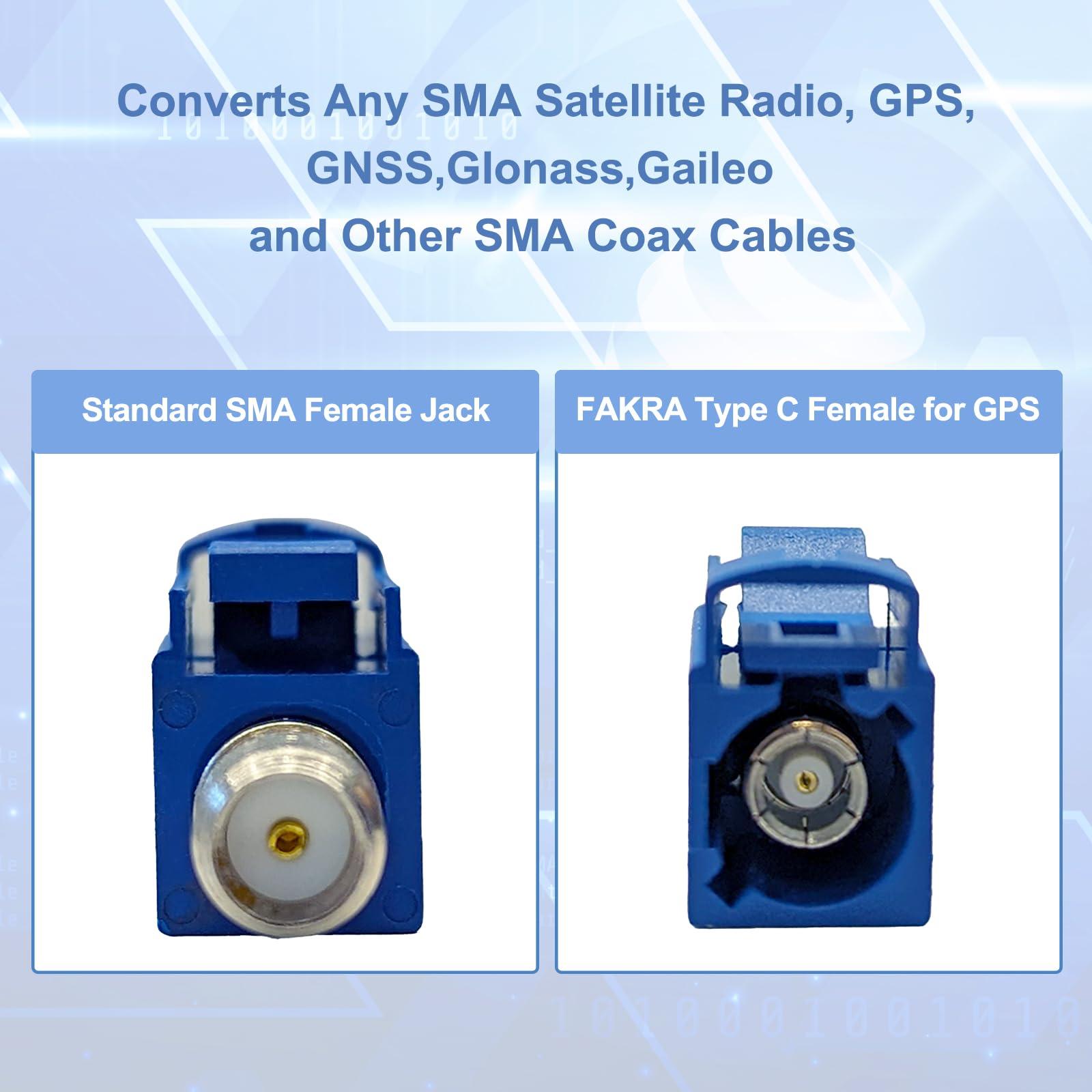

- PREMIUM QUALITY ADAPTER:plastic shell and outer screw inner hole connector .Converts Any SMA Satellite Radio, GPS, Multi-function antennas,Bluetooth and Other SMA Coax Cables. It will be a professional, durable accessory!

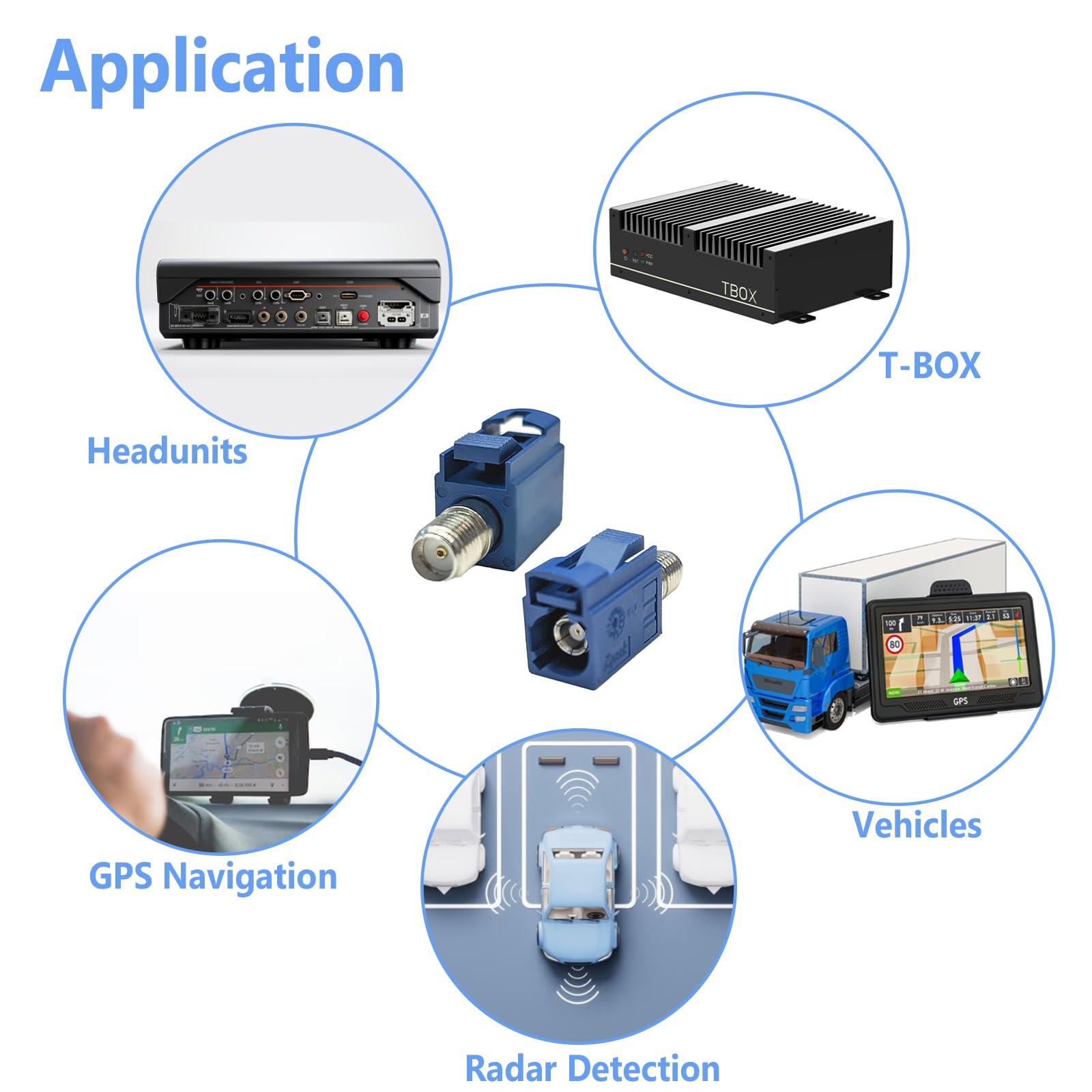

- Multiple applications: Use for 4G/5G vehicle modems and routers, cars, trucks, GPS navigation, safe driving assistance systems, reverse imaging, radar detection, aerospace, communications, deep-sea ships, electronic countermeasures systems, transportation tracks, drones, entertainment systems, etc.

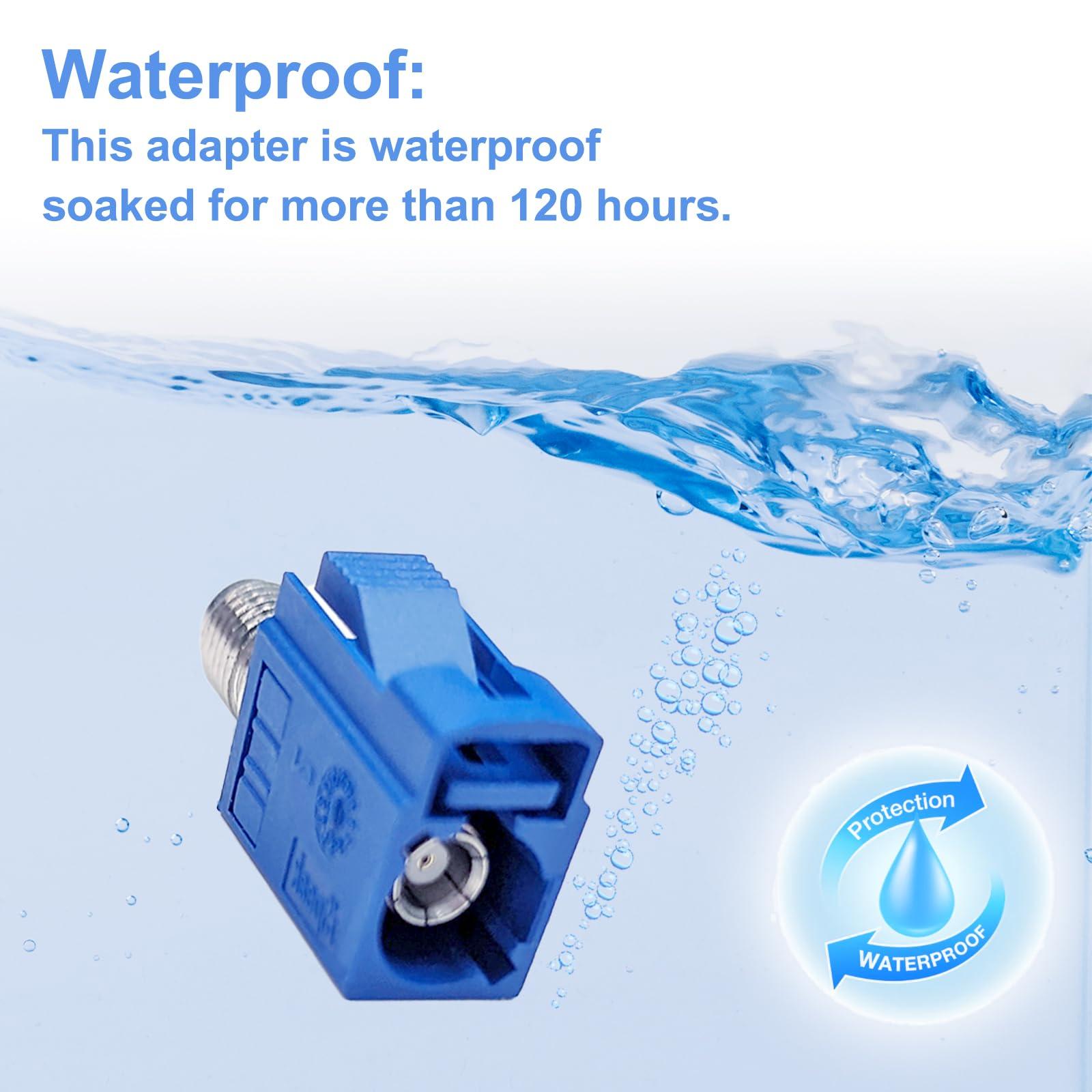

- WATERPROOF: This adapter is Waterproof:ISO20653 IP69K; Submersion over 120 hours.
- 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services.If you have any question, please tell us and if the good is with any quality issue, we're happy to offer you a new one!
ITEM ID: fakra c female to sma female
Electrical characteristic
Impedance:50 Ohm. 1 purchase equals to 1 connector.
Rated voltage:60V DC
Operating voltage:335Volts rms
Insulation resistance:1000M Ohm Min
Voltage resistance:500Volts rms
Current:1A Max
Inner conductor contact resistance:5m Ohm Max
External conductor contact resistance:5m Ohm Max
Standing wave ratio/Echo loss:0-3GHz<1.5,3-6GHz<1.58
Code: C
Gender: Female
Color: Blue
Connector Body Style: Straight
Mechanical property
Durability:50 Cycles Min
Insertion force:30N Max
Drawing force:2N Min
Retaining force of clip:100N Min
Anti-misinsertion efficiency:40N Min
Shell: Nylon PA66,PBT
Outer conductor: brass, zinc alloy
Inner conductor: phosphor copper
Insulator: Iron dragon
Environmental characteristics
Application temperature-40C to +105C
Thermal shock:-40Cto +85C,100cycles
Vibration and mechanical shock:Random,5-10ms,35Gs,1/2sine
Temperature,humidity cycle:40 Cycles, 8 Hrs/Cycle
Waterproof:ISO20653 IP69K; Submersion over 120 hours
RoHS:Conform to

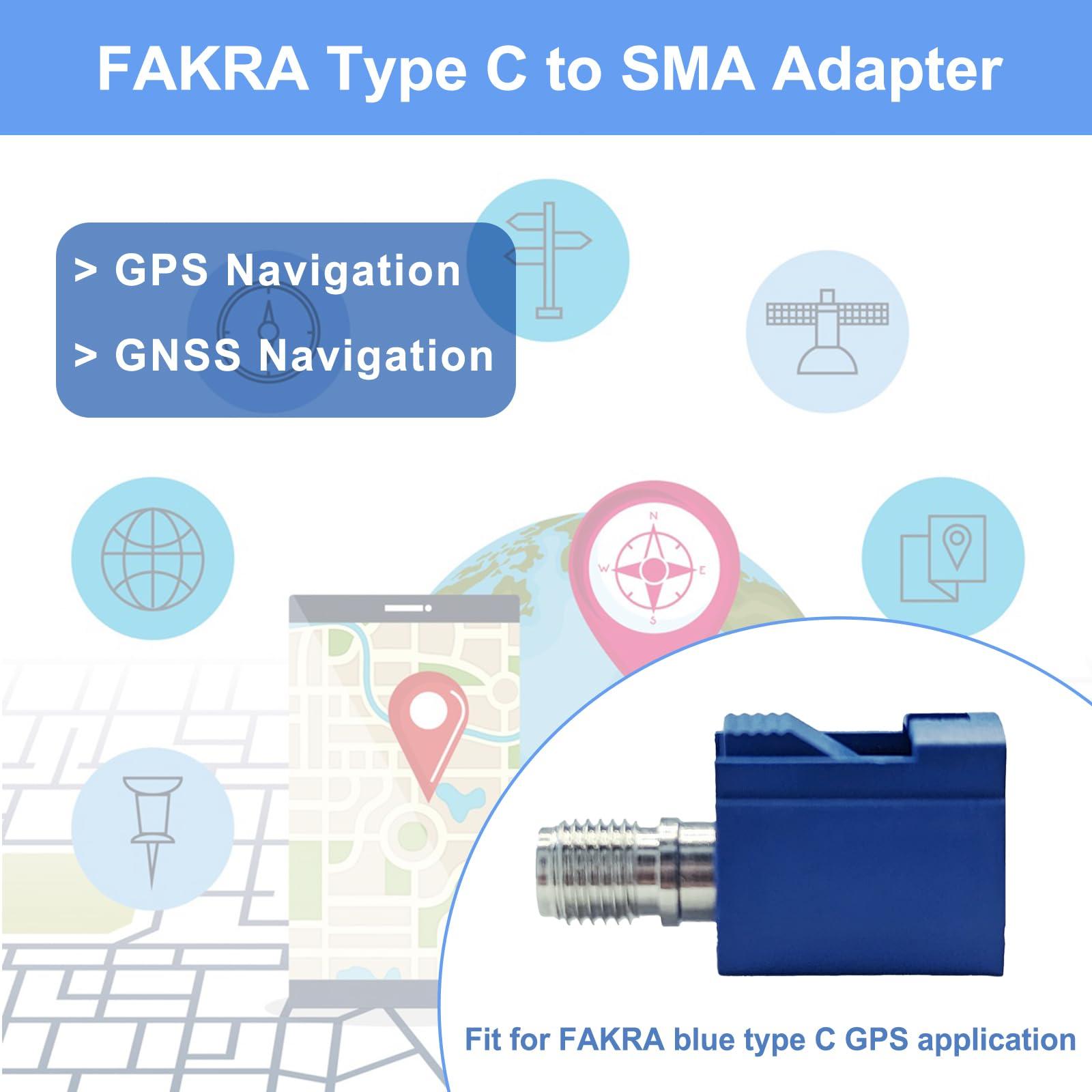

Applications:GPS navigation system,FM, Satellite Radio, GPS, Multi-function antennas,Bluetooth and Other SMA Coax Cables.
