Description
- Primary output voltage (vdc): 12
- Output current (a): 1.5
- Maximum output power (w): 18
- Family: GST18U
- Input voltage (vac): 85 to 264

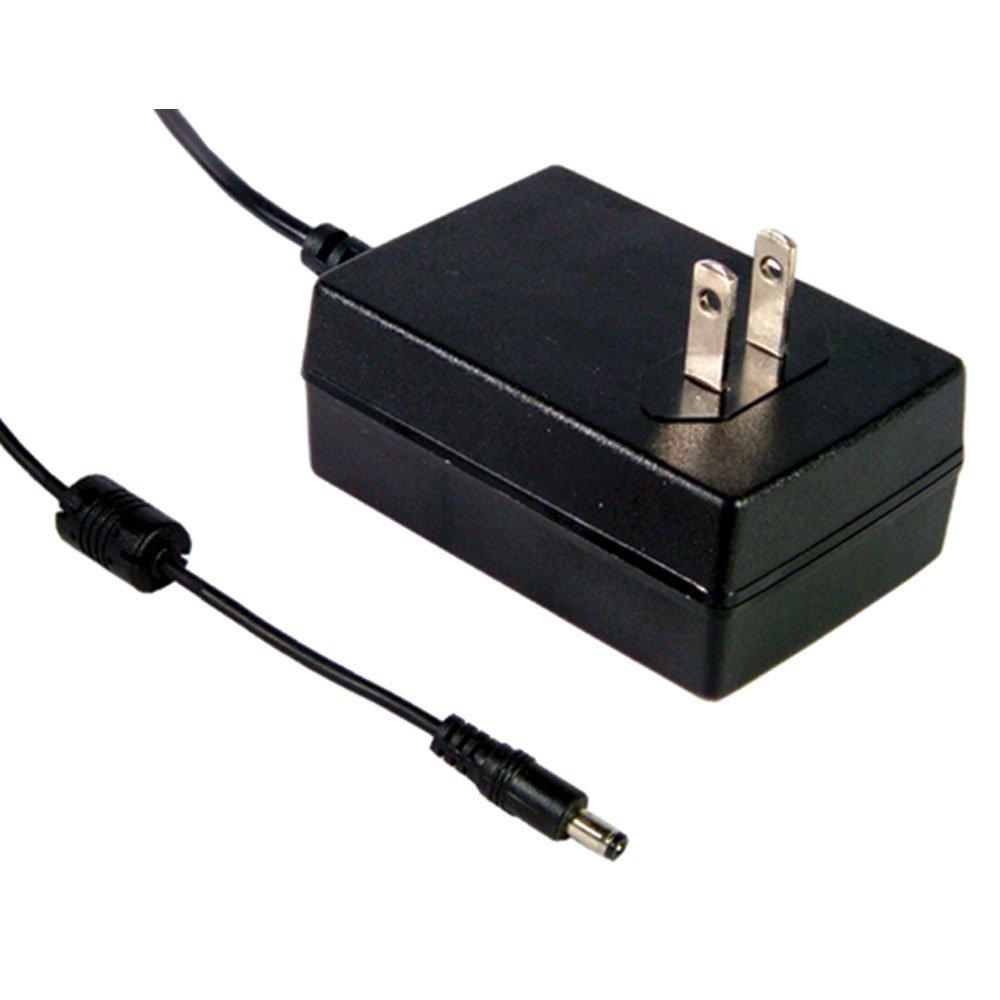

18 Watt 12V 1.5A AC-DC High Reliability Industrial Adaptor 12 Volts 1.5 Amps GST18U is a highly reliable, 18W wall-mounted style single-output green adaptor series. This product is a class II power unit (without FG), equipped with a 2-Pin standard USA AC power plug, adopting the input range from 85 VAC to 264 VAC. With extremely low no-load power consumption below 0.075W, GST18U is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save the energy when in operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST18U is certified for the international safety regulations. Features Universal AC input / Full range 2 pole USA plug No load power consumption Energy efficiency Level VI Comply with EISA 2007/DoE and NRCan Class II power (without earth pin) Protections: Short circuit / Overload / Over voltage Fully enclosed plastic case Pass LPS High operating temperature up to +70C LED indicator for power on 3 year warranty Detailed Specifications: Primary Output Voltage (VDC): 12 Output Current (A): 1.5 Maximum Output Power (W): 18 Family: GST18U Input Voltage (VAC): 85 to 264 Input Frequency: 47 to 63 Maximum Input Current (A): 0.5 Output Connector Type: Cylindrical Female Output Connector Diameters: 2.1mm x 5.5mm Polarity: Center Positive Number of Outputs: 1 Product Type: AC to DC Power Supply MFR Product Family: GST18U Efficiency (%): 86 Minimum Isolation Voltage: 4242V Operating Temperature-Min (Cell): -30 Operating Temperature-Max (Cell): 70 Length (inch): 3.1 Width (inch): 2.1 Height (inch): 1.3 (more.).
